ST-NAUD2ENC Dante Audio Encoder | 2CH Analog Audio Encoder
- Black
- DC-powered
- Metal
- Ethernet
- Built-in
- PCM
- Ethernet
- Wired
- 24-bit
Specifications
ST-NAUD2ENC Dante Audio Encoder is a professional 2-channel analog audio encoder that converts balanced and unbalanced analog audio into Dante® digital audio for reliable network transmission. It supports PoE, AES67 RTP, 24-bit audio processing and low-latency performance for professional AV installations.
The ST-NAUD2ENC Dante Audio Encoder is ideal for conference rooms, auditoriums, broadcast studios, educational facilities and commercial AV systems requiring reliable analog-to-Dante audio conversion.
Features
☆ Analog audio input supports balanced/unbalanced audio input (unbalanced: connect to "+" and "GND")
☆ Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
☆ Dante solution supports AES67 RTP audio transmission
☆ Audio input supports 3-level gain adjustment: +18dBu, 0dBu (default) and -10dBV
☆ Supports DC 12V power supply and PoE function (IEEE 802.3af Class 0)
The ST-NAUD2ENC Dante Audio Encoder supports balanced and unbalanced analog audio input, selectable gain adjustment, AES67 RTP compatibility, PoE power and seamless integration with Dante Controller for flexible network audio deployment.
Package Contents
① 1x Dante 2CH Analog Audio Encoder
② 1x 6pin-3.81mm Phoenix Connector (male)
③ 1x 2pin-3.81mm Phoenix Connector (male)
④ 1x User Manual
Specifications
| Technical | |
| Network Bandwidth | 100M |
| Audio Format | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Transmission Distance | 100m (CAT6/6A) |
| Control Method | Dante Controller |
| Connection | |
| Input | 1x PWR [2pin-3.81mm phoenix connector, DC 12V] 1x AUD [6pin-3.81mm phoenix connector, balanced/unbalanced 2CH analog audio] |
| Output | 1x DANTE [RJ45 connector, PoE] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 120mm [W] × 47mm [D] × 26mm [H] |
| Weight | 186g |
| Power Supply | DC input: 12V PoE input: IEEE 802.3af Class 0 |
| Power Consumption (Max) | 1.2W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~90% (relative humidity, non-condensing) |
Designed for professional audio networking, the ST-NAUD2ENC Dante Audio Encoder delivers stable digital audio transmission, high-quality sound performance and simple installation in Dante-enabled AV environments.
Operation Controls and Functions

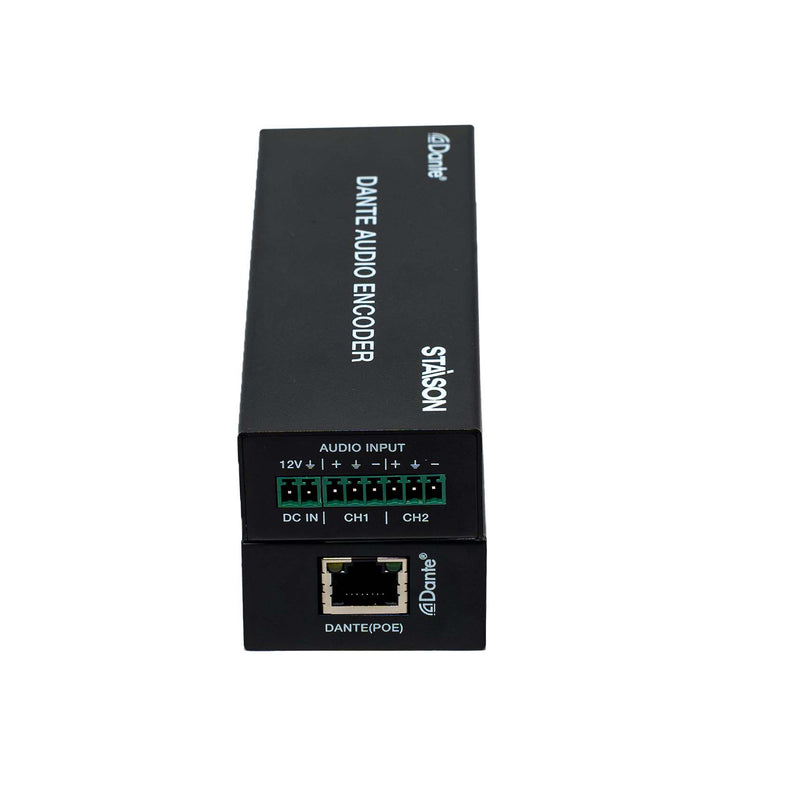

Panel Overview
| No. | Name | Function Description |
|---|---|---|
| 1 | DC IN | DC 12V power input port. |
| 2 | AUDIO INPUT (CH1/CH2) | 2 channel analog audio input ports, supporting balanced and unbalanced audio. |
| 3 | DANTE (PoE) | Dante digital audio output port. Connect to the network switch through RJ45 cable, supporting PoE PD power supply. Green LINK LED is always on after normal connection. Yellow DATA LED flashes when there is data transmission. |
| 4 | GAIN Switch | 3-position DIP switch for audio input gain adjustment. Positions: +18dBu, 0dBu (default), -10dBV. |
Application Example
ST-NAUD2ENC Dante Audio Encoder is a professional 2-channel analog audio encoder that converts balanced and unbalanced analog audio into Dante® digital audio for reliable network transmission. It supports PoE, AES67 RTP, 24-bit audio processing and low-latency performance for professional AV installations.
The ST-NAUD2ENC Dante Audio Encoder is ideal for conference rooms, auditoriums, broadcast studios, educational facilities and commercial AV systems requiring reliable analog-to-Dante audio conversion.
Features
☆ Analog audio input supports balanced/unbalanced audio input (unbalanced: connect to "+" and "GND")
☆ Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
☆ Dante solution supports AES67 RTP audio transmission
☆ Audio input supports 3-level gain adjustment: +18dBu, 0dBu (default) and -10dBV
☆ Supports DC 12V power supply and PoE function (IEEE 802.3af Class 0)
The ST-NAUD2ENC Dante Audio Encoder supports balanced and unbalanced analog audio input, selectable gain adjustment, AES67 RTP compatibility, PoE power and seamless integration with Dante Controller for flexible network audio deployment.
Package Contents
① 1x Dante 2CH Analog Audio Encoder
② 1x 6pin-3.81mm Phoenix Connector (male)
③ 1x 2pin-3.81mm Phoenix Connector (male)
④ 1x User Manual
Specifications
| Technical | |
| Network Bandwidth | 100M |
| Audio Format | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Transmission Distance | 100m (CAT6/6A) |
| Control Method | Dante Controller |
| Connection | |
| Input | 1x PWR [2pin-3.81mm phoenix connector, DC 12V] 1x AUD [6pin-3.81mm phoenix connector, balanced/unbalanced 2CH analog audio] |
| Output | 1x DANTE [RJ45 connector, PoE] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 120mm [W] × 47mm [D] × 26mm [H] |
| Weight | 186g |
| Power Supply | DC input: 12V PoE input: IEEE 802.3af Class 0 |
| Power Consumption (Max) | 1.2W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~90% (relative humidity, non-condensing) |
Designed for professional audio networking, the ST-NAUD2ENC Dante Audio Encoder delivers stable digital audio transmission, high-quality sound performance and simple installation in Dante-enabled AV environments.
Operation Controls and Functions
Panel Overview
| No. | Name | Function Description |
|---|---|---|
| 1 | DC IN | DC 12V power input port. |
| 2 | AUDIO INPUT (CH1/CH2) | 2 channel analog audio input ports, supporting balanced and unbalanced audio. |
| 3 | DANTE (PoE) | Dante digital audio output port. Connect to the network switch through RJ45 cable, supporting PoE PD power supply. Green LINK LED is always on after normal connection. Yellow DATA LED flashes when there is data transmission. |
| 4 | GAIN Switch | 3-position DIP switch for audio input gain adjustment. Positions: +18dBu, 0dBu (default), -10dBV. |
Application Example
