ST-NEB100AT SDVoE Transceiver | Copper/Fiber Combo Box

ST-NEB100AT SDVoE Transceiver is a professional SDVoE-compliant AV over IP transceiver with a Copper/Fiber Combo Box, designed to deliver uncompressed 4K@60Hz 4:4:4 video, zero-frame latency, and high-performance signal distribution over standard 10G copper or fiber networks. The ST-NEB100AT SDVoE Transceiver supports Encoder and Decoder modes in a single device, HDMI 2.0b, HDCP 2.2, HDR10, Dolby Vision, USB KVM, RS-232, IR, CEC, Video Wall, MultiView, and seamless switching. Designed for conference rooms, command centers, broadcast studios, digital signage, education, control rooms, and commercial AV installations, the ST-NEB100AT SDVoE Transceiver provides reliable AV over IP performance with flexible deployment and simple system integration. The ST-NEB100AT SDVoE Transceiver also supports H.264/H.265 secondary streaming, 10G Copper and SFP+ Fiber connectivity, PoE, Web GUI control, and advanced AV management for professional installations.

ST-NEB100AT SDVoE Transceiver delivers enterprise-grade AV over IP performance with zero-frame latency, uncompressed 4K60 video transmission, and flexible Encoder/Decoder functionality. The ST-NEB100AT SDVoE Transceiver is designed for professional AV installations requiring reliable signal extension, Video Wall processing, MultiView, USB KVM, RS-232, IR control, and seamless switching. Built with advanced SDVoE technology, the ST-NEB100AT SDVoE Transceiver ensures stable operation across conference rooms, command centers, education, broadcasting, digital signage, and commercial AV environments. System integrators rely on the ST-NEB100AT SDVoE Transceiver for its dependable performance, flexible deployment, and professional-grade AV distribution over 10G copper and fiber networks.

ST-NEB100AT SDVoE Transceiver is engineered for professional AV over IP applications requiring zero-frame latency, uncompressed 4K60 video, and reliable 10G network performance. The ST-NEB100AT SDVoE Transceiver supports flexible Encoder and Decoder operation, Video Wall, MultiView, USB KVM, HDR, Dolby Vision, RS-232, IR, and seamless switching. Designed for enterprise AV installations, the ST-NEB100AT SDVoE Transceiver delivers dependable signal distribution over copper and fiber networks. System integrators choose the ST-NEB100AT SDVoE Transceiver for conference rooms, command centers, education, broadcasting, and digital signage. With advanced SDVoE technology, the ST-NEB100AT SDVoE Transceiver provides exceptional image quality, flexible deployment, and professional-grade AV performance. The ST-NEB100AT SDVoE Transceiver also supports PoE, Web GUI control, H.264/H.265 secondary streaming, and centralized AV management.

Features

☆ HDMI 2.0b and HDCP 2.2 compliant, 18Gbps video bandwidth, up to 4K@60Hz 4:4:4
☆ Flexible transceiver — Encoder or Decoder mode selectable via front panel button or API
☆ Copper (10G BASE-T) and Fiber (SFP+) ports in a single box with automatic port detection (priority configurable)
☆ Encoder supports HDMI loop out; Decoder HDMI output supports video scaling
☆ HDR10, Dolby Vision, HLG, 3D support
☆ LPCM 2/5.1/7.1, Dolby Digital, Dolby Digital+, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X
☆ Zero-Frame latency operating mode
☆ Signal extension, seamless switching, IP Matrix, Video Wall up to 9×9, MultiView up to 25 windows
☆ Flexible bidirectional analog audio routing between Encoder and Decoder
☆ Built-in H.264/H.265 Secondary Stream (SS) for preview on portable devices
☆ Secondary Stream VLAN tagging and parameter configuration
☆ Bi-directional IR and RS-232 control signal pass-through
☆ USB 2.0 KVM support and CEC routing control
☆ IR, RS-232, TCP/IP and Web GUI control
☆ Standard PoE supported (IEEE 802.3at PD device)
☆ Works with 10G managed network switch and IP Controller Box ST-NCTL100D

Package Contents

① 1x SDVoE Transceiver (Copper/Fiber Combo)
② 1x 12V IR Receiver Cable (1.5 metres)
③ 1x IR Blaster Cable (1.5 metres)
④ 1x 4pin-3.81mm Phoenix Connector
⑤ 1x 12V/2.5A Locking Power Adapter
⑥ 2x Mounting Ears
⑦ 4x Machine Screws (KM3×6)
⑧ 1x User Manual

Note: Three MAC address labels are on the back of the product. MAC 1 = SDVoE MAC address · MAC 2 = USB 2.0 MAC address · MAC 3 = Secondary Stream (SS) Module MAC address.

Specifications

Operation Controls and Functions

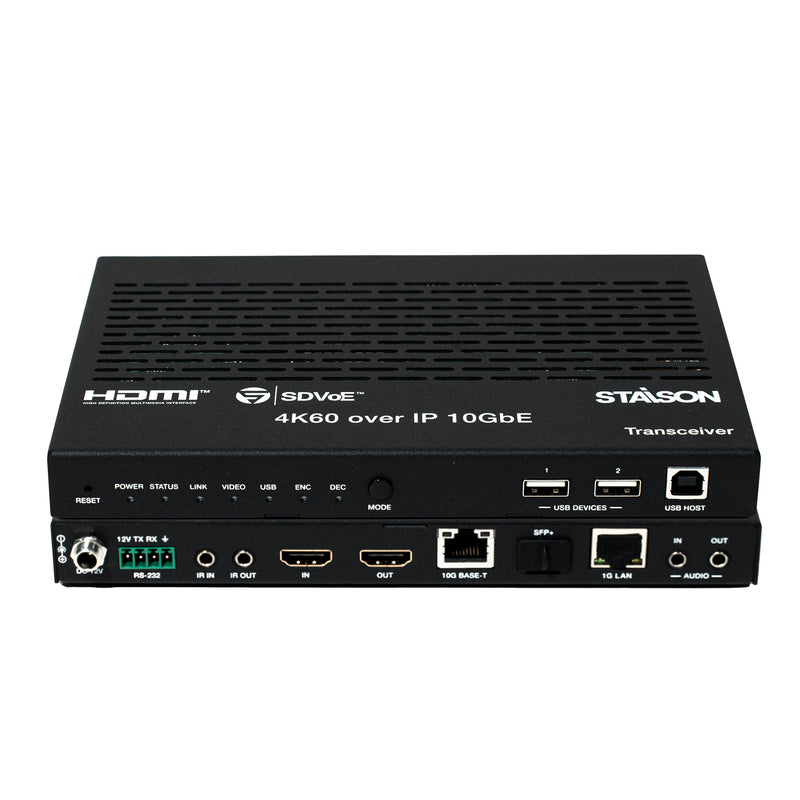

Front Panel

Rear Panel

IR Pin Definition

Rack Mounting

This transceiver can be mounted in a standard 6U rack (up to 10 units installed vertically). Fix the two mounting ears to the unit with the included screws, insert into the rack, then fasten the mounting ears to the rack.

1U Rack Mounting — Up to 4 units can be installed horizontally. Stack two units, fix the 1U rack panels to them, then join a second pair in the same way and fasten all four to the rack.

Network Switch Requirements

The network switch must support all of the following: Layer 3 / Managed, 10 Gigabit bandwidth, IGMP v2 supported and snooping enabled, filter/drop unregistered multicast traffic, disable unregistered multicast flooding, enable fast leave support.

Recommended switch models: Netgear ProSAFE PLUS XS708E, Netgear ProSAFE Smart XS712T, Netgear M7300-24XF XSM7224S, Netgear ProSAFE M4300 Intelligent Edge Series, Arista Networks 7050X Series.

SDVoE System Control

This transceiver can be controlled by a Controller Box (ST-NCTL100D) or a third-party controller. When the network switch does not support PoE, the units must be powered by the DC power adapter. Controller Box Control LAN default mode is DHCP. If no DHCP server is present, the Control LAN defaults to 192.168.0.225 — set PC to the same subnet (e.g. 192.168.0.88). Access the Web GUI at http://controller.local or http://192.168.0.225.

Application Example
