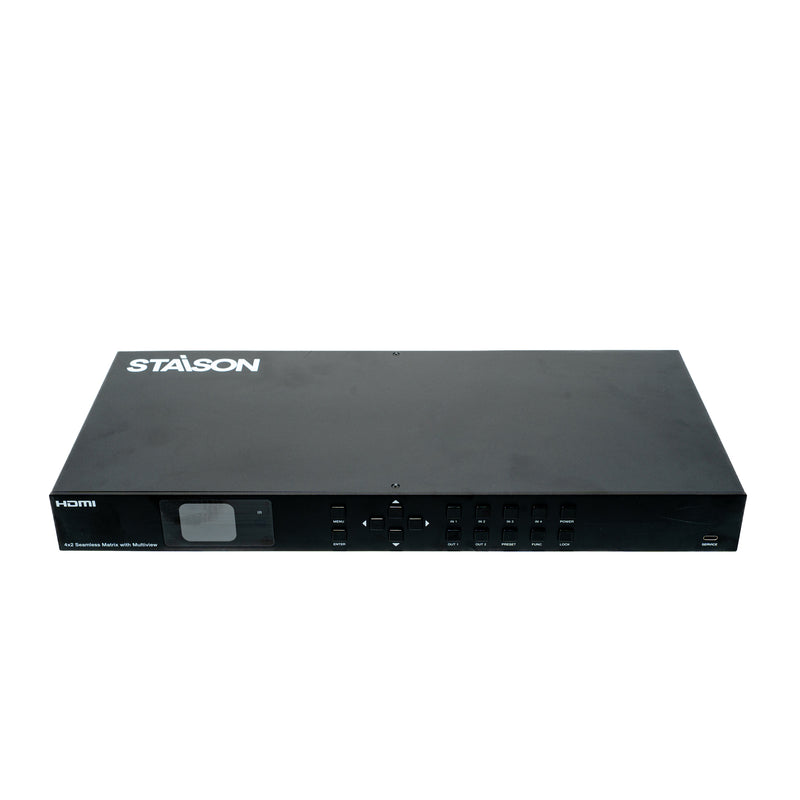

ST-NMXB42LMV Video Matrix Switcher front view
 ST-NMXB42LMV Video Matrix Switcher front view
 ST-NMXB42LMV Video Matrix Switcher HDMI ports
 ST-NMXB42LMV Video Matrix Switcher with remote control

ST-NMXB42LMV Video Matrix Switcher | 4x2 Seamless Multiview

0.00 SR
  • Black
  • AC-powered
  • Metal
  • Aluminum
  • 4K ultra HD
  • 2160p
  • 480p
  • 720p
  • 1080p
  • 3D
  • HDMI
  • Video
  • HDCP 2.2
  • HDCP 1.4
  • Push-button
  • Remote control
  • Software-controlled
  • Manual
  • HDR10
  • HDR10+
  • HLG
  • Dolby vision
  • EDID management
  • Signal amplification
  • Not supported
  • Female
  • DTS
  • LPCM

Specifications

ST-NMXB42LMV Video Matrix Switcher is a professional 4x2 HDMI seamless matrix switcher designed for 4K AV routing, multiview monitoring and conference room installations. The ST-NMXB42LMV Video Matrix Switcher supports 4K@60Hz 4:4:4, HDR10, HDR10+, HLG, Dolby Vision pass-through and HDCP 2.2 compliance. This ST-NMXB42LMV Video Matrix Switcher features four HDMI inputs, two HDMI outputs, four HDMI loop outputs and flexible display modes including Single, PIP, PBP, Triple, Quad and custom multiview layouts. The ST-NMXB42LMV Video Matrix Switcher also provides audio de-embedding, advanced EDID management, HDR to SDR conversion, RS-232 control, TCP/IP control and Web GUI operation. Choose the ST-NMXB42LMV Video Matrix Switcher for professional AV systems, classrooms, control rooms, training rooms and video conference rooms.

ST-NMXB42LMV Video Matrix Switcher supports resolutions up to 4K@60Hz 4:4:4 with seamless switching, multiview display, HDR support and HDCP 2.2 compliance.
This matrix switcher features four HDMI™ inputs and each input with loop out port for cascading connection.
This matrix switcher can be controlled via front panel buttons, remote control, API commands using RS-232 or TCP/IP. A Web server / GUI is built in that features A/V control, and input EDID management. The product is ideal for video conference rooms.

ST-NMXB42LMV Video Matrix Switcher Features

☆ Video resolutions up to 4K@60Hz 4:4:4, as specified in HDMI™ 2.0b
☆ HDCP 2.2 and HDCP 1.x compliant
☆ 4x2 seamless switching (single screen) and fast switching (multiview) function
☆ Seamless switching without black screen or tearing screen (matrix mode)
☆ Multiple multiview display modes: Auto/Single/PIP/PBP/Triple/Quad view and customized layouts
☆ Supports HDR10, HDR10+, HLG and Dolby Vision pass-through
☆ Supports HDR to SDR conversion
☆ Auto or manual switching mode
☆ Input: 4x HDMI™
☆ Output: 4x HDMI™ loop, 2x HDMI™, 1x Optical audio, 1x Analog audio
☆ Audio de-embedded
☆ Advanced EDID management
☆ Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI

ST-NMXB42LMV Video Matrix Switcher Package Contents

① 1x 4x2 Seamless Matrix Switcher
② 1x IR Remote Control
③ 1x IR Wideband Receiver Cable (1.5m)
④ 1x 3pin-3.5mm Phoenix Connector (male)
⑤ 1x 5pin-3.5mm Phoenix Connector (male)
⑥ 2x Mounting Ear
⑦ 8x Machine Screw
⑧ 1x Multinational AC Power Cord (1.5m, optional)
⑨ 1x User Manual

The ST-NMXB42LMV Video Matrix Switcher is built for stable signal distribution, seamless HDMI switching and reliable multiview output. With loop output support, IR remote control and Web GUI management, the ST-NMXB42LMV Video Matrix Switcher helps installers create flexible AV routing systems. The ST-NMXB42LMV Video Matrix Switcher is suitable for meeting rooms, lecture halls, monitoring rooms and professional AV integration projects.

ST-NMXB42LMV Video Matrix Switcher Specifications

Technical
Video Bandwidth 18Gbps
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and 1.x
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Input Video Resolution 640×480p60Hz, 800×600p60Hz, 1024×768p60Hz, 1280×1024p60Hz, 1360×768p60Hz, 1440×900p60Hz, 1440×1050p60Hz, 1600×1200p60Hz, 480i59, 480p59, 576i50, 576p50, 720p50/59/60, 1080i50/59/60, 1080p23/24/25/29/30/50/59/60, 2160p23/24/25/29/30/50/59/60, 4096×2160p23.98/24/25/29.97/30/50/59.94/60Hz
Output Video Resolution HDR Bypass Mode: Video passthrough from input.
HDR to SDR Mode: 1024×768p60Hz, 1280×720p50/60Hz, 1280×800p60Hz, 1360×768p60Hz, 1920×1200p60Hz, 1080i50/60, 1080p50/60, 2160p25/30/50/60, 4096×2160p50/60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit
Audio Formats (HDMI Passthrough) LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS-HD Master Audio, DTS-96/24, DTS High Res
Audio Formats (Breakout) Optical Out: Up to LPCM/Dolby/DTS 5.1CH
Line Out: Only LPCM 2CH (sample rate 32~192kHz)
IR Level 12Vp-p
IR Frequency Wideband 20K–60KHz
Transmission Distance HDMI passive cable: 9.8ft / 3m
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
LINE Analog Audio Out
Dynamic Range >90dB @0dBu, 1kHz A-weighted
Audio S/N Ratio >90dB @0dBu, 1kHz A-weighted
Output Level (Maximum) 8.2dBu (2Vrms) @ balanced audio; 2.2dBu (1Vrms) @ unbalanced audio
Output Impedance 600 Ohm balanced; 300 Ohm unbalanced
Audio Output Delay <1ms
Audio THD+N <0.01% @ +4dBu, 1kHz
Frequency Response 20Hz to 20kHz (-/+0.5dB)
Connection
Input Ports 4× IN [HDMI Type A, 19-pin female]
Output Ports 1× OUT 1 [HDMI Type A, 19-pin female, single/multiview output]
1× OUT 2 [HDMI Type A, 19-pin female, single screen output]
4× LOOP [HDMI Type A, 19-pin female]
1× LINE AUDIO OUT [5pin-3.5mm phoenix connector]
1× OPTICAL AUDIO OUT [S/PDIF]
Control Ports 1× RS-232 [3pin-3.5mm phoenix connector, RS-232 API control]
1× LAN [RJ45 connector, TCP/IP and Web GUI]
1× SERVICE [USB-C with USB 2.0 only, 12-pin female, FW upgrade port]
1× IR EXT [3.5mm audio jack, IR IN 12V level]
Mechanical
Housing Front panel: Aluminum; Rear case: Metal Enclosure
Color Black
Dimensions 440mm [W] × 200mm [D] × 44mm [H]
Weight 2.65kg
Power
Power Supply AC 100–240V 50/60Hz
Power Consumption 61.6W (Max)
Environmental
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity 20%~80% (relative humidity, non-condensing)
Storage Humidity 10%~90% (relative humidity, non-condensing)

ST-NMXB42LMV Video Matrix Switcher Operation Controls and Functions

Front Panel

Front Panel
No. Name Function Description
1 LCD Screen 1.8-inch LCD panel with 284×240 resolution and IPS. After powering on, the LCD screen will display the current input/output channel mapping of the matrix by default. Information such as EDID, output resolution, baud rate, and IP address can be displayed/set by pressing menu buttons.
2 IR Window IR signal receiving window, receiving the IR remote signal to control certain functions of the machine.
3 LCD Screen Operation Buttons MENU: Enter the primary menu (INPUT SETTINGS / OUTPUT SETTINGS / AUDIO BREAKOUT / SETUP / FIRMWARE). Pressing MENU returns to the previous menu.
UP / DOWN: Select the previous or next item.
LEFT / RIGHT: Directional operation buttons.
ENTER: Confirm and take effect.
Note: Returns to the initial display screen if no operation is performed within 10 seconds.
4 Matrix Operation Buttons IN 1/IN 2/IN 3/IN 4: Input channel selection buttons.
OUT 1/OUT 2: Output channel selection buttons.
PRESET: Press to recall the presets circularly.
FUNC: Function button.
OUT + IN: Press OUT 1/2 then IN 1/2/3/4 to complete matrix mapping. E.g. "OUT 1 + IN 1" routes input 1 to output 1.
FUNC + IN: Routes selected input to all outputs. E.g. "FUNC + IN 1" routes input 1 to all outputs.
FUNC + FUNC + IN 1: View IP address.
FUNC + FUNC + IN 2: View serial port baud rate.
FUNC + FUNC + IN 3: Turn on signal management mode.
FUNC + FUNC + IN 4: Turn off signal management mode.
Note: Quick information disappears automatically after 3 seconds.
5 POWER Button Short press to power on (button light off). Press and hold for 3 seconds to enter standby mode (red button light on).
6 LOCK Button Press and hold for 3 seconds to lock front panel buttons except POWER (blue button light on). Press again to unlock.
7 SERVICE Port USB-C port with USB 2.0 only, used for firmware upgrade.

Rear Panel

Rear Panel
No. Name Function Description
1 IN 1/2/3/4 Ports INPUT: Four HDMI signal input ports, supporting auto switching, connected to HDMI source devices.
LOOP: Four HDMI signal loop output ports, supporting bypass and downscale, connected to HDMI display devices.
2 MULTIVIEW OUT 1 Port HDMI signal output port, supporting single screen or multiview display.
3 SINGLE OUT 2 Port HDMI signal output port, only supporting single screen display. Supports HDR bypass and HDR to SDR conversion.
4 OPTICAL Port Optical fiber audio output port, supporting audio de-embedding up to 5.1CH.
5 LINE Port Analog audio output port, supporting balanced/unbalanced 2CH audio output (max output level 2Vrms).
Balanced connection: L+, L–, GND, R+, R–
Unbalanced connection: L+, GND, R+
6 LAN Port Ethernet port for TCP/IP and Web GUI control.
Green light on: linked with PC. Green light off: not linked. Yellow flashing: data transmission. Yellow off: no data.
7 RS-232 Port RS-232 serial port (baud rate 115200), used for upgrade and API command transmission.
8 IR EXT Port IR signal receiving port (12V level). Insert IR receiver cable if the IR window is blocked or the unit is installed out of line of sight.
9 GND Connect the unit housing to ground.
10 Power Switch Press to turn on/off the power.
11 Power Port Universal AC power outlet, connected to the 100–240V AC 50/60Hz power supply.

IR Cable Pin Assignment

The pin assignment of the IR Receiver cable and IR Blaster cable is as below:

IR Cable Pin Assignment

Note: When the angle between the IR receiver and the remote control is ±45°, the transmission distance is 0–5 meters; when the angle is ±90°, the transmission distance is 0–8 meters.

LCD Display Navigation

Various functions of the matrix can be set through the operation of buttons on the front panel. The LCD display navigation consists of five primary menus: INPUT SETTINGS / OUTPUT SETTINGS / AUDIO BREAKOUT / SETUP / FIRMWARE.

Level 1 Level 2 Level 3 Level 4
INPUT SETTINGS EDID INPUT 1/2/3/4 1. Auto
2. Copy HDMI Out 1
3. Copy HDMI Out 2
4. 4K2K60_444 2.0CH
5. 4K2K60_444 5.1CH
6. 4K2K60_444 7.1CH
7. 4K2K30_444 2.0CH
8. 4K2K30_444 5.1CH
9. 4K2K30_444 7.1CH
10. 1080p60_444 2.0CH
11. 1080p60_444 5.1CH
12. 1080p60_444 7.1CH
13. 720P60_444 2.0CH
14. 1920×1200 2.0CH
15. 1680×1050 2.0CH
16. 1600×1200 2.0CH
17. 1440×900 2.0CH
18. 1360×768 2.0CH
19. 1280×1024 2.0CH
20. 1024×768 2.0CH
21. User Defined 1
22. User Defined 2
OUTPUT SETTINGS RESOLUTION OUTPUT 1/2 1. Auto
2. 3840×2160p60
3. 3840×2160p50
4. 4096×2160p60
5. 4096×2160p50
6. 3840×2160p30
7. 1920×1080p60
8. 1920×1080p50
9. 1920×1080i60
10. 1920×1080i50
11. 1280×720p60
12. 1280×720p50
13. 1360×768p60
14. 1280×800p60
15. 1920×1200p60RB
16. 1024×768p60
HDR OUTPUT 2 1. HDR Bypass
2. HDR to SDR
MUTE OUTPUT 1/2 1. ON
2. OFF
STREAM OUTPUT 1/2 1. ON
2. OFF
AUDIO BREAKOUT SOURCE OPTICAL / LINE 1. Follow HDMI Out 1
2. Follow HDMI Out 2
3. HDMI In 1
4. HDMI In 2
5. HDMI In 3
6. HDMI In 4
MUTE OPTICAL / LINE 1. ON
2. OFF
SETUP LCD ONTIME OFF / ALWAYS ON / 15 SECONDS / 30 SECONDS / 60 SECONDS
BAUD RATE 4800 / 9600 / 19200 / 38400 / 57600 / 115200
NETWORK DHCP ON / DHCP OFF
IP, Subnet Mask, Gateway, MAC
REBOOT Are you sure you want to REBOOT the system? Yes, press "FUNC" / No, press "MENU"
RESET Are you sure you want to RESET the system to default? Yes, press "FUNC" / No, press "MENU"
FIRMWARE BOOT FW V1.00.XX
MCU FW V1.00.XX
WEB GUI V1.00.XX
LCD FW V1.00.XX

IR Remote

IR Remote
Button / Group Function Description
Power Press this button to power on the unit or set it to standby mode.
OUT 1 Buttons
IN 1 / IN 2 / IN 3 / IN 4 Press to select input source for the OUT 1 port.
AUTO Press to enable/disable the auto switching function in single screen display mode.
◄ ► Press to circularly select the previous or next input source for OUT 1 in single screen mode, or for WIN 1 in multiview mode.
RES. Press to cycle through the output resolution for the OUT 1 port.
PIP Press to switch output 1 to PIP display mode.
PBP Press to switch output 1 to PBP display mode.
TRIPLE Press to switch output 1 to Triple display mode.
QUAD Press to switch output 1 to Quad display mode.
OUT 2 Buttons
IN 1 / IN 2 / IN 3 / IN 4 Press to select input source for the OUT 2 port.
AUTO Press to enable/disable the auto switching function.
◄ ► Press to circularly select the previous or next input source for the OUT 2 port.
RES. Press to cycle through the output resolution for the OUT 2 port.
Preset Buttons
PRESET 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 Press to recall the saved preset scenes.

Method 1: The IR window receives the IR remote signal. The furthest distance is 7 meters at ±45°.

IR Method 1 - Direct Window

Method 2: If the IR receiver window is blocked or the matrix switcher is installed out of infrared line of sight, insert the IR receiver cable to the "IR EXT" port. The furthest distance is 7 meters when the remote is directly faced to the IR receiver head.

IR Method 2 - IR EXT Cable

Multiview

The OUT 1 port of the matrix switcher supports multiple multiview display modes:

Display Mode Description
Auto When the Auto mode is selected, the multiview display modes set through Web GUI will be recalled automatically.
Single Single screen display mode.
PBP Dual screen display modes, including Dual-LR and Dual-TB.
PIP PIP screen display modes, including PIP-LT, PIP-LB, PIP-RT and PIP-RB.
Triple Triple screen display modes, including Triple-L, Triple-R, Triple-T and Triple-B.
Quad Quad screen display modes, including Quad-L, Quad-R, Quad-T, Quad-B and Quad-S.
Custom Layout Five customized multiview display modes are supported.
Copy HDMI Out 2 Copy the display mode selected by the OUT 2 port.
Multiview Window Distributions

You can set/select multiview display modes for OUT 1 via Web GUI, IR remote control, or RS-232 commands.

RS-232 Control Command

The product also supports RS-232 command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable and a USB to RS-232 serial cable. The connection method is as follows.

RS-232 Connection

Application Example

1: General Application

General Application Diagram

2: Cascading Application

Cascading Application Diagram

3: AV over IP Application

AV over IP Application Diagram

ST-NMXB42LMV Video Matrix Switcher is a professional 4x2 HDMI seamless matrix switcher designed for 4K AV routing, multiview monitoring and conference room installations. The ST-NMXB42LMV Video Matrix Switcher supports 4K@60Hz 4:4:4, HDR10, HDR10+, HLG, Dolby Vision pass-through and HDCP 2.2 compliance. This ST-NMXB42LMV Video Matrix Switcher features four HDMI inputs, two HDMI outputs, four HDMI loop outputs and flexible display modes including Single, PIP, PBP, Triple, Quad and custom multiview layouts. The ST-NMXB42LMV Video Matrix Switcher also provides audio de-embedding, advanced EDID management, HDR to SDR conversion, RS-232 control, TCP/IP control and Web GUI operation. Choose the ST-NMXB42LMV Video Matrix Switcher for professional AV systems, classrooms, control rooms, training rooms and video conference rooms.

ST-NMXB42LMV Video Matrix Switcher supports resolutions up to 4K@60Hz 4:4:4 with seamless switching, multiview display, HDR support and HDCP 2.2 compliance.
This matrix switcher features four HDMI™ inputs and each input with loop out port for cascading connection.
This matrix switcher can be controlled via front panel buttons, remote control, API commands using RS-232 or TCP/IP. A Web server / GUI is built in that features A/V control, and input EDID management. The product is ideal for video conference rooms.

ST-NMXB42LMV Video Matrix Switcher Features

☆ Video resolutions up to 4K@60Hz 4:4:4, as specified in HDMI™ 2.0b
☆ HDCP 2.2 and HDCP 1.x compliant
☆ 4x2 seamless switching (single screen) and fast switching (multiview) function
☆ Seamless switching without black screen or tearing screen (matrix mode)
☆ Multiple multiview display modes: Auto/Single/PIP/PBP/Triple/Quad view and customized layouts
☆ Supports HDR10, HDR10+, HLG and Dolby Vision pass-through
☆ Supports HDR to SDR conversion
☆ Auto or manual switching mode
☆ Input: 4x HDMI™
☆ Output: 4x HDMI™ loop, 2x HDMI™, 1x Optical audio, 1x Analog audio
☆ Audio de-embedded
☆ Advanced EDID management
☆ Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI

ST-NMXB42LMV Video Matrix Switcher Package Contents

① 1x 4x2 Seamless Matrix Switcher
② 1x IR Remote Control
③ 1x IR Wideband Receiver Cable (1.5m)
④ 1x 3pin-3.5mm Phoenix Connector (male)
⑤ 1x 5pin-3.5mm Phoenix Connector (male)
⑥ 2x Mounting Ear
⑦ 8x Machine Screw
⑧ 1x Multinational AC Power Cord (1.5m, optional)
⑨ 1x User Manual

The ST-NMXB42LMV Video Matrix Switcher is built for stable signal distribution, seamless HDMI switching and reliable multiview output. With loop output support, IR remote control and Web GUI management, the ST-NMXB42LMV Video Matrix Switcher helps installers create flexible AV routing systems. The ST-NMXB42LMV Video Matrix Switcher is suitable for meeting rooms, lecture halls, monitoring rooms and professional AV integration projects.

ST-NMXB42LMV Video Matrix Switcher Specifications

Technical
Video Bandwidth 18Gbps
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and 1.x
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Input Video Resolution 640×480p60Hz, 800×600p60Hz, 1024×768p60Hz, 1280×1024p60Hz, 1360×768p60Hz, 1440×900p60Hz, 1440×1050p60Hz, 1600×1200p60Hz, 480i59, 480p59, 576i50, 576p50, 720p50/59/60, 1080i50/59/60, 1080p23/24/25/29/30/50/59/60, 2160p23/24/25/29/30/50/59/60, 4096×2160p23.98/24/25/29.97/30/50/59.94/60Hz
Output Video Resolution HDR Bypass Mode: Video passthrough from input.
HDR to SDR Mode: 1024×768p60Hz, 1280×720p50/60Hz, 1280×800p60Hz, 1360×768p60Hz, 1920×1200p60Hz, 1080i50/60, 1080p50/60, 2160p25/30/50/60, 4096×2160p50/60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit
Audio Formats (HDMI Passthrough) LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS-HD Master Audio, DTS-96/24, DTS High Res
Audio Formats (Breakout) Optical Out: Up to LPCM/Dolby/DTS 5.1CH
Line Out: Only LPCM 2CH (sample rate 32~192kHz)
IR Level 12Vp-p
IR Frequency Wideband 20K–60KHz
Transmission Distance HDMI passive cable: 9.8ft / 3m
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
LINE Analog Audio Out
Dynamic Range >90dB @0dBu, 1kHz A-weighted
Audio S/N Ratio >90dB @0dBu, 1kHz A-weighted
Output Level (Maximum) 8.2dBu (2Vrms) @ balanced audio; 2.2dBu (1Vrms) @ unbalanced audio
Output Impedance 600 Ohm balanced; 300 Ohm unbalanced
Audio Output Delay <1ms
Audio THD+N <0.01% @ +4dBu, 1kHz
Frequency Response 20Hz to 20kHz (-/+0.5dB)
Connection
Input Ports 4× IN [HDMI Type A, 19-pin female]
Output Ports 1× OUT 1 [HDMI Type A, 19-pin female, single/multiview output]
1× OUT 2 [HDMI Type A, 19-pin female, single screen output]
4× LOOP [HDMI Type A, 19-pin female]
1× LINE AUDIO OUT [5pin-3.5mm phoenix connector]
1× OPTICAL AUDIO OUT [S/PDIF]
Control Ports 1× RS-232 [3pin-3.5mm phoenix connector, RS-232 API control]
1× LAN [RJ45 connector, TCP/IP and Web GUI]
1× SERVICE [USB-C with USB 2.0 only, 12-pin female, FW upgrade port]
1× IR EXT [3.5mm audio jack, IR IN 12V level]
Mechanical
Housing Front panel: Aluminum; Rear case: Metal Enclosure
Color Black
Dimensions 440mm [W] × 200mm [D] × 44mm [H]
Weight 2.65kg
Power
Power Supply AC 100–240V 50/60Hz
Power Consumption 61.6W (Max)
Environmental
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Operating Humidity 20%~80% (relative humidity, non-condensing)
Storage Humidity 10%~90% (relative humidity, non-condensing)

ST-NMXB42LMV Video Matrix Switcher Operation Controls and Functions

Front Panel

Front Panel
No. Name Function Description
1 LCD Screen 1.8-inch LCD panel with 284×240 resolution and IPS. After powering on, the LCD screen will display the current input/output channel mapping of the matrix by default. Information such as EDID, output resolution, baud rate, and IP address can be displayed/set by pressing menu buttons.
2 IR Window IR signal receiving window, receiving the IR remote signal to control certain functions of the machine.
3 LCD Screen Operation Buttons MENU: Enter the primary menu (INPUT SETTINGS / OUTPUT SETTINGS / AUDIO BREAKOUT / SETUP / FIRMWARE). Pressing MENU returns to the previous menu.
UP / DOWN: Select the previous or next item.
LEFT / RIGHT: Directional operation buttons.
ENTER: Confirm and take effect.
Note: Returns to the initial display screen if no operation is performed within 10 seconds.
4 Matrix Operation Buttons IN 1/IN 2/IN 3/IN 4: Input channel selection buttons.
OUT 1/OUT 2: Output channel selection buttons.
PRESET: Press to recall the presets circularly.
FUNC: Function button.
OUT + IN: Press OUT 1/2 then IN 1/2/3/4 to complete matrix mapping. E.g. "OUT 1 + IN 1" routes input 1 to output 1.
FUNC + IN: Routes selected input to all outputs. E.g. "FUNC + IN 1" routes input 1 to all outputs.
FUNC + FUNC + IN 1: View IP address.
FUNC + FUNC + IN 2: View serial port baud rate.
FUNC + FUNC + IN 3: Turn on signal management mode.
FUNC + FUNC + IN 4: Turn off signal management mode.
Note: Quick information disappears automatically after 3 seconds.
5 POWER Button Short press to power on (button light off). Press and hold for 3 seconds to enter standby mode (red button light on).
6 LOCK Button Press and hold for 3 seconds to lock front panel buttons except POWER (blue button light on). Press again to unlock.
7 SERVICE Port USB-C port with USB 2.0 only, used for firmware upgrade.

Rear Panel

Rear Panel
No. Name Function Description
1 IN 1/2/3/4 Ports INPUT: Four HDMI signal input ports, supporting auto switching, connected to HDMI source devices.
LOOP: Four HDMI signal loop output ports, supporting bypass and downscale, connected to HDMI display devices.
2 MULTIVIEW OUT 1 Port HDMI signal output port, supporting single screen or multiview display.
3 SINGLE OUT 2 Port HDMI signal output port, only supporting single screen display. Supports HDR bypass and HDR to SDR conversion.
4 OPTICAL Port Optical fiber audio output port, supporting audio de-embedding up to 5.1CH.
5 LINE Port Analog audio output port, supporting balanced/unbalanced 2CH audio output (max output level 2Vrms).
Balanced connection: L+, L–, GND, R+, R–
Unbalanced connection: L+, GND, R+
6 LAN Port Ethernet port for TCP/IP and Web GUI control.
Green light on: linked with PC. Green light off: not linked. Yellow flashing: data transmission. Yellow off: no data.
7 RS-232 Port RS-232 serial port (baud rate 115200), used for upgrade and API command transmission.
8 IR EXT Port IR signal receiving port (12V level). Insert IR receiver cable if the IR window is blocked or the unit is installed out of line of sight.
9 GND Connect the unit housing to ground.
10 Power Switch Press to turn on/off the power.
11 Power Port Universal AC power outlet, connected to the 100–240V AC 50/60Hz power supply.

IR Cable Pin Assignment

The pin assignment of the IR Receiver cable and IR Blaster cable is as below:

IR Cable Pin Assignment

Note: When the angle between the IR receiver and the remote control is ±45°, the transmission distance is 0–5 meters; when the angle is ±90°, the transmission distance is 0–8 meters.

LCD Display Navigation

Various functions of the matrix can be set through the operation of buttons on the front panel. The LCD display navigation consists of five primary menus: INPUT SETTINGS / OUTPUT SETTINGS / AUDIO BREAKOUT / SETUP / FIRMWARE.

Level 1 Level 2 Level 3 Level 4
INPUT SETTINGS EDID INPUT 1/2/3/4 1. Auto
2. Copy HDMI Out 1
3. Copy HDMI Out 2
4. 4K2K60_444 2.0CH
5. 4K2K60_444 5.1CH
6. 4K2K60_444 7.1CH
7. 4K2K30_444 2.0CH
8. 4K2K30_444 5.1CH
9. 4K2K30_444 7.1CH
10. 1080p60_444 2.0CH
11. 1080p60_444 5.1CH
12. 1080p60_444 7.1CH
13. 720P60_444 2.0CH
14. 1920×1200 2.0CH
15. 1680×1050 2.0CH
16. 1600×1200 2.0CH
17. 1440×900 2.0CH
18. 1360×768 2.0CH
19. 1280×1024 2.0CH
20. 1024×768 2.0CH
21. User Defined 1
22. User Defined 2
OUTPUT SETTINGS RESOLUTION OUTPUT 1/2 1. Auto
2. 3840×2160p60
3. 3840×2160p50
4. 4096×2160p60
5. 4096×2160p50
6. 3840×2160p30
7. 1920×1080p60
8. 1920×1080p50
9. 1920×1080i60
10. 1920×1080i50
11. 1280×720p60
12. 1280×720p50
13. 1360×768p60
14. 1280×800p60
15. 1920×1200p60RB
16. 1024×768p60
HDR OUTPUT 2 1. HDR Bypass
2. HDR to SDR
MUTE OUTPUT 1/2 1. ON
2. OFF
STREAM OUTPUT 1/2 1. ON
2. OFF
AUDIO BREAKOUT SOURCE OPTICAL / LINE 1. Follow HDMI Out 1
2. Follow HDMI Out 2
3. HDMI In 1
4. HDMI In 2
5. HDMI In 3
6. HDMI In 4
MUTE OPTICAL / LINE 1. ON
2. OFF
SETUP LCD ONTIME OFF / ALWAYS ON / 15 SECONDS / 30 SECONDS / 60 SECONDS
BAUD RATE 4800 / 9600 / 19200 / 38400 / 57600 / 115200
NETWORK DHCP ON / DHCP OFF
IP, Subnet Mask, Gateway, MAC
REBOOT Are you sure you want to REBOOT the system? Yes, press "FUNC" / No, press "MENU"
RESET Are you sure you want to RESET the system to default? Yes, press "FUNC" / No, press "MENU"
FIRMWARE BOOT FW V1.00.XX
MCU FW V1.00.XX
WEB GUI V1.00.XX
LCD FW V1.00.XX

IR Remote

IR Remote
Button / Group Function Description
Power Press this button to power on the unit or set it to standby mode.
OUT 1 Buttons
IN 1 / IN 2 / IN 3 / IN 4 Press to select input source for the OUT 1 port.
AUTO Press to enable/disable the auto switching function in single screen display mode.
◄ ► Press to circularly select the previous or next input source for OUT 1 in single screen mode, or for WIN 1 in multiview mode.
RES. Press to cycle through the output resolution for the OUT 1 port.
PIP Press to switch output 1 to PIP display mode.
PBP Press to switch output 1 to PBP display mode.
TRIPLE Press to switch output 1 to Triple display mode.
QUAD Press to switch output 1 to Quad display mode.
OUT 2 Buttons
IN 1 / IN 2 / IN 3 / IN 4 Press to select input source for the OUT 2 port.
AUTO Press to enable/disable the auto switching function.
◄ ► Press to circularly select the previous or next input source for the OUT 2 port.
RES. Press to cycle through the output resolution for the OUT 2 port.
Preset Buttons
PRESET 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 Press to recall the saved preset scenes.

Method 1: The IR window receives the IR remote signal. The furthest distance is 7 meters at ±45°.

IR Method 1 - Direct Window

Method 2: If the IR receiver window is blocked or the matrix switcher is installed out of infrared line of sight, insert the IR receiver cable to the "IR EXT" port. The furthest distance is 7 meters when the remote is directly faced to the IR receiver head.

IR Method 2 - IR EXT Cable

Multiview

The OUT 1 port of the matrix switcher supports multiple multiview display modes:

Display Mode Description
Auto When the Auto mode is selected, the multiview display modes set through Web GUI will be recalled automatically.
Single Single screen display mode.
PBP Dual screen display modes, including Dual-LR and Dual-TB.
PIP PIP screen display modes, including PIP-LT, PIP-LB, PIP-RT and PIP-RB.
Triple Triple screen display modes, including Triple-L, Triple-R, Triple-T and Triple-B.
Quad Quad screen display modes, including Quad-L, Quad-R, Quad-T, Quad-B and Quad-S.
Custom Layout Five customized multiview display modes are supported.
Copy HDMI Out 2 Copy the display mode selected by the OUT 2 port.
Multiview Window Distributions

You can set/select multiview display modes for OUT 1 via Web GUI, IR remote control, or RS-232 commands.

RS-232 Control Command

The product also supports RS-232 command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable and a USB to RS-232 serial cable. The connection method is as follows.

RS-232 Connection

Application Example

1: General Application

General Application Diagram

2: Cascading Application

Cascading Application Diagram

3: AV over IP Application

AV over IP Application Diagram
Dimensions 10 x 8 x 5 cm
Weight 500g
Material Premium aluminum alloy
Color Black, Silver, Gold
Warranty 2 years manufacturer warranty
