ST-NMXB44H150 18Gbps 4 x 4 HDBaseT (150M) Matrix

The 18Gbps 4x4 HDBaseT(150M) Matrix can connect four HDMI™ sources to eight displays.
It features four HDMI™ outputs and each HDMI™ output is mirrored to provide a CAT-Cable
output which runs simultaneously. HDBaseT output can extend video transmission distance
up to 492ft/150m (1080P) or 394ft/120m (4K2K) via a single CAT 5e/6/7 cable and the video
resolution is up to 4K2K@60Hz 4:4:4.
Audio de-embedded to analog and coaxial audio is supported. Each HDMI™ output supports
4K2K to 1080P downscaler independently.
The product supports IR matrix. The IR signal is one-to-one control at the Matrix end, but the
IR signal follows HDMI™ video channel at the HDBaseT Receiver end.
The product provides an intuitive set of front panel with OLED screen and supports control
via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

 Features

☆  HDCP 2.2 and HDCP 1.x compliant
☆  Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI™ & HDBaseT ports
☆  4x HDMI™ inputs, 4x HDMI™ & HDBaseT mirrored outputs
☆  HDMI™ ports transmit 18Gbps lossless uncompressed video bandwidth
☆  Support 18Gbps lossless compressed HDBaseT signal transmission
☆  Support 4K->1080P Down Scaler for each output port
☆  HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
☆  HDBaseT output can extend video transmission distance up to 492ft/150m for 1080P
     or 394ft/120m for 4K2K via a single CAT 5e/6/7 cable
☆  HDMI™ audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
     Master Audio)
☆  Support IR matrix
☆   Audio de-embedded is supported via analog and coax ports
☆  Advanced EDID management and CEC control are supported
☆  24V PoC on all HDBaseT ports
☆  1U rack mounted design with front panel OLED display
☆  Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

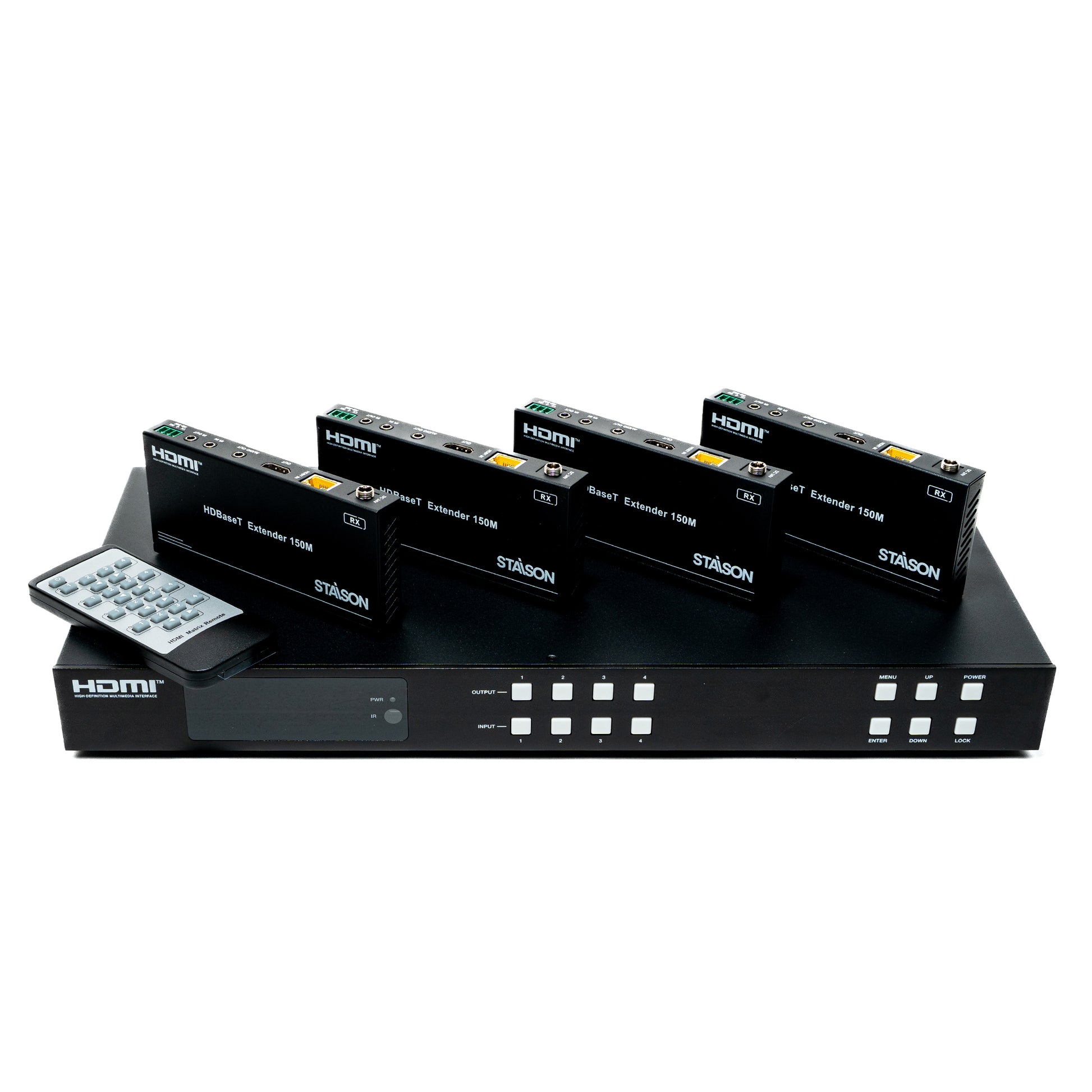

Package Contents

① 1x 18Gbps 4x4 HDBaseT(150M) Matrix
② 4x HDBaseT Receiver
③ 1x Matrix IR Remote
④ 1x 100~240V AC 50/60Hz Power cable
⑤ 1x RS-232 serial cable (1.5 meters, male to female head)
⑥ 4x 3-pin Phoenix Connector & 4 x 5-pin Phoenix Connector
⑦ 5x IR Blaster cable (1.5 meters)
⑧ 5x IR Receiver cable (1.5 meters)
⑨ 10x Mounting Ear (Matrix and Receiver)
⑩ 1x User Manual



Specifications

Parameter	Description
Video
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.x
Video Bandwidth	18 Gbps
Video Resolution	Up to 4K2K@50/60Hz (4:4:4)
Color Space	RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth	8/10/12-bit (1080p@60Hz); 8-bit (4K2K@60Hz YUV4:4:4); 8/10/12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
HDR Support	HDR10, HDR10+, Dolby Vision, HLG
Audio
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS-HD Master, DTS-HD HRA, DTS-X
Coax Audio Formats	PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Balanced Audio	PCM 2.0 CH
SNR	> 90 dB
THD+N Ratio	< 0.1% (V_max)
Frequency Response	20 Hz – 20 kHz ± 0.5 dB
Crosstalk	> 80 dB
Max Output Voltage	2 Vrms
Transmission Distance
HDMI Cable — 1080P	50 ft / 15 m
HDMI Cable — 4K30	32 ft / 10 m
HDMI Cable — 4K60	16 ft / 5 m
CAT5e/6/7 (HDBaseT) — 1080P	492 ft / 150 m
CAT5e/6/7 (HDBaseT) — 4K2K	394 ft / 120 m
Protection
ESD Protection	±8 kV (Air-gap discharge), ±4 kV (Contact discharge) — IEC 61000-4-2
Physical
Housing	Metal Enclosure — Black
Matrix Dimensions	440 × 200 × 44.5 mm (W × D × H) — 1U Rack Mount
Receiver Dimensions	140 × 65 × 18 mm (W × D × H)
Matrix Weight	3.1 kg
Receiver Weight	155 g
Power
Power Supply	AC 100–240V, 50/60 Hz
Power Consumption	60 W (Max)
PoC	24V PoC on all HDBaseT ports
Environment
Operating Temperature	0°C – 40°C / 32°F – 104°F
Storage Temperature	-20°C – 60°C / -4°F – 140°F
Operating Humidity	20% – 80% RH (non-condensing)
Storage Humidity	10% – 90% RH (non-condensing)

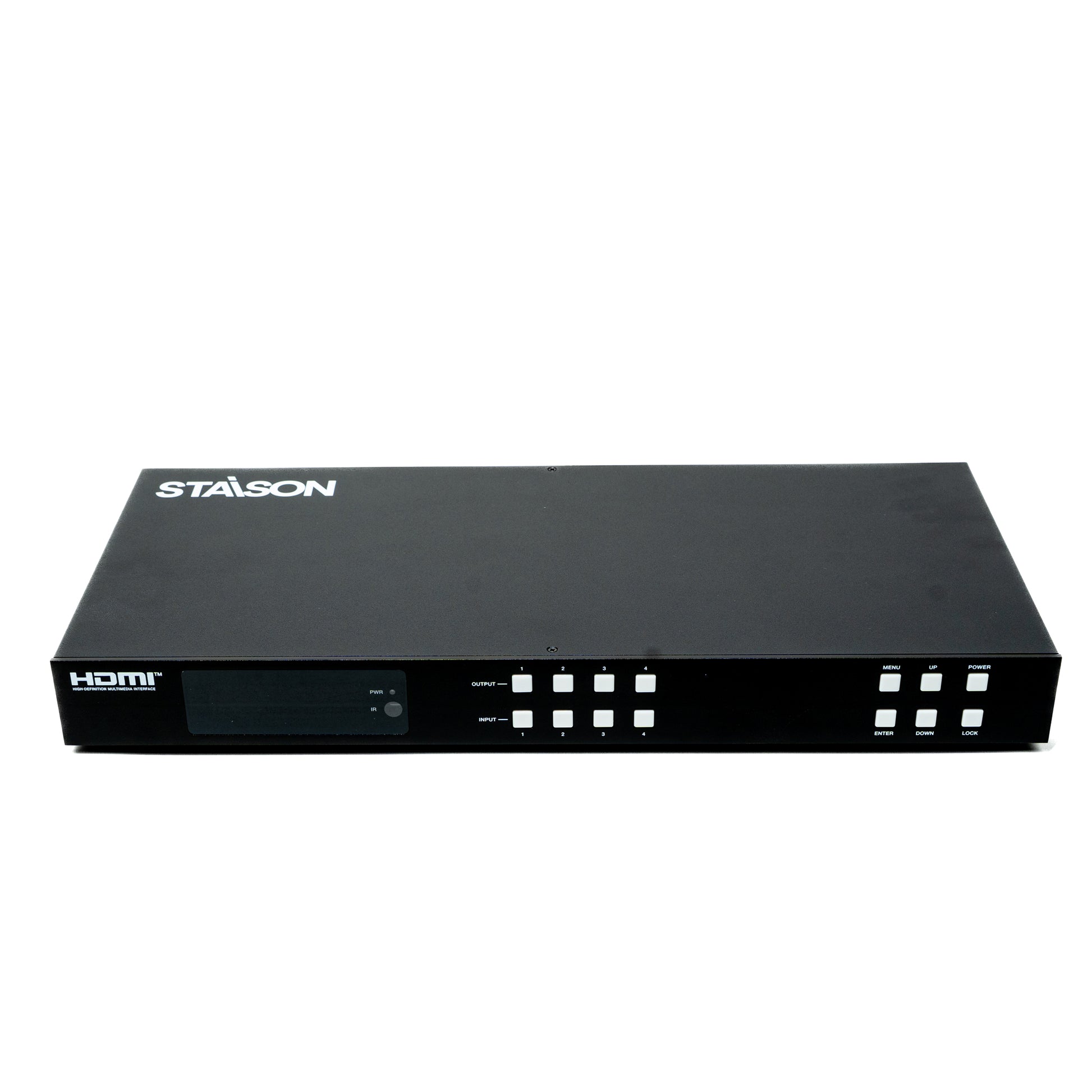

Matrix — Front Panel

No.	Name	Function Description
1	OLED Screen	Displays matrix switching status, input/output port, EDID, baud rate, and IP address.
2	Power LED	Green: device working normally. Red: device in standby mode.
3	OUTPUT / INPUT Buttons (1–4)	Press an OUTPUT button (1–4) first, then press an INPUT button (1–4) to route the selected input to that output.
4	MENU / ENTER / UP / DOWN	EDID setting: Press MENU to enter Select EDID, use UP/DOWN to choose, ENTER to confirm input port. Baud rate: Press MENU twice, select baud rate, confirm with ENTER. IP address: Press MENU three times to view/edit IP and toggle DHCP ON/OFF.
5	POWER Button	Hold for 3 seconds to enter standby. Press again to wake the device.
6	IR Window	IR receiver window, it only receives the IR remote signal  from this product.
7	LOCK Button	Press to lock front panel buttons (except POWER). Press again to unlock.

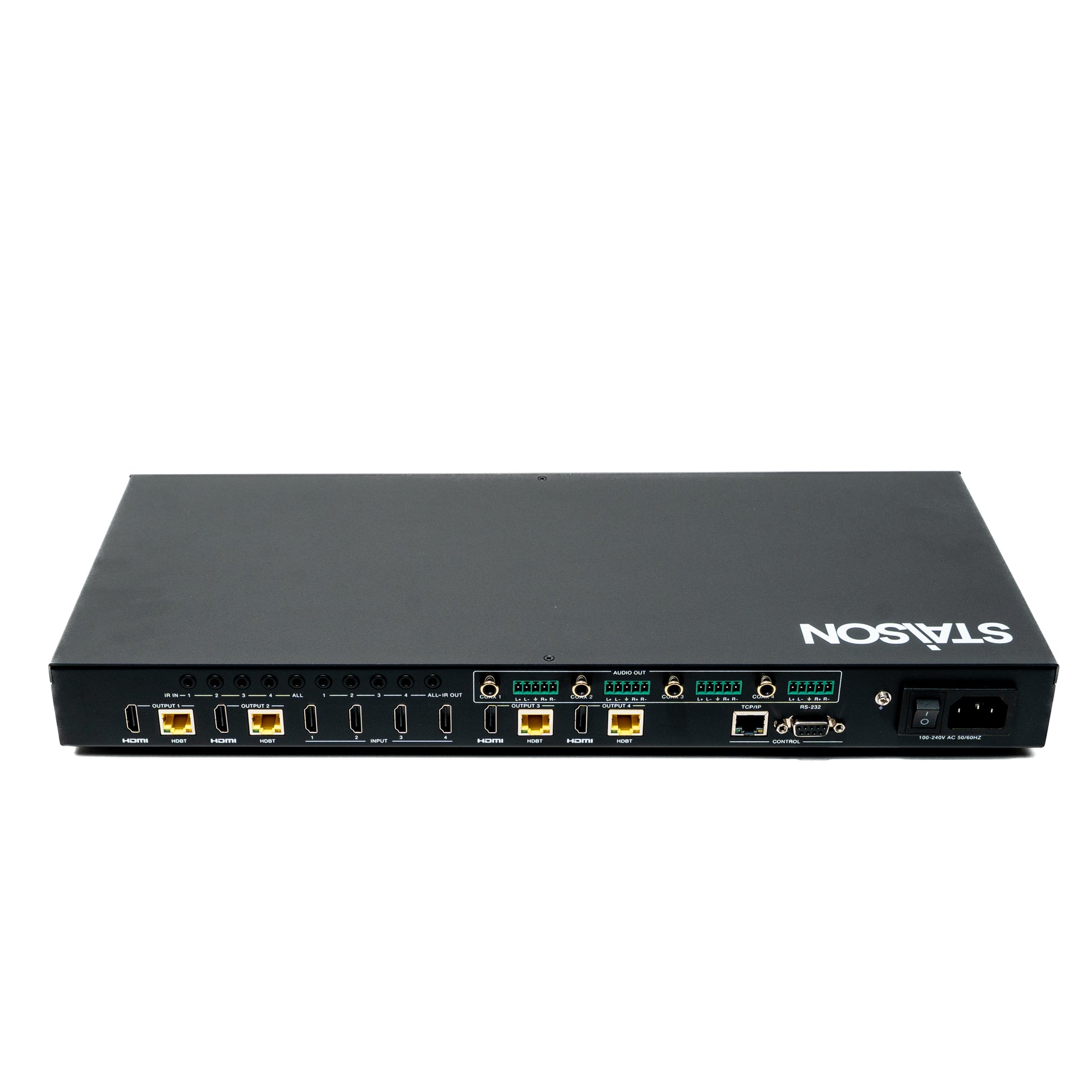

Matrix — Rear Panel



No.	Name	Function Description
1	IR IN (1/2/3/4/ALL)	Connect IR receiver cable. Signal received here is emitted to the matching IR OUT port on the corresponding HDBaseT Receiver. IR IN ALL emits to all receivers simultaneously.
2	IR OUT (1/2/3/4/ALL)	Connect IR blaster cable. Signal comes from the IR IN port of the corresponding HDBaseT Receiver.
3	AUDIO OUT (1–4)	4 groups of coaxial and balanced analog audio mirrored outputs. Follows the video output of OUTPUT (1–4) ports respectively.
4	GND	Connect the housing to ground.
5	POWER Input	Connect to 100–240V AC 50/60 Hz power cable. Press the power switch to turn on/off.
6	OUTPUT (1–4) Ports	HDMI output: connect to HDMI display device. HDBT mirrored output: connect to HDBaseT Receiver via CAT cable.
7	INPUT (1–4) Ports	HDMI input: connect to HDMI source device (e.g. Blu-ray player, PC, gaming console).
8	CONTROL Ports	TCP/IP (RJ45): connect to active Ethernet for LAN/Web GUI control. RS-232 (D-Sub 9): connect to PC or control system for RS-232 command control.

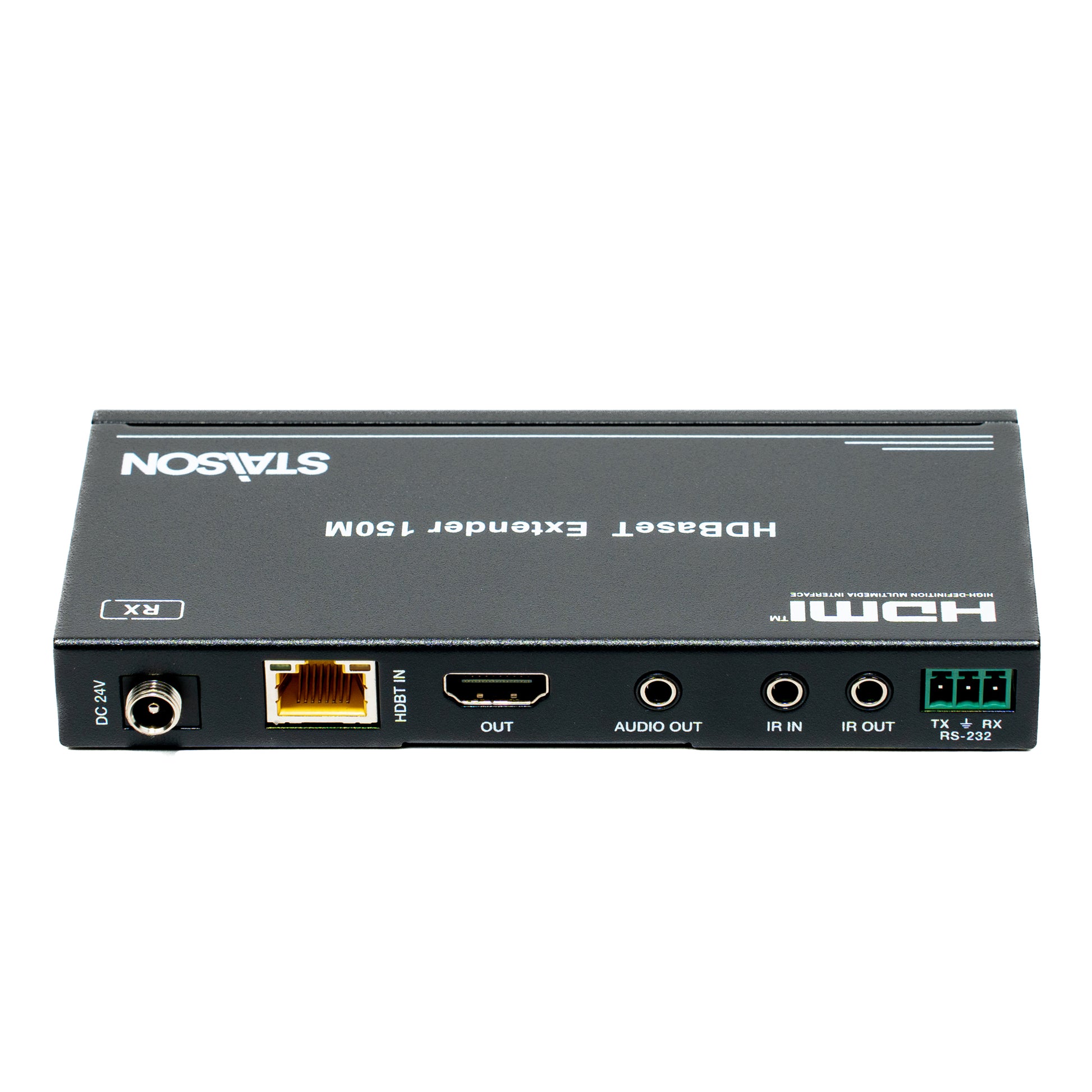

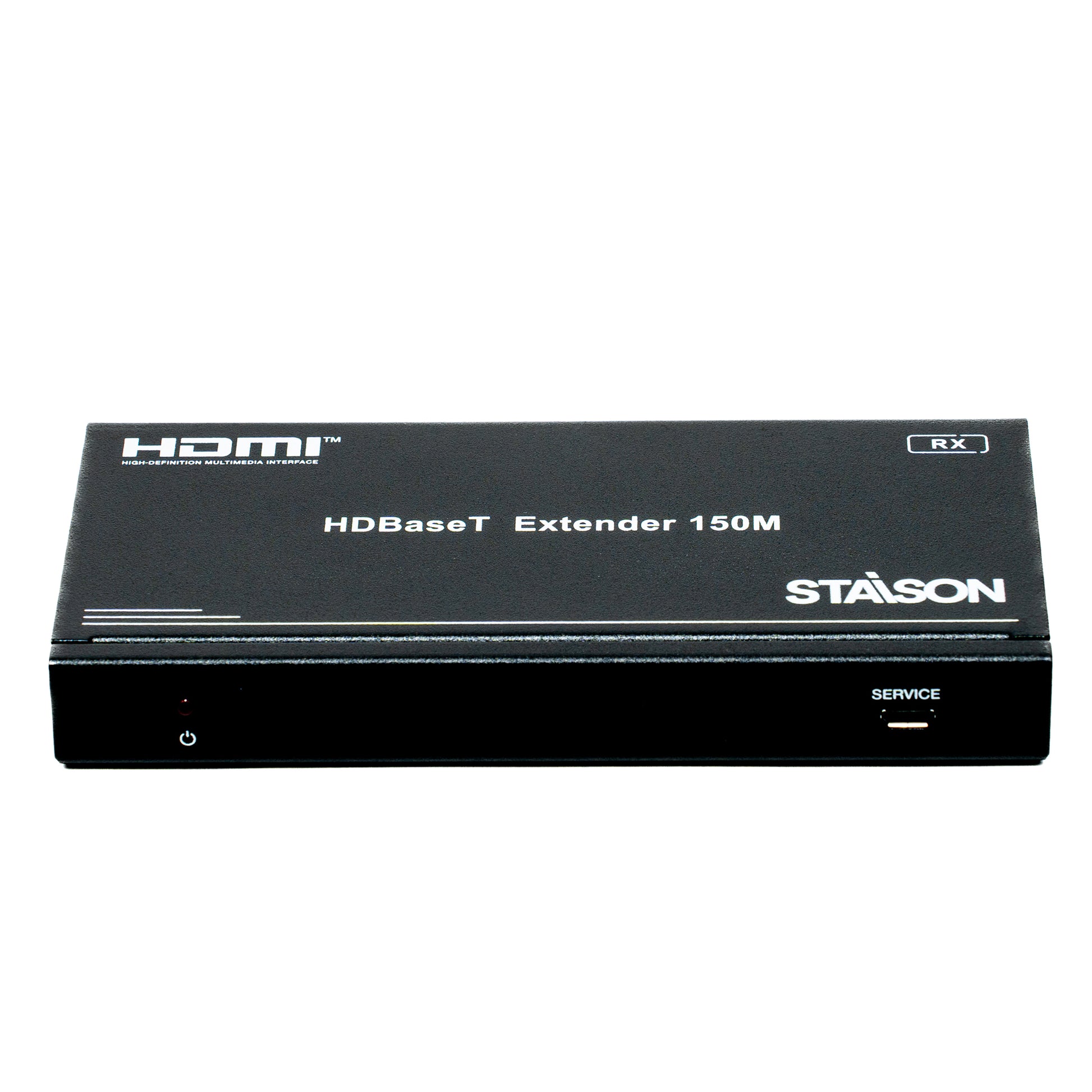

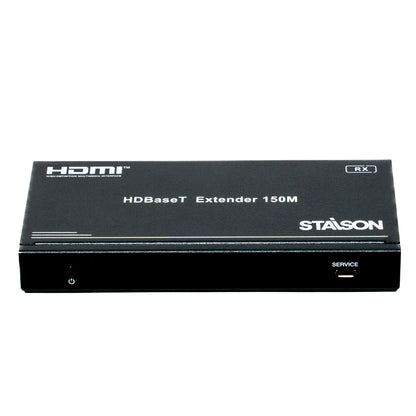

HDBaseT Receiver Panel





No.	Name	Function Description
1	Power LED	Red LED will be on when the receiver is powered on.
2	SERVICE Port	Mini-USB port for firmware updates.
3	DC 24V	24V/1A DC power input. Note: PoC is supported — if either the matrix or receiver is powered via adapter, the other unit does not require a separate power supply.
4	HDBT IN	RJ45 connector. Connect to the matching HDBT OUTPUT port on the matrix using a CAT5e/6/7 cable.
5	Connection Signal Indicator Light	On: good connection to matrix. Flashing: poor connection. Off: not connected.
6	Data Signal Indicator Light	On: HDMI signal with HDCP present. Flashing: HDMI signal without HDCP. Off: no HDMI signal.
7	OUT	HDMI output port. Connect to display device with HDMI cable.
8	AUDIO OUT	3.5mm analog audio output. Audio is extracted from the HDMI signal.
9	IR IN	Connect IR receiver cable. Signal is transmitted to the IR OUT port of the matrix.
10	IR OUT	Connect IR blaster cable. Signal originates from the IR IN port of the matrix.
11	RS-232	3-pin Phoenix connector. Connect to PC or control system for RS-232 pass-through between matrix and receiver.

IR Remote



Button	Function Description
① Power	Power on the Matrix or set it to standby mode.
② Output 1 — 1/2/3/4	Press 1, 2, 3 or 4 to select the corresponding input source for HDMI OUTPUT 1.
③ Output 2 — 1/2/3/4	Press 1, 2, 3 or 4 to select the corresponding input source for HDMI OUTPUT 2.
④ Output 3 — 1/2/3/4	Press 1, 2, 3 or 4 to select the corresponding input source for HDMI OUTPUT 3.
⑤ Output 4 — 1/2/3/4	Press 1, 2, 3 or 4 to select the corresponding input source for HDMI OUTPUT 4.
◄ / ► (per output)	Select the previous or next input source for the corresponding output.

IR Control System

The product is not only a matrix switch but also an extender. It supports bi-directional IR
control. When Matrix is connected to HDBaseT Receiver through Cat 5e/6/7 cable, you can
control remote display device (HDBaseT) or input source device (Matrix) through IR signal
transmission. But you must note that the IR signal transmission method is different from the
method from Matrix (local) to HDBaseT Receiver (remote) and from HDBaseT Receiver
(remote) to Matrix (local).

At the Matrix end (Local end): the IR signal is one-to-one transmission. For example, the
IR IN 1 port signal of the Matrix will emit to IR OUT port of the HDBaseT Receiver 1, and the
IR IN 3 port signal of the Matrix will emit to IR OUT port of the HDBaseT Receiver 3. It doesn’t
follow the video switch to change.  IR IN ALL port signal of the Matrix will emit to all IR OUT ports
of HDBaseT receivers simultaneously. Please see the following connection diagram.

At HDBaseT receiver (Remote end): IR signal follows video switch to change. For example,
the HDMI output signal on the HDBaseT Receiver 1 is from the HDMI INPUT 2 port, so IR
input signal of the HDBaseT Receiver 1 will emit to IR OUT 2 port of the Matrix. The HDMI
output signal on the HDBaseT Receiver 3 is from the HDMI INPUT 4 port. Then, IR input
signal of the HDBaseT Receiver 3 will emit to IR OUT 4 port of the Matrix etc. Any of
HDBaseT Receiver’s IR IN signal can output from IR OUT ALL port of the Matrix and the
IR OUT ALL signal of the Matrix depends on your IR remote of source device. Please see
the following connection diagram.

IR Cable Pin Assignment

RS-232 Control Command

The product also supports RS-232 control. You need a serial cable with RS-232 male head
and DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the RS
232 control port with DB 9 at the rear of the Matrix, and the USB head of the serial cable is
connected to a PC. The connection method is as follows:

 Application Example
