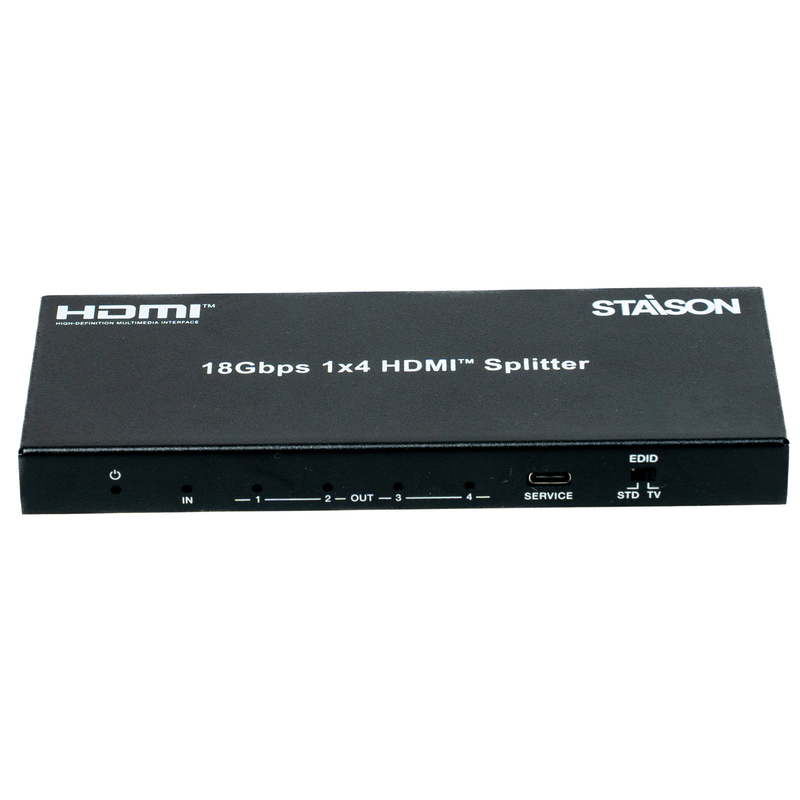

ST-NSPB14C 4K60 1x4 HDMI™ Splitter
- Black
- DC-powered
- Metal
- 4K ultra HD
- 1080p
- 720p
- Full HD
- HD
- HDCP 2.3
- HDCP 2.2
- HDCP 1.4
- HDR10
- HDR10+
- Dolby vision
- HLG
- EDID management
- Female
- LPCM
- DTS
- HDMI 2.0
Specifications
This 4K60 1×4 HDMI™ Splitter is designed with 1 HDMI input and 4 HDMI outputs, distributing 1 HD source signal to 4 display devices simultaneously. Video resolution is up to 4K2K@60Hz YCbCr 4:4:4, and digital audio format is up to LPCM 7.1CH. It supports advanced EDID management and is built to strict industry standards to prevent cross-talk and minimize signal attenuation — ensuring perfect high-quality HD signal transmission to every output. Widely used in multimedia conference halls, television teaching, large-screen displays and other applications.
Features
☆ HDCP 2.3/2.2/1.4 and DVI 1.0 compliant
☆ Video resolution up to 4K2K@60Hz YCbCr 4:4:4
☆ Audio format up to 7.1CH: LPCM, Dolby TrueHD, DTS-HD Master Audio
☆ Supports HDR, HDR10, HDR10+, Dolby Vision, HLG and 3D audio formats
☆ Advanced EDID management with STD and TV modes
☆ Compact design for easy and flexible installation
Package Contents
① 1x 4K60 1×4 HDMI™ Splitter
② 1x 5V/1A Power Supply
③ 1x User Manual
Specifications
| Technical | |
| Video Bandwidth | 18Gbps |
| Video Resolution (Input & Output) | 640×480p60, 800×600p60, 1024×768p60, 1280×1024p60, 1360×768p60, 1440×900p60, 1440×1050p60, 1600×1200p60, 480i59, 480p59, 576i50, 576p50, 720p50/59/60, 1080i50/59/60, 1080p23/24/25/29/30/50/59/60, 3840×2160p23/24/25/29/30, 4096×2160p23/24/25/29/30/60 |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.3 / 2.2 / 1.4 |
| DVI Compliance | DVI 1.0 |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR Formats | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| 3D Audio Format | Yes |
| Cable Length | 4K60: Up to 8m/26ft 1080p: Up to 15m/49ft Use of Premium High Speed HDMI cable is highly recommended. |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 1x HDMI IN [Type A, 19-pin female] |
| Output | 4x HDMI OUT [Type A, 19-pin female] |
| Control | 1x SERVICE [USB Type C, firmware update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 163mm [W] × 63mm [D] × 16mm [H] |
| Weight | 264g |
| Power Supply | DC 5V/1A |
| Power Consumption (Max) | 3W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~80% (relative humidity, non-condensing) |
| Storage Humidity | 10%~90% (relative humidity, non-condensing) |
Operation Controls and Functions
Front Panel
| No. | Name | Function Description |
|---|---|---|
| 1 | POWER LED | The red LED will be on when the device is powered on. |
| 2 | IN LED | The green LED will be on when a source device is connected. |
| 3 | OUT LED 1/2/3/4 | The corresponding green LEDs will be on when display devices are connected. |
| 4 | SERVICE | USB Type C port used for firmware update. |
| 5 | EDID Dial Switch | STD: All HDMI OUT ports output 1080p@60Hz 2CH audio by default. TV: Copy EDID from OUT 1 to all outputs. If no EDID is detected on OUT 1, the device will output 1080p@60Hz 2CH audio by default. |
Rear Panel
| No. | Name | Function Description |
|---|---|---|
| 6 | DC 5V | DC 5V/1A power input port. |
| 7 | HDMI IN | HDMI signal input port. Connect to an HDMI source device such as a DVD player or PS5 with HDMI cable. |
| 8 | HDMI OUT 1/2/3/4 | HDMI output ports. Connect to HDMI display devices such as a TV or monitor with HDMI cable. |
Application Example
This 4K60 1×4 HDMI™ Splitter is designed with 1 HDMI input and 4 HDMI outputs, distributing 1 HD source signal to 4 display devices simultaneously. Video resolution is up to 4K2K@60Hz YCbCr 4:4:4, and digital audio format is up to LPCM 7.1CH. It supports advanced EDID management and is built to strict industry standards to prevent cross-talk and minimize signal attenuation — ensuring perfect high-quality HD signal transmission to every output. Widely used in multimedia conference halls, television teaching, large-screen displays and other applications.
Features
☆ HDCP 2.3/2.2/1.4 and DVI 1.0 compliant
☆ Video resolution up to 4K2K@60Hz YCbCr 4:4:4
☆ Audio format up to 7.1CH: LPCM, Dolby TrueHD, DTS-HD Master Audio
☆ Supports HDR, HDR10, HDR10+, Dolby Vision, HLG and 3D audio formats
☆ Advanced EDID management with STD and TV modes
☆ Compact design for easy and flexible installation
Package Contents
① 1x 4K60 1×4 HDMI™ Splitter
② 1x 5V/1A Power Supply
③ 1x User Manual
Specifications
| Technical | |
| Video Bandwidth | 18Gbps |
| Video Resolution (Input & Output) | 640×480p60, 800×600p60, 1024×768p60, 1280×1024p60, 1360×768p60, 1440×900p60, 1440×1050p60, 1600×1200p60, 480i59, 480p59, 576i50, 576p50, 720p50/59/60, 1080i50/59/60, 1080p23/24/25/29/30/50/59/60, 3840×2160p23/24/25/29/30, 4096×2160p23/24/25/29/30/60 |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.3 / 2.2 / 1.4 |
| DVI Compliance | DVI 1.0 |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR Formats | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| 3D Audio Format | Yes |
| Cable Length | 4K60: Up to 8m/26ft 1080p: Up to 15m/49ft Use of Premium High Speed HDMI cable is highly recommended. |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 1x HDMI IN [Type A, 19-pin female] |
| Output | 4x HDMI OUT [Type A, 19-pin female] |
| Control | 1x SERVICE [USB Type C, firmware update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 163mm [W] × 63mm [D] × 16mm [H] |
| Weight | 264g |
| Power Supply | DC 5V/1A |
| Power Consumption (Max) | 3W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~80% (relative humidity, non-condensing) |
| Storage Humidity | 10%~90% (relative humidity, non-condensing) |
Operation Controls and Functions
Front Panel
| No. | Name | Function Description |
|---|---|---|
| 1 | POWER LED | The red LED will be on when the device is powered on. |
| 2 | IN LED | The green LED will be on when a source device is connected. |
| 3 | OUT LED 1/2/3/4 | The corresponding green LEDs will be on when display devices are connected. |
| 4 | SERVICE | USB Type C port used for firmware update. |
| 5 | EDID Dial Switch | STD: All HDMI OUT ports output 1080p@60Hz 2CH audio by default. TV: Copy EDID from OUT 1 to all outputs. If no EDID is detected on OUT 1, the device will output 1080p@60Hz 2CH audio by default. |
Rear Panel
| No. | Name | Function Description |
|---|---|---|
| 6 | DC 5V | DC 5V/1A power input port. |
| 7 | HDMI IN | HDMI signal input port. Connect to an HDMI source device such as a DVD player or PS5 with HDMI cable. |
| 8 | HDMI OUT 1/2/3/4 | HDMI output ports. Connect to HDMI display devices such as a TV or monitor with HDMI cable. |
