ST-NSPC12 48Gbps 1x2 HDMI Splitter
- Black
- AC-powered
- Metal
- 8K ultra HD
- 4K ultra HD
- 1080p
- HDMI
- HDCP 2.3
- HDR10+
- Dolby vision
- HLG
- EDID management
- Signal amplification
- Not supported
- Female
- LPCM
- DTS
Specifications
ST-NSPC12 48Gbps 1x2 HDMI Splitter is an advanced HDMI 2.1 splitter designed to distribute one HDMI signal to two HDMI displays simultaneously. The ST-NSPC12 48Gbps 1x2 HDMI Splitter supports up to 8K@60Hz, HDCP 2.3, HDR10+, Dolby Vision, EDID management, and 48Gbps bandwidth for professional AV applications.
ST-NSPC12 48Gbps 1x2 HDMI Splitter Features
☆ HDCP 2.3 compliant
☆ Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
☆ Video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
☆ HDMI 2.1 protocols supported: VRR, ALLM, QMS, QFT, SBTM
☆ Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
☆ LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X audio pass-through
☆ 8K to 4K or 8K/4K to 1080p auto downscaling on all outputs
☆ HDR to SDR auto converting on all outputs
☆ Advanced EDID management
☆ Compact design for easy and flexible installation
Package Contents
① 1x 48Gbps 1×2 HDMI™ Splitter
② 1x 5V/2A Multinational Power Supply
③ 1x User Manual
Specifications
| Technical | |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz (4:2:0) 12bit, 4K@120Hz (4:4:4) 12bit |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| HDMI 2.1 Protocols | VRR, ALLM, QMS, QFT, SBTM |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR Formats | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Cable Length | 8K: Up to 3m/10ft 4K60: Up to 8m/26ft 4K24 (Ultra HDMI 2.1): Up to 12m/39ft 1080p: Up to 15m/49ft Use of Premium High Speed HDMI cable is highly recommended. |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 1x HDMI IN [Type A, 19-pin female] |
| Output | 2x HDMI OUT [Type A, 19-pin female] |
| Control | 1x SERVICE [USB Type C, firmware update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 95mm [W] × 68mm [D] × 18mm [H] |
| Weight | 177g |
| Power Supply | Input: AC 100~240V 50/60Hz; Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 4.3W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~90% RH (non-condensing) |
Operation Controls and Functions

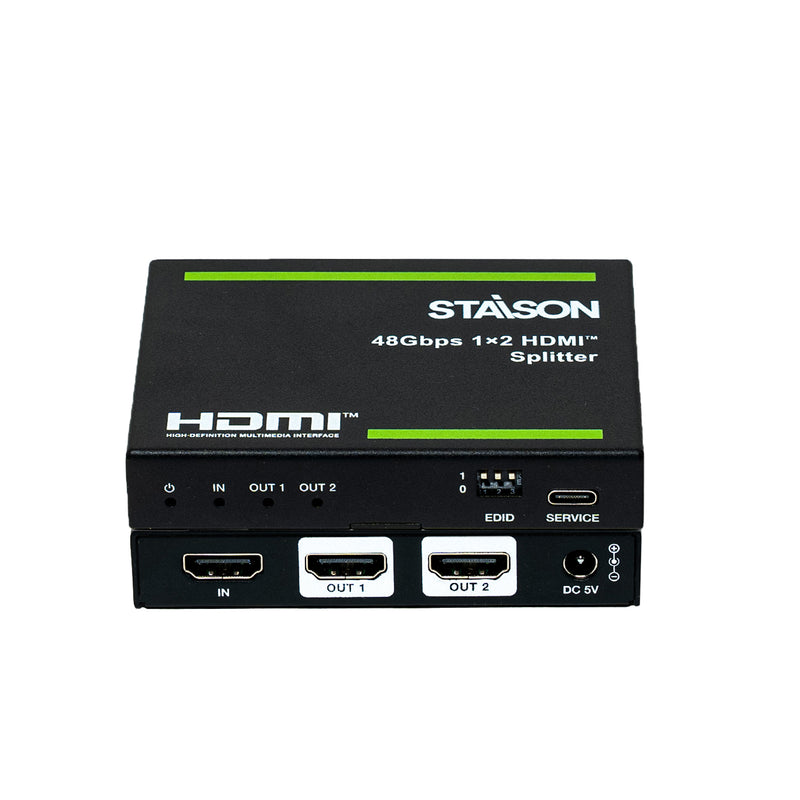

Front Panel
| No. | Name | Function Description |
|---|---|---|
| 1 | POWER LED | When the device is powered on, the red LED will be on. |
| 2 | IN LED | When the HDMI IN port connects to an active source device, the green LED will be on. |
| 3 | OUT LED (1~2) | When the HDMI OUT 1/2 port connects to a display device and outputs signal, the corresponding green LED will be on. |
| 4 | EDID DIP Switch | Use the DIP switch to set EDID: [DIP]=111: Copy OUT 1 port sink EDID (factory default) [DIP]=110: 4K60 (4:4:4), 2.0CH [DIP]=101: FRL12G 8K HDR, 2.0CH [DIP]=100: FRL12G 8K HDR, 5.1CH [DIP]=011: FRL12G 8K HDR, 7.1CH [DIP]=010: FRL10G 8K HDR, 2.0CH [DIP]=001: FRL10G 8K HDR, 5.1CH [DIP]=000: FRL10G 8K HDR, 7.1CH |
| 5 | SERVICE | USB Type C firmware update port. |
Rear Panel
| No. | Name | Function Description |
|---|---|---|
| 6 | IN Port | HDMI signal input port. Connect to an HDMI source device such as a DVD player or PS5 with HDMI cable. |
| 7 | OUT Port (1~2) | HDMI signal output ports. Connect to HDMI display devices such as a TV or monitor with HDMI cable. |
| 8 | DC 5V | DC 5V/2A power input port. |
Auto Downscaling & Auto Converting
This splitter supports independent auto downscaling and auto converting on all outputs. Before downscaling, it compares the EDID of all connected display devices and selects the minimum resolution to downscale and output. Examples of supported scenarios:
An 8K source connected to an 8K TV and a 4K SDR TV will bypass 8K HDR to the 8K TV and automatically downscale and convert to 4K SDR for the other output. A 4K source connected to an 8K TV and a 1080p SDR TV will bypass 4K HDR to the 8K TV and downscale/convert to 1080p SDR for the 1080p TV. A 1080p source connected to a 1080p DVI TV will output 1080p with no audio (DVI limitation).
Note: Downscaling will not work in the following conditions: (1) The input source is 8K DSC format. (2) The resolution of the input source is not supported by the splitter.
Application Example
ST-NSPC12 48Gbps 1x2 HDMI Splitter is an advanced HDMI 2.1 splitter designed to distribute one HDMI signal to two HDMI displays simultaneously. The ST-NSPC12 48Gbps 1x2 HDMI Splitter supports up to 8K@60Hz, HDCP 2.3, HDR10+, Dolby Vision, EDID management, and 48Gbps bandwidth for professional AV applications.
ST-NSPC12 48Gbps 1x2 HDMI Splitter Features
☆ HDCP 2.3 compliant
☆ Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
☆ Video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
☆ HDMI 2.1 protocols supported: VRR, ALLM, QMS, QFT, SBTM
☆ Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
☆ LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X audio pass-through
☆ 8K to 4K or 8K/4K to 1080p auto downscaling on all outputs
☆ HDR to SDR auto converting on all outputs
☆ Advanced EDID management
☆ Compact design for easy and flexible installation
Package Contents
① 1x 48Gbps 1×2 HDMI™ Splitter
② 1x 5V/2A Multinational Power Supply
③ 1x User Manual
Specifications
| Technical | |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz (4:2:0) 12bit, 4K@120Hz (4:4:4) 12bit |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| HDMI 2.1 Protocols | VRR, ALLM, QMS, QFT, SBTM |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR Formats | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Cable Length | 8K: Up to 3m/10ft 4K60: Up to 8m/26ft 4K24 (Ultra HDMI 2.1): Up to 12m/39ft 1080p: Up to 15m/49ft Use of Premium High Speed HDMI cable is highly recommended. |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input | 1x HDMI IN [Type A, 19-pin female] |
| Output | 2x HDMI OUT [Type A, 19-pin female] |
| Control | 1x SERVICE [USB Type C, firmware update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 95mm [W] × 68mm [D] × 18mm [H] |
| Weight | 177g |
| Power Supply | Input: AC 100~240V 50/60Hz; Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 4.3W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~90% RH (non-condensing) |
Operation Controls and Functions
Front Panel
| No. | Name | Function Description |
|---|---|---|
| 1 | POWER LED | When the device is powered on, the red LED will be on. |
| 2 | IN LED | When the HDMI IN port connects to an active source device, the green LED will be on. |
| 3 | OUT LED (1~2) | When the HDMI OUT 1/2 port connects to a display device and outputs signal, the corresponding green LED will be on. |
| 4 | EDID DIP Switch | Use the DIP switch to set EDID: [DIP]=111: Copy OUT 1 port sink EDID (factory default) [DIP]=110: 4K60 (4:4:4), 2.0CH [DIP]=101: FRL12G 8K HDR, 2.0CH [DIP]=100: FRL12G 8K HDR, 5.1CH [DIP]=011: FRL12G 8K HDR, 7.1CH [DIP]=010: FRL10G 8K HDR, 2.0CH [DIP]=001: FRL10G 8K HDR, 5.1CH [DIP]=000: FRL10G 8K HDR, 7.1CH |
| 5 | SERVICE | USB Type C firmware update port. |
Rear Panel
| No. | Name | Function Description |
|---|---|---|
| 6 | IN Port | HDMI signal input port. Connect to an HDMI source device such as a DVD player or PS5 with HDMI cable. |
| 7 | OUT Port (1~2) | HDMI signal output ports. Connect to HDMI display devices such as a TV or monitor with HDMI cable. |
| 8 | DC 5V | DC 5V/2A power input port. |
Auto Downscaling & Auto Converting
This splitter supports independent auto downscaling and auto converting on all outputs. Before downscaling, it compares the EDID of all connected display devices and selects the minimum resolution to downscale and output. Examples of supported scenarios:
An 8K source connected to an 8K TV and a 4K SDR TV will bypass 8K HDR to the 8K TV and automatically downscale and convert to 4K SDR for the other output. A 4K source connected to an 8K TV and a 1080p SDR TV will bypass 4K HDR to the 8K TV and downscale/convert to 1080p SDR for the 1080p TV. A 1080p source connected to a 1080p DVI TV will output 1080p with no audio (DVI limitation).
Note: Downscaling will not work in the following conditions: (1) The input source is 8K DSC format. (2) The resolution of the input source is not supported by the splitter.
Application Example
