ST-NSPC22 8K Two-Input Dual View HDMI Splitter
- Black
- AC-powered
- Metal
- 8K ultra HD
- 4K ultra HD
- 1080p
- HDMI
- HDCP 2.3
- Push-button
- Remote control
- HDR10
- HDR10+
- Dolby vision
- HLG
- EDID management
- Signal amplification
- Female
- LPCM
- DTS
Specifications

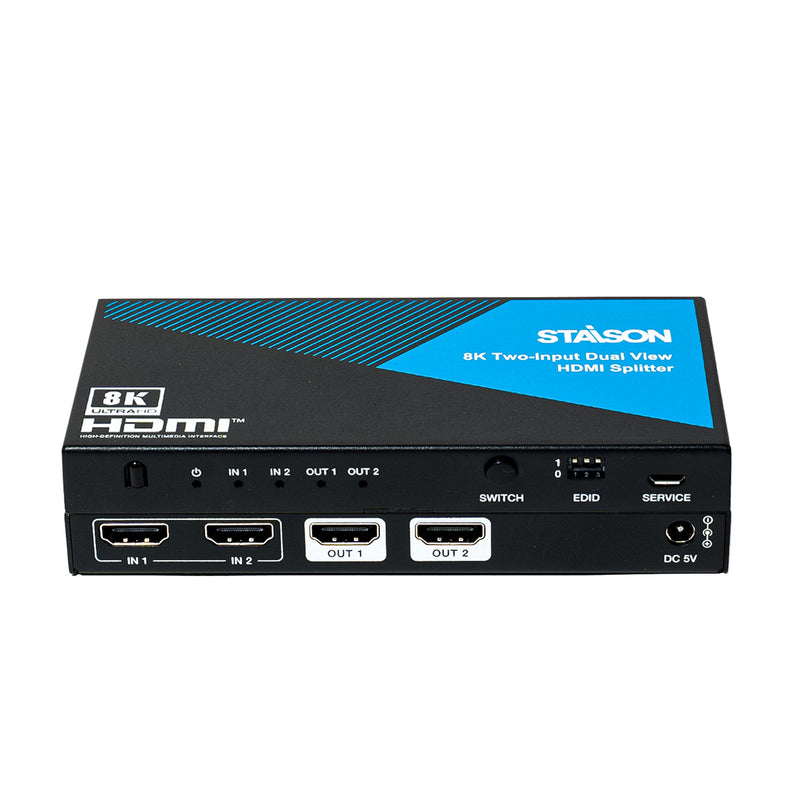

ST-NSPC22 8K Two-Input Dual View HDMI Splitter is a professional HDMI 2.1 splitter that switches between two HDMI input sources and distributes the selected signal to two HDMI displays simultaneously. It supports up to 8K@60Hz resolution, HDR10+, Dolby Vision, HDCP 2.3, and advanced EDID management for professional AV applications.
The ST-NSPC22 8K Two-Input Dual View HDMI Splitter supports 40Gbps bandwidth, dual HDMI output, IR remote control, and reliable 8K signal transmission.
Designed for conference rooms, digital signage, education, and commercial AV installations, the ST-NSPC22 8K Two-Input Dual View HDMI Splitter delivers high-performance HDMI distribution with HDMI 2.1 compatibility.
Features
☆ HDCP 2.3 compliant
☆ Support 40Gbps video bandwidth
☆ Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, as specified in HDMI 2.1
☆ VRR, FVA, ALLM supported
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
☆ Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
☆ 2x2 Switch with Dual Output
☆ Built-in Equalizer, Retiming and Driver
☆ Advanced EDID management
☆ Support IR remote control and front panel button switching
☆ Compact design for easy and flexible installation
The ST-NSPC22 8K Two-Input Dual View HDMI Splitter is ideal for professional AV systems, conference rooms, classrooms, and digital signage applications.
Package Contents
① 1x 8K Two-Input Dual View HDMI Splitter
② 1x IR Remote
③ 1x 5V/2A Multinational Power Supply
④ 1x User Manual
The ST-NSPC22 8K Two-Input Dual View HDMI Splitter provides reliable 8K HDMI distribution with advanced EDID management and HDMI 2.1 support.
Choose the ST-NSPC22 8K Two-Input Dual View HDMI Splitter for high-performance dual HDMI output, HDR support, and seamless signal switching.
Specifications
| Technical | |
| Video Bandwidth | 40Gbps |
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connection | |
| Input | 2x HDMI IN [Type A, 19-pin female] |
| Output | 2x HDMI OUT [Type A, 19-pin female] |
| Control | 1x SERVICE [Micro USB, firmware update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 145mm [W] × 68mm [D] × 17mm [H] |
| Weight | 265g |
| Power Supply | Input: AC100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 6.15W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~90% RH (non-condensing) |
Operation Controls and Functions
Front Panel
| No. | Name | Function Description |
|---|---|---|
| 1 | IR Window | IR input signal receiving window. |
| 2 | POWER LED | Green ON: The device is working. Red ON: The device is in standby mode. |
| 3 | IN LED (1~2) | When the HDMI IN 1/2 port is selected as the signal source input channel, the corresponding green LED will be on. |
| 4 | OUT LED (1~2) | When the HDMI OUT 1/2 port connects a display device and outputs signal, the corresponding green LED will be on. |
| 5 | SWITCH Button | Used to select signal source. Pressing this button will allow the device to switch any of the two HDMI input signals and distribute it to two displays simultaneously. |
Rear Panel
| No. | Name | Function Description |
|---|---|---|
| 6 | EDID DIP Switch | Use the DIP switch to set EDID: 111 – Copy OUT1 port sink EDID (factory default) 110 – HDMI 1080p@60Hz, Audio 2ch PCM 101 – HDMI 4K@60Hz 4:4:4, Audio 2ch PCM, HDR 100 – HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY, HDR 011 – HDMI 4K@60Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD, HDR 010 – HDMI 8K@60Hz 4:2:0 + 8K@30Hz 4:4:4, 4K@120Hz 4:4:4, Audio 2ch PCM, HDR 001 – HDMI 8K@60Hz 4:2:0 + 8K@30Hz 4:4:4, 4K@120Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY, HDR 000 – HDMI 8K@60Hz 4:2:0 + 8K@30Hz 4:4:4, 4K@120Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD, HDR |
| 7 | SERVICE Port | Firmware update and debug port [Micro USB]. |
| 8 | IN (1~2) Port | HDMI signal input port, connecting to HDMI source device such as DVD or PS5 with an HDMI cable. |
| 9 | OUT (1~2) Port | HDMI signal output port, connecting to HDMI display device such as TV or Monitor with an HDMI cable. |
| 10 | DC 5V | DC 5V/2A power input port. |
IR Remote
Recommended HDMI Cable
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
|---|---|---|---|---|
| HDMI Cable Length (IN/OUT) | 3m / 10ft | 8m / 26ft | 12m / 39ft | 15m / 49ft |
| HDMI Cable Type | Ultra HDMI 2.1 | HDMI 2.0 | HDMI 1.4 | HDMI 1.4 |
The use of "Premium High Speed HDMI" cable is highly recommended.
Application Example
ST-NSPC22 8K Two-Input Dual View HDMI Splitter is a professional HDMI 2.1 splitter that switches between two HDMI input sources and distributes the selected signal to two HDMI displays simultaneously. It supports up to 8K@60Hz resolution, HDR10+, Dolby Vision, HDCP 2.3, and advanced EDID management for professional AV applications.
The ST-NSPC22 8K Two-Input Dual View HDMI Splitter supports 40Gbps bandwidth, dual HDMI output, IR remote control, and reliable 8K signal transmission.
Designed for conference rooms, digital signage, education, and commercial AV installations, the ST-NSPC22 8K Two-Input Dual View HDMI Splitter delivers high-performance HDMI distribution with HDMI 2.1 compatibility.
Features
☆ HDCP 2.3 compliant
☆ Support 40Gbps video bandwidth
☆ Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, as specified in HDMI 2.1
☆ VRR, FVA, ALLM supported
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
☆ Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
☆ 2x2 Switch with Dual Output
☆ Built-in Equalizer, Retiming and Driver
☆ Advanced EDID management
☆ Support IR remote control and front panel button switching
☆ Compact design for easy and flexible installation
The ST-NSPC22 8K Two-Input Dual View HDMI Splitter is ideal for professional AV systems, conference rooms, classrooms, and digital signage applications.
Package Contents
① 1x 8K Two-Input Dual View HDMI Splitter
② 1x IR Remote
③ 1x 5V/2A Multinational Power Supply
④ 1x User Manual
The ST-NSPC22 8K Two-Input Dual View HDMI Splitter provides reliable 8K HDMI distribution with advanced EDID management and HDMI 2.1 support.
Choose the ST-NSPC22 8K Two-Input Dual View HDMI Splitter for high-performance dual HDMI output, HDR support, and seamless signal switching.
Specifications
| Technical | |
| Video Bandwidth | 40Gbps |
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connection | |
| Input | 2x HDMI IN [Type A, 19-pin female] |
| Output | 2x HDMI OUT [Type A, 19-pin female] |
| Control | 1x SERVICE [Micro USB, firmware update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 145mm [W] × 68mm [D] × 17mm [H] |
| Weight | 265g |
| Power Supply | Input: AC100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 6.15W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~90% RH (non-condensing) |
Operation Controls and Functions
Front Panel
| No. | Name | Function Description |
|---|---|---|
| 1 | IR Window | IR input signal receiving window. |
| 2 | POWER LED | Green ON: The device is working. Red ON: The device is in standby mode. |
| 3 | IN LED (1~2) | When the HDMI IN 1/2 port is selected as the signal source input channel, the corresponding green LED will be on. |
| 4 | OUT LED (1~2) | When the HDMI OUT 1/2 port connects a display device and outputs signal, the corresponding green LED will be on. |
| 5 | SWITCH Button | Used to select signal source. Pressing this button will allow the device to switch any of the two HDMI input signals and distribute it to two displays simultaneously. |
Rear Panel
| No. | Name | Function Description |
|---|---|---|
| 6 | EDID DIP Switch | Use the DIP switch to set EDID: 111 – Copy OUT1 port sink EDID (factory default) 110 – HDMI 1080p@60Hz, Audio 2ch PCM 101 – HDMI 4K@60Hz 4:4:4, Audio 2ch PCM, HDR 100 – HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY, HDR 011 – HDMI 4K@60Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD, HDR 010 – HDMI 8K@60Hz 4:2:0 + 8K@30Hz 4:4:4, 4K@120Hz 4:4:4, Audio 2ch PCM, HDR 001 – HDMI 8K@60Hz 4:2:0 + 8K@30Hz 4:4:4, 4K@120Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY, HDR 000 – HDMI 8K@60Hz 4:2:0 + 8K@30Hz 4:4:4, 4K@120Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD, HDR |
| 7 | SERVICE Port | Firmware update and debug port [Micro USB]. |
| 8 | IN (1~2) Port | HDMI signal input port, connecting to HDMI source device such as DVD or PS5 with an HDMI cable. |
| 9 | OUT (1~2) Port | HDMI signal output port, connecting to HDMI display device such as TV or Monitor with an HDMI cable. |
| 10 | DC 5V | DC 5V/2A power input port. |
IR Remote
Recommended HDMI Cable
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
|---|---|---|---|---|
| HDMI Cable Length (IN/OUT) | 3m / 10ft | 8m / 26ft | 12m / 39ft | 15m / 49ft |
| HDMI Cable Type | Ultra HDMI 2.1 | HDMI 2.0 | HDMI 1.4 | HDMI 1.4 |
The use of "Premium High Speed HDMI" cable is highly recommended.
Application Example
| Dimensions | 10 x 8 x 5 cm |
| Weight | 500g |
| Material | Premium aluminum alloy |
| Color | Black, Silver, Gold |
| Warranty | 2 years manufacturer warranty |
