ST-NAUD2DEC Dante 2CH Analog Audio Decoder with POE
ST-NAUD2DEC Dante 2CH Analog Audio Decoder with POE
Regular price
0.00 SAR
Regular price
Sale price
0.00 SAR
Model ST-NAUD2DEC · VER 1.0
Dante 2CH Analog Audio Decoder with POE
Dante Network → Balanced / Unbalanced Analog Output · PoE Powered · AES67 RTP · 3-Level Gain
This Dante 2CH Analog Audio Decoder is an audio receiver based on the Dante Ultimo solution. It supports balanced/unbalanced audio output and 3-level gain adjustment. It receives audio signals from the transmitting end through the network (Dante), then decodes and outputs the audio as analog audio. It supports POE function for simplified single-cable installation.
Features
Analog audio output supports balanced/unbalanced audio output (unbalanced: connect "+" and "GND")
Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
Dante solution supports AES67 RTP audio transmission
Audio output supports 3-level gain adjustment: +18dBu, 0dBu (default) and -10dBV
Supports DC 12V power supply and POE function (IEEE802.3af Class 0)
Package Contents
11× Dante 2CH Analog Audio Decoder
21× 6-pin 3.81mm Phoenix Connector (male)
31× 2-pin 3.81mm Phoenix Connector (male)
41× User Manual
Specifications
| Parameter | Detail |
|---|---|
| Audio Input | 1× DANTE (RJ45 connector, POE) |
| Audio Output | 1× AUD — 6-pin Phoenix connector, 3.81mm (2CH balanced/unbalanced) |
| Power Input | 1× PWR — 2-pin Phoenix connector, 3.81mm (DC 12V) |
| Audio Format | PCM 2.0 — 44.1kHz / 48kHz / 96kHz up to 24bit |
| Gain Adjustment | 3-level: +18dBu / 0dBu (default) / -10dBV |
| Audio Output Type | Balanced or Unbalanced (unbalanced: use "+" and "GND") |
| Dante AES67 | Supports AES67 RTP audio transmission |
| Control Method | Dante Controller |
| Network Bandwidth | 100M |
| Transmission Distance | 100m (CAT6 / 6A) |
| Power Supply | DC 12V input — or — POE IEEE802.3af Class 0 |
| Power Consumption | 1.32W |
| Housing | Metal Enclosure — Black |
| Dimensions | 120mm [W] × 47mm [D] × 26mm [H] |
| Weight | 186g |
| Operating Temperature | 32–104°F / 0–40°C |
| Storage Temperature | -4–140°F / -20–60°C |
| Relative Humidity | 20–90% RH (no condensation) |
Operation Controls and Functions
Device Panel — Controls & Ports
| No. | Name | Function Description |
|---|---|---|

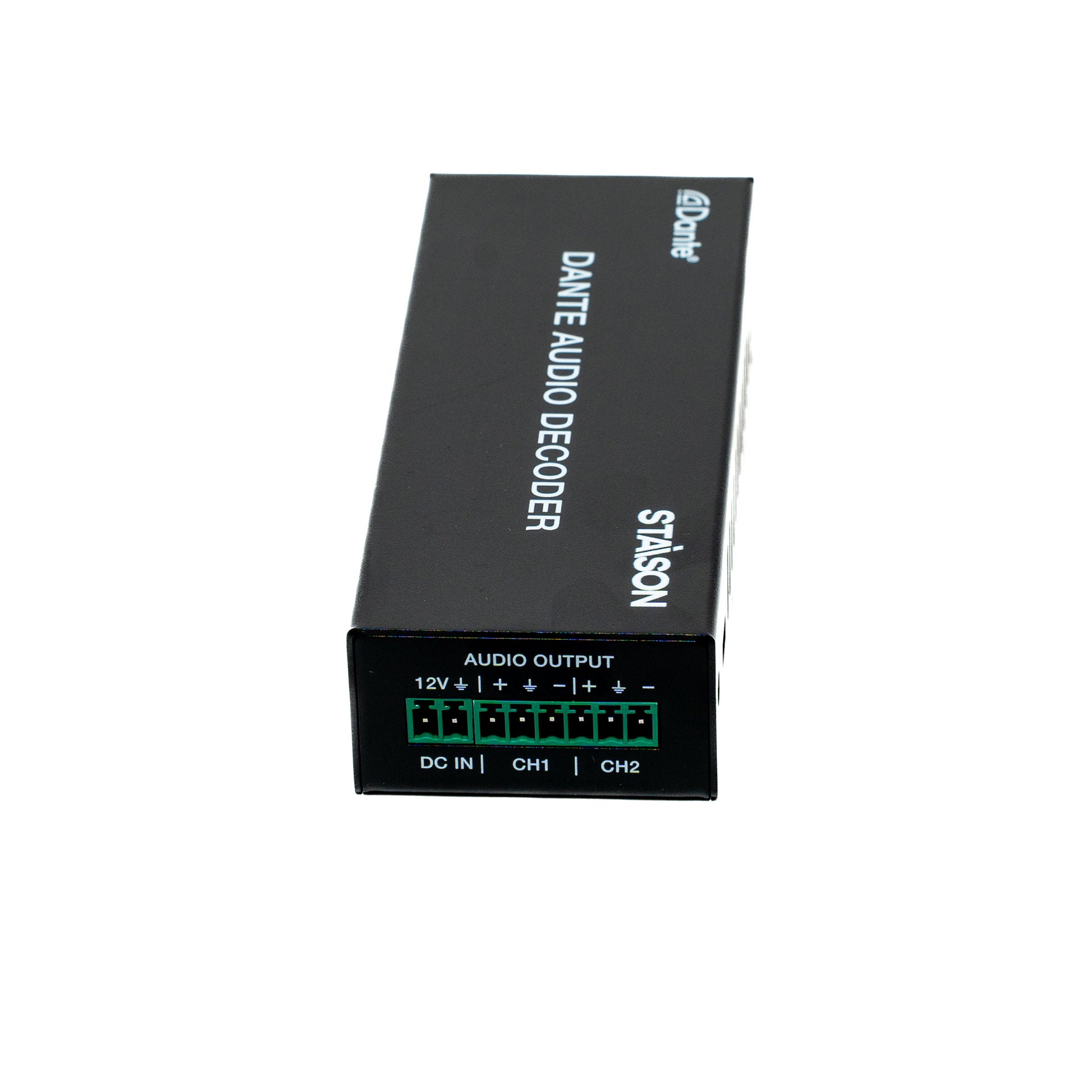

| 1 | AUDIO OUTPUT (CH1 / CH2) | 2-channel analog audio output ports via 6-pin Phoenix connector. Supports both balanced and unbalanced audio output. For unbalanced wiring, connect to "+" and "GND" pins. |
| 2 | DC IN | DC 12V power input port via 2-pin Phoenix connector (3.81mm). |

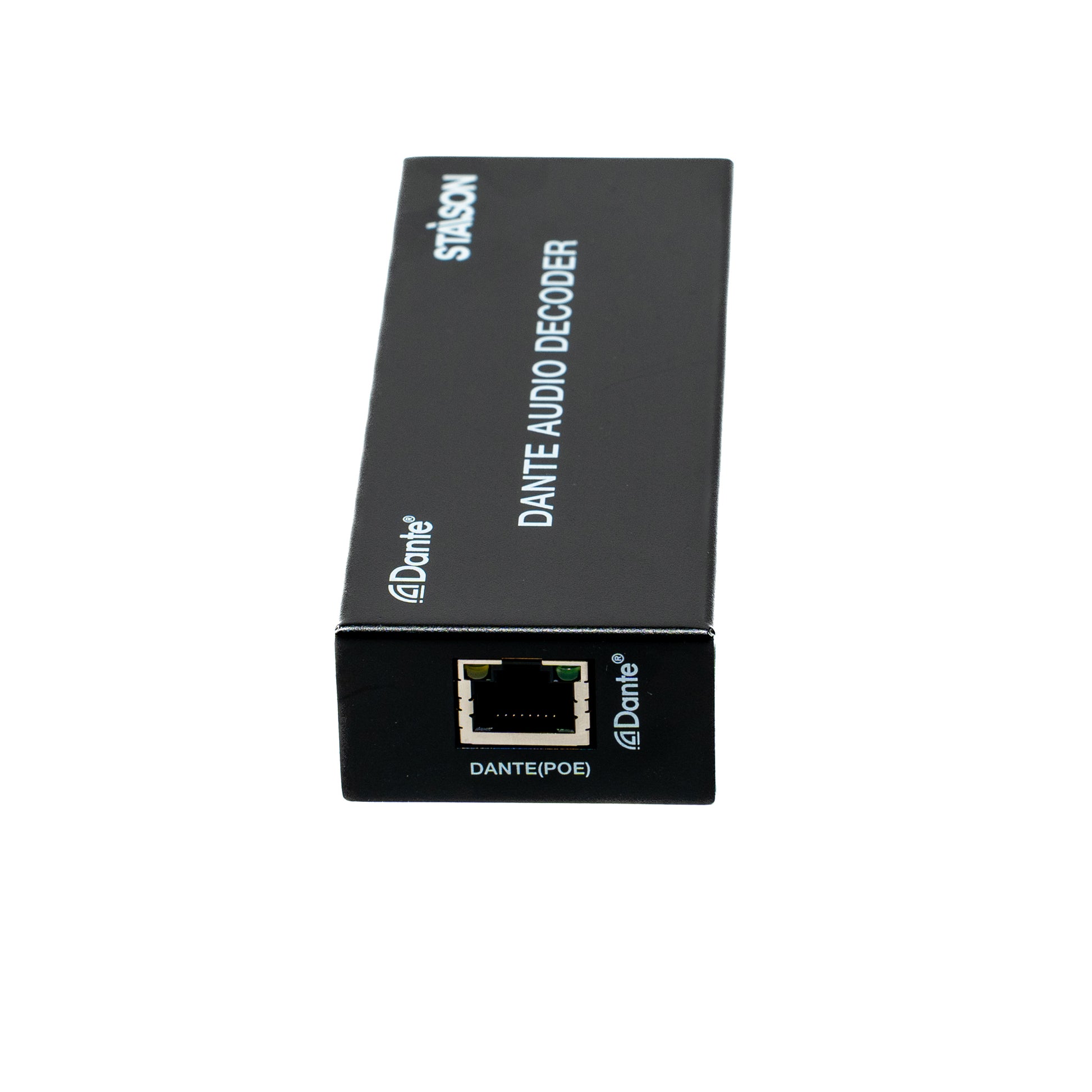

| 3 | DANTE (POE) | Dante digital audio input port — connect to Network Switch via RJ45 cable, supporting PD power supply (PoE). Green LINK LED: Always on after normal connection. Yellow DATA LED: Flashing when data is transmitting. |

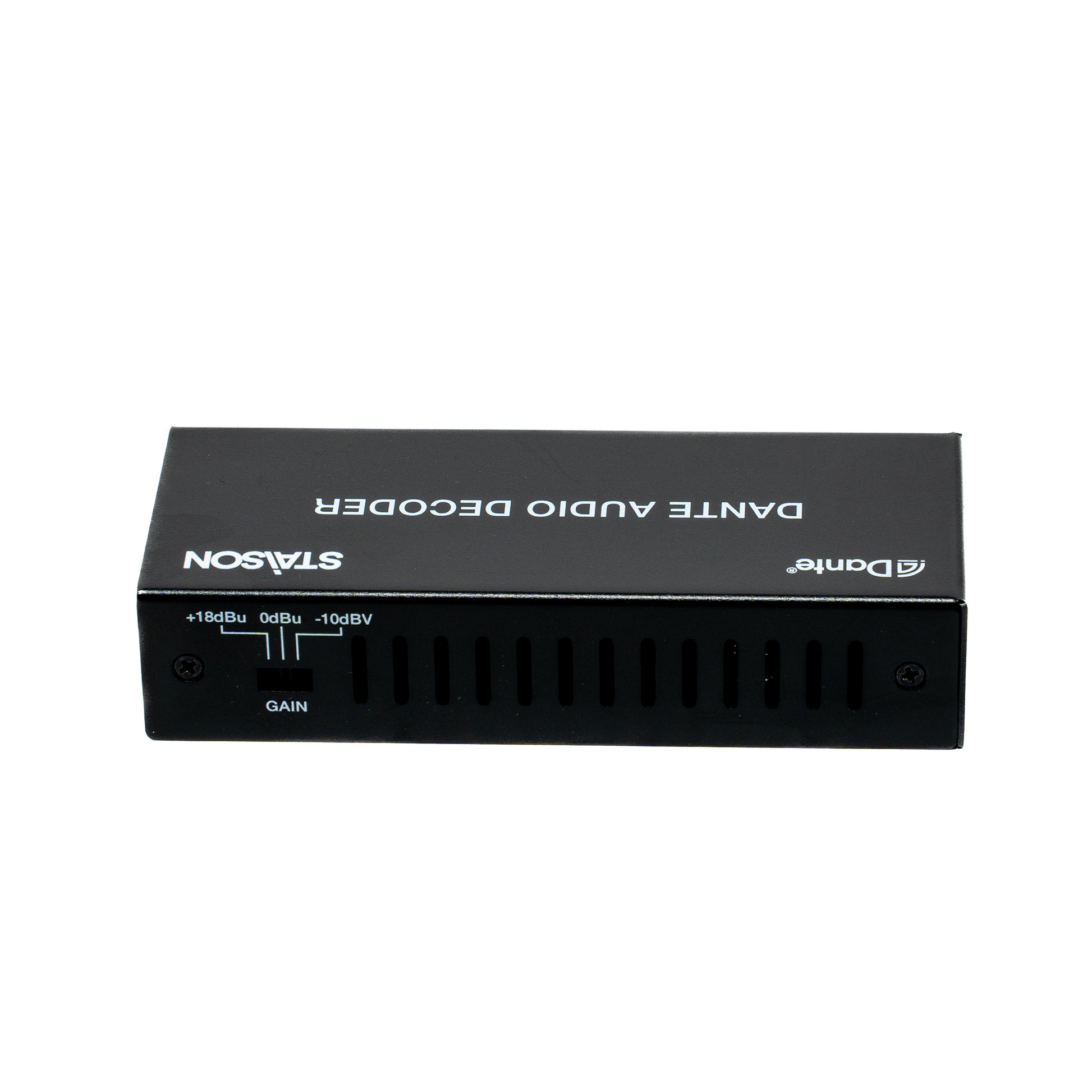

| 4 | GAIN Switch | Used for audio output gain adjustment. Three selectable levels: +18dBu — High gain 0dBu — Default (standard line level) -10dBV — Consumer level |
Application Example
How it works: A USB Audio Encoder/Decoder (connected to a Laptop) and an Audio Encoder (connected to a DVD player) send Dante digital audio through a 100/1000M Network Switch. The Dante 2CH Analog Audio Decoder (this product) receives the Dante audio from the network, decodes it, and outputs balanced/unbalanced L/R analog audio directly to Speakers — enabling flexible, cable-efficient professional audio distribution.
Dante® is a registered trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners.
