ST-NEHB100HCEU3KC 4K HDMITM/USB-C over HDBaseT 3.0 Extender (100m) with USB/1G LAN and HDMITM/USB-C Dual Outputs
ST-NEHB100HCEU3KC 4K HDMITM/USB-C over HDBaseT 3.0 Extender (100m) with USB/1G LAN and HDMITM/USB-C Dual Outputs
This 4K HDBaseT 3.0 Extender can extend uncompressed HDMI™/USB-C
signals, bi-directional IR, RS-232, and USB signals up to 328ft/100m via a
single CAT6A/7 cable. Video resolution is up to 4K2K@60Hz YUV 4:4:4.
The transmitter features 1x HDMI™ input, 1x USB-C input (A/V+USB 3.2+1G+
100W charging), 1x USB 3.2 Host and 3x USB 3.2 Device ports. It can switch
between HDBT Standard Mode (as factory default) and HDBT Long Reach
Mode. It supports EDID management. The receiver features 1x HDMI™ output,
1x USB-C output (DP output + USB 2.0 device port), 3x USB 2.0 Device ports.
Transmitter and receiver support analog audio de-embedding, bi-directional IR,
RS-232 and 1G LAN pass-through. This product supports bi-directional 24V PoC
function.
The Extender offers the most convenient solution for video extension via a
single CAT cable with long distance capability, and it is a perfect solution for
home/commercial applications.
Features
☆ Compliant with HDCP 2.2 and DisplayPort 1.4a, 18Gbps video bandwidth
☆ HDBaseT 3.0 VS3000 chipset based design
☆ Support video resolution up to 4K2K@60Hz (YUV 4:4:4), as specified in
HDMI™ 2.0b
☆ 4K60/4K30/1080P signal transmission distance up to 328ft/100m via a
single CAT6A/7 cable (HDBT Standard Mode)
☆ 1080P 8bit signal transmission distance up to 492ft/150m via a single
CAT6A/7 cable (HDBT Long Reach Mode)
☆ TX features 1x HDMI™ input, 1x USB-C input, 1x HDMI™/HDBT output,
1x USB 3.2 host and 3x USB 3.2 clients
☆ RX features 1x HDBT input, 1x HDMI™ output, 1x USB-C output,
3x USB 2.0 clients
☆ USB-C and HDMI™ signal inputs support auto or manual switching mode
☆ Auto switching supports HDMI™ 5V or signal detect selection
☆ TX USB-C host port supports DP-ALT mode for A/V, USB 3.2 data, 1G
Ethernet and power charging up to 100 watts
☆ RX USB-C OUT port supports AV signal output and USB 2.0 signal transfer
☆ TX/RX USB-A client ports VBUS on or off depends on USB host is
connected or not
☆ HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
☆ 4K to 1080p downscaling on HDMI™ output, no frame rate conversion
☆ Both TX and RX support analog audio de-embedding
☆ RS-232 signal pass-through and API control
☆ RS-232/CEC control external device power on/off
☆ 1G Ethernet and bi-directional IR signal pass-through
☆ Advanced EDID management
☆ Support bi-directional 24V PoC, with PoC switch (USB-C charging only
from TX power supply)
Package Contents
① 1× 4K HDMI™/USB-C over HDBaseT 3.0 Extender (Transmitter)
② 1× 4K HDMI™/USB-C over HDBaseT 3.0 Extender (Receiver)
③ 2× 3pin-3.5mm Phoenix Connector (male)
④ 2× 5pin-3.5mm Phoenix Connector (male)
⑤ 4× Mounting Ear
⑥ 8× Machine Screw (KM3*6)
⑦ 1× IR Blaster Cable (1.5m)
⑧ 1× IR Receiver Cable (1.5m)
⑨ 1× 24V/7.5A Desktop Power Supply
⑩ 1× User Manual
Specifications
| Technical | |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60), 3840x2160p100Hz(2160p100), 3840x2160p120Hz(2160p120), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz |
| HDMI™ Compliance | HDMI™ 2.0b |
| DP Compliance | DisplayPort 1.4a |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12bit |
| Audio Formats (HDMI™/USB-C/HDBT) | LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Analog Audio | LPCM 2CH (sample rate 32~192kHz) |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| IR Level | 12Vp-p |
| Transmission Distance | |
| CAT6A/7 cable | 328ft/100m @ 4K60 (HDBT Standard Mode) |
| CAT6A/7 cable | 492ft/150m @ 1080P (HDBT Long Reach Mode) |
| HDMI™/USB-C passive cable | 16.4ft/5m |
| USB 3.2 Gen 1 5Gbps passive cable | 5.9ft/1.8m |
| Audio Parameters | |
| Output Level (Max) | Max 8.2dBu (2Vrms) balanced audio Max 2.2dBu (1Vrms) unbalanced audio |
| Frequency Response | 20Hz to 20kHz (-/+0.5dB) |
| Audio S/N Ratio | > 90dB@0dBu, 1kHzA-weighted |
| Output Impedance | 600 Ohm balanced 300 Ohm unbalanced |
| Dynamic Range | > 90dB@0dBu, 1kHzA-weighted |
| Audio THD+N | < 0.01% at +4dBu, 1KHz |
| Audio Output Delay | <1ms |
| USB Support | |
| USB Host Ports | TX: 1x USB-C 3.2 Gen 1 + 1 USB-B 3.2 Gen 1 RX: None |
| USB Speed | TX: USB 3.2 Gen 1 5Gbps, compatible with USB 2.0 480Mbps RX: USB 2.0 350Mbps |
| USB Device Ports | TX: 1x USB-C 3.2 Gen 1 + 2x USB-A 3.2 Gen 1 RX: 2x USB-C 2.0 + 2x USB-A 2.0 |
| USB Power Supply | Host ports: TX: 1x USB-C port (100W charging) Device ports: TX: 1x USB-C port (1A) + 2x USB-A port (1.5A) RX: 2x USB-C port (1A) + 2x USB-A port (1A) |
| Connection – Transmitter | |
| Input | 1x IN [HDMI™ Type A, 19-pin female] 1x USB-C IN [USB Type C, 24-pin female] |
| Output | 1x HDBaseT OUT [RJ45, HDBT output with 24V PoC] 1x OUT [HDMI™ Type A, 19-pin female] 1x AUDIO OUT [5pin-3.5mm phoenix connector] |
| Control | 1x LAN [RJ45 connector, 1G Ethernet pass-through] 1x RS-232 [3pin-3.5mm phoenix connector] 1x SERVICE [USB-C with USB 2.0 only, 12-pin female] 1x USB HOST [USB Type B, 9-pin female] 1x USB DEVICES [USB 3.2 Type C, 24-pin female] 2x USB DEVICES [USB 3.2 Type A, 9-pin female] 1x IR IN [3.5mm audio jack, 12V level] 1x IR OUT [3.5mm audio jack] |
| Connection – Receiver | |
| Input | 1x HDBaseT IN [RJ45, HDBT input with 24V PoC] |
| Output | 1x OUT [HDMI™ Type A, 19-pin female] 1x USB-C OUT [USB Type C, 24-pin female] 1x AUDIO OUT [5pin-3.5mm phoenix connector] |
| Control | 1x LAN [RJ45 connector, 1G Ethernet pass-through] 1x RS-232 [3pin-3.5mm phoenix connector] 1x SERVICE [USB-C with USB 2.0 only, 12-pin female] 1x USB DEVICE [USB 2.0 Type C, 12-pin female] 2x USB DEVICES [USB 2.0 Type A, 4-pin female] 1x IR IN [3.5mm audio jack, 12V level] 1x IR OUT [3.5mm audio jack] |
| Power | |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 24V/7.5A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption (Max) | 173W (Power supply from TX, 100W USB-C charging, PoC to RX) 73W (Power supply from TX or RX, without USB-C charging) |
| Mechanical | |
| Dimensions | Transmitter/Receiver: 208mm [W] x 122mm [D] x 22mm [H] |
| Weight | Transmitter: 687g, Receiver: 636g |
| Housing | Metal Enclosure |
| Color | Black |
| Environmental | |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Operating Humidity | 20% ~ 80% (relative humidity, no condensation) |
| Storage Humidity | 10% ~ 90% (relative humidity, no condensation) |

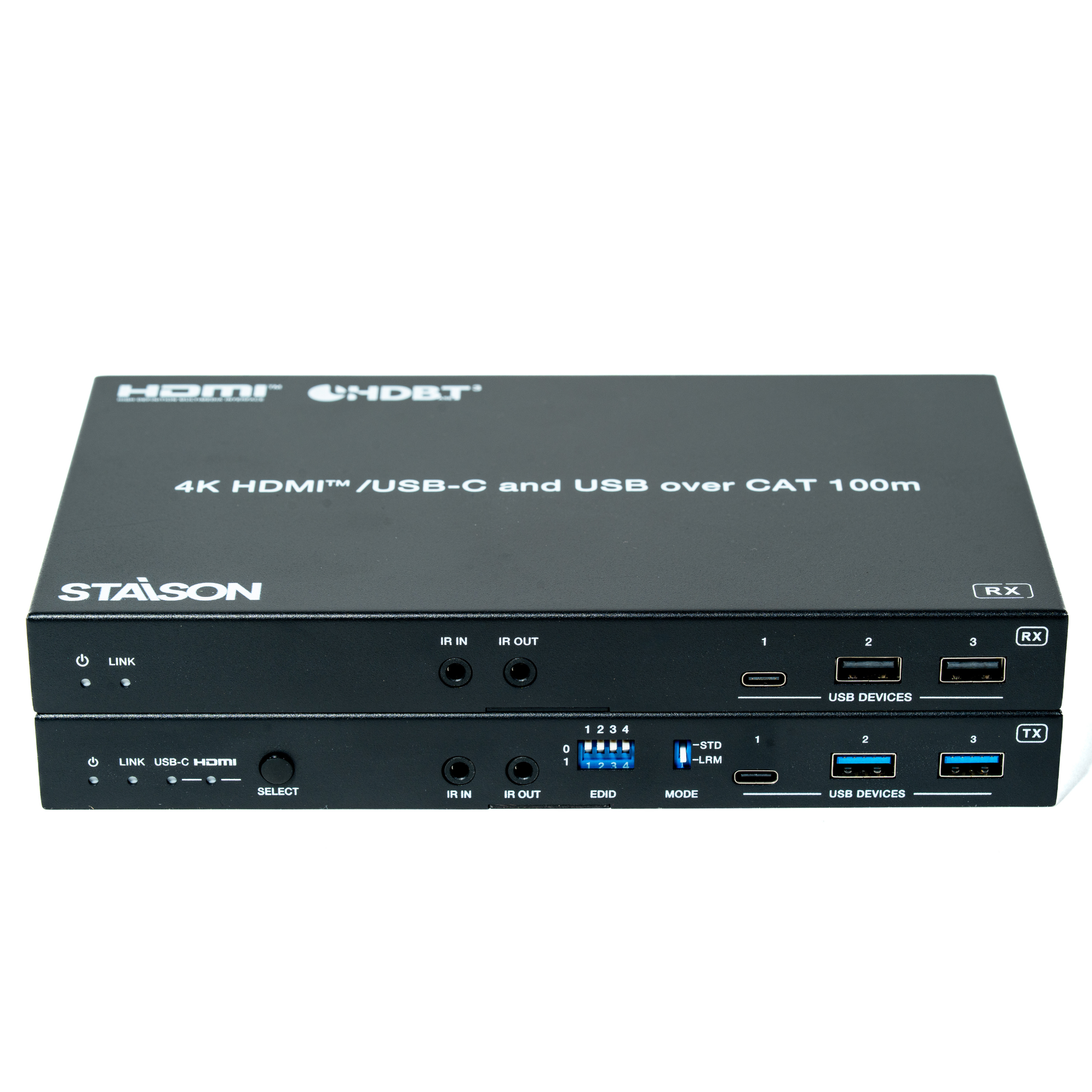

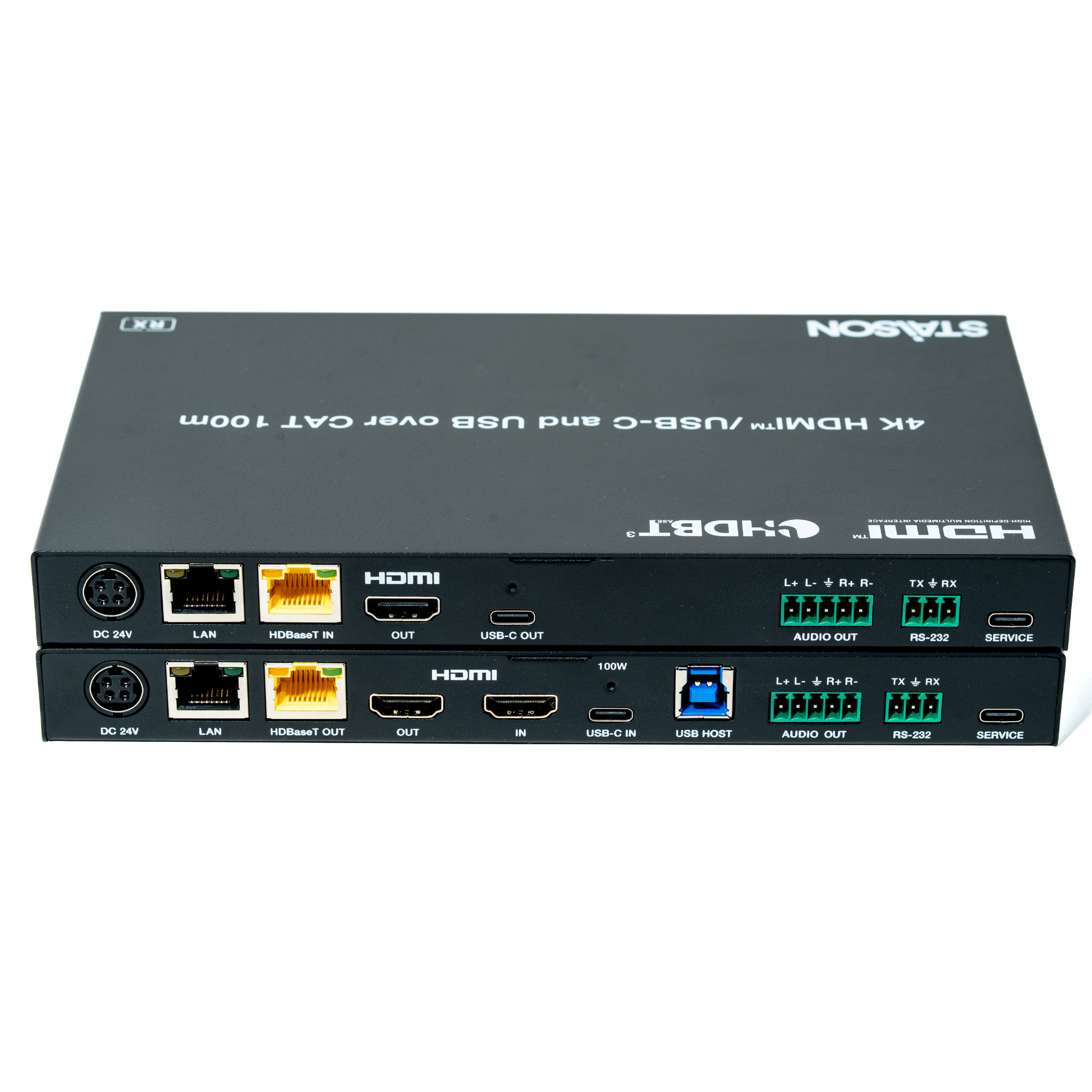

Operation Controls and Functions

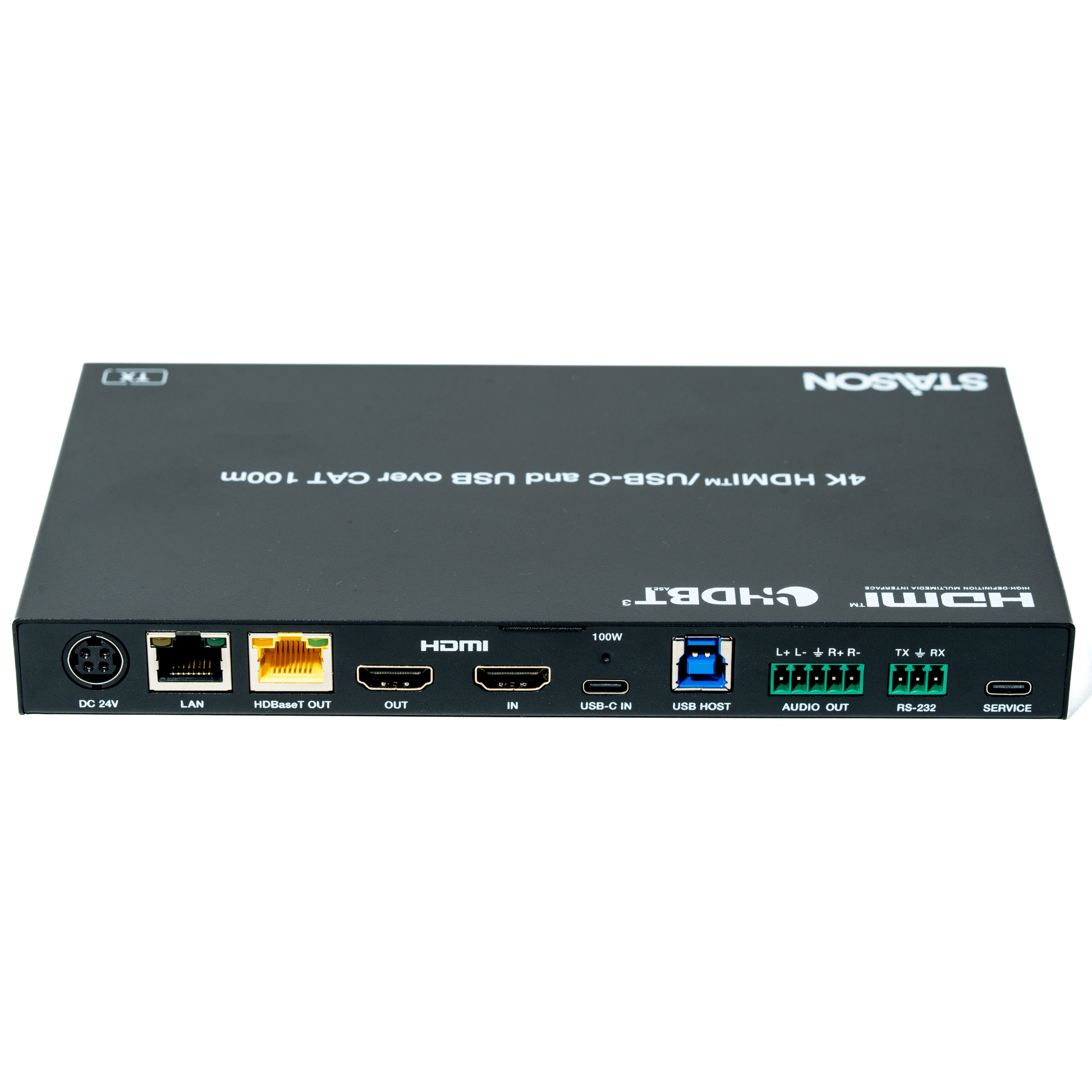

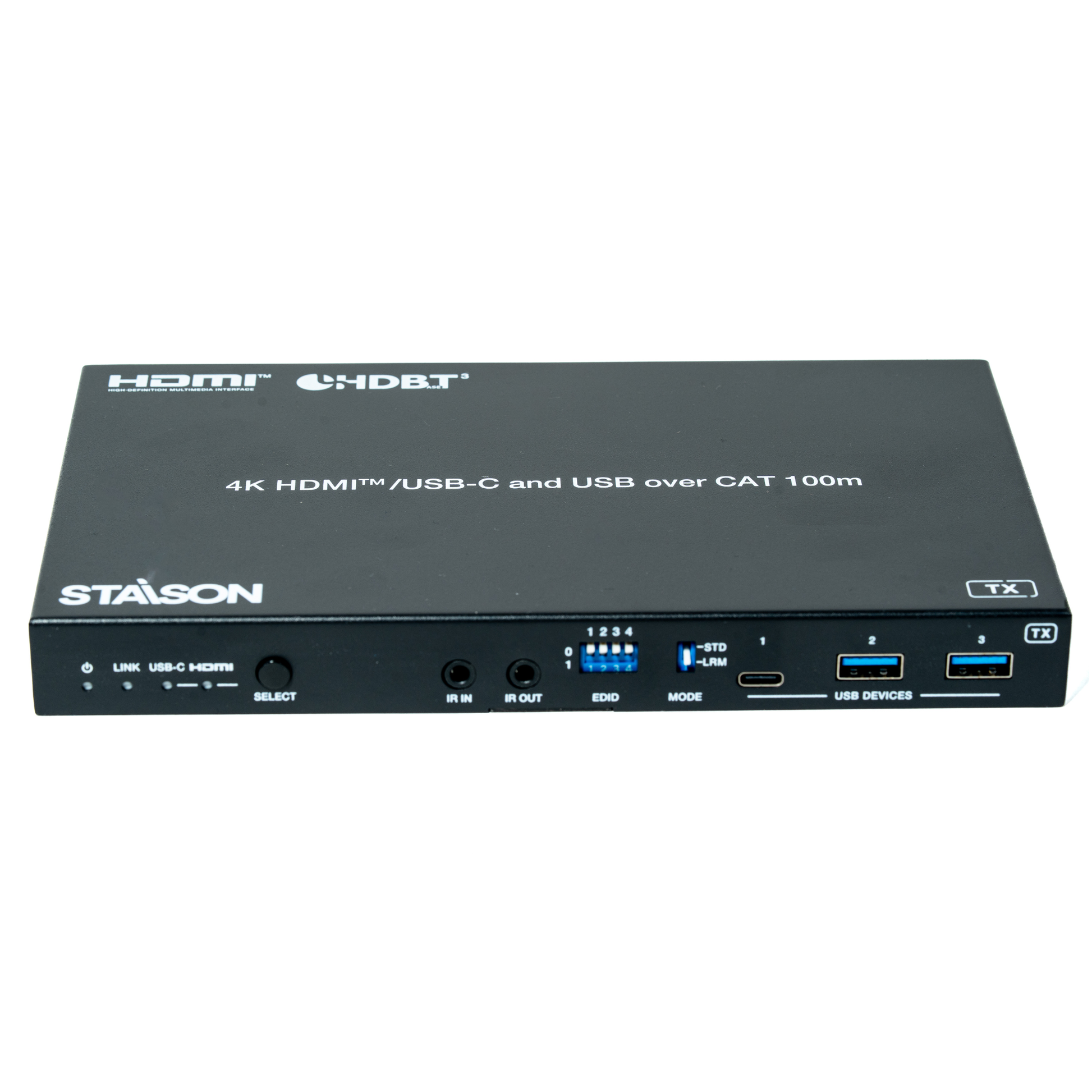

Transmitter Panel
| No. | Name | Function Description |
|---|---|---|
| 1 | Power LED | Red LED indicates that the transmitter is powered on. |
| 2 | LINK LED (Green) | ▪ Light on: Transmitter and receiver are in good connection status. ▪ Light flashing: Transmitter and receiver are in poor connection status. ▪ Light off: Transmitter and receiver are not connected. |
| 3 | USB-C LED (Green) | When the USB-C IN port is selected as the video signal input channel, the USB-C LED will be on. |
| 4 | HDMI LED (Green) | When the HDMI IN port is selected as the video signal input channel, the HDMI LED will be on. |
| 5 | SELECT button | Press this button to switch HDMI/USB-C signal input. |
| 6 | IR IN | IR signal input port, connected to IR Receiver cable. |
| 7 | IR OUT | IR signal output port, connected to IR Blaster cable. |
| 8 | EDID DIP switch | Used for EDID setting. Note: Only when the EDID DIP switch is set to 1111, the EDID settings through API commands are valid. [DIP]=0000: EDID Auto (default) [DIP]=0001: HDMI 1080p@60Hz, Audio 2CH PCM [DIP]=0010: HDMI 4K@30Hz 4:4:4, 8-bit, Audio 2CH PCM [DIP]=0011: HDMI 4K@60Hz 4:4:4, 8-bit, Audio 2CH PCM [DIP]=0100: HDMI 1080p@60Hz, Audio 5.1CH DTS/DOLBY [DIP]=0101: HDMI 1080p@60Hz, Audio 7.1CH DTS/DOLBY/HD [DIP]=0110: HDMI 4K@60Hz 4:4:4, 8-bit, Audio 5.1CH DTS/DOLBY [DIP]=0111: HDMI 4K@60Hz 4:4:4, 8-bit, Audio 7.1CH DTS/DOLBY/HD [DIP]=1000: HDMI 1920x1200@60Hz, Audio 2CH PCM [DIP]=1001: DVI 1920x1080@60Hz, Audio None [DIP]=1010: DVI 1920x1200@60Hz, Audio None [DIP]=1011: EDID pass-through (Copy from TX HDMI OUT) [DIP]=1100: EDID pass-through (Copy from RX HDMI OUT) [DIP]=1101: User Defined 1 [DIP]=1110: User Defined 2 [DIP]=1111: Software EDIDs |
| 9 | MODE switch | Used to switch HDBT mode. Switch to "STD": The HDBT Standard Mode (as factory default) is enabled, it can extend 4K60/4K30/1080P signal between the transmitter and the receiver up to 100m via a single CAT6A/7 cable. Switch to "LRM": The HDBT Long Reach Mode is enabled, it can extend 1080P 8bit signal between the transmitter and the receiver up to 150m via a single CAT6A/7 cable. |
| 10 | USB Device ports | Three USB 3.2 device ports (two USB-A ports and one USB-C port) connected to mouse, keyboard, USB Flash Drive or other USB devices. |
| 11 | DC 24V | DC 24V/7.5A power supply input port. Note that the extender supports PoC function, it means that either transmitter or receiver is powered on by 24V/7.5A power adapter, the other one doesn't need power supply. |
| 12 | LAN | 1G Ethernet pass-through port. When it switches to 1000Mbps Ethernet, the yellow indicator flashes; When it switches to 100Mbps Ethernet, the green indicator flashes. |
| 13 | HDBaseT OUT | HDBaseT output port, connected to the HDBaseT IN port of receiver with a CAT6A/7 cable. It is used for HDMI, network and USB signals pass-through. |
| 14 | Data Signal Indicator (Yellow) | ▪ Light on: There is video signal transmission with HDCP encryption. ▪ Light flashing: There is video signal transmission without HDCP encryption. ▪ Light off: There is no video signal transmission. |
| 15 | Link Signal Indicator (Green) | ▪ Light on: Transmitter and receiver are in good connection status. ▪ Light flashing: Transmitter and receiver are in poor connection status. ▪ Light off: Transmitter and receiver are not connected. |
| 16 | HDMI OUT | HDMI signal loop output port, connected to HDMI display device. |
| 17 | HDMI IN | HDMI signal input port, connected to HDMI source device. |
| 18 | USB-C IN | USB Type C port with following four functions: (1) USB-C video signal input port, connected to source device. (2) USB-C host port. When the USB-C port is selected as the video signal input channel, the USB-C port can be used as the USB 3.2 Gen 1 signal transmission port simultaneously. (3) USB-C charging port. Only when TX is connected to the 24V/7.5A power supply, the USB-C port can provides 100W charging power for external USB-C devices. When TX is not connected to the power supply and RX is connected to the power supply, the USB-C port can not provide charging function. (4) 1G Ethernet access port. |
| 19 | USB HOST | USB 3.2 Gen 1 host port, connected to PC. |
| 20 | AUDIO OUT | Analog audio output port, supporting balanced audio output (with a maximum support of 2Vrms) and unbalanced audio output (with a maximum support of 1Vrms). Balanced connection method: L+, L -, GND, R+, R - Unbalanced connection method: L+, GND, R+ |
| 21 |
RS-232
|
RS-232 serial port, used for RS-232 signal pass-through and API commands control. |
| 22 | SERVICE | USB 2.0 Type C port, used for firmware upgrade and API commands control. |
| 23 | POC switch | 24V PoC on/off switch. ON: PoC is enabled (as factory default). OFF: PoC is disabled (need local DC/24V power supply). |
Note: In the HDBT Long Reach Mode, due to bandwidth limitations, USB cannot transmit
USB 2.0 devices, but only can transmit USB HID devices (such as mice and keyboards).
When using the USB pass-through function, the serial baud rate may also be limited.
3 4
* EDID Setting List:
[DIP]=0000: EDID Auto (default)
[DIP]=0001: HDMI 1080p@60Hz, Audio 2CH PCM
[DIP]=0010: HDMI 4K@30Hz 4:4:4, 8-bit, Audio 2CH PCM
[DIP]=0011: HDMI 4K@60Hz 4:4:4, 8-bit, Audio 2CH PCM
[DIP]=0100: HDMI 1080p@60Hz, Audio 5.1CH DTS/DOLBY
[DIP]=0101: HDMI 1080p@60Hz, Audio 7.1CH DTS/DOLBY/HD
[DIP]=0110: HDMI 4K@60Hz 4:4:4, 8-bit, Audio 5.1CH DTS/DOLBY
[DIP]=0111: HDMI 4K@60Hz 4:4:4, 8-bit, Audio 7.1CH DTS/DOLBY/HD
[DIP]=1000: HDMI 1920x1200@60Hz, Audio 2CH PCM
[DIP]=1001: DVI 1920x1080@60Hz, Audio None
[DIP]=1010: DVI 1920x1200@60Hz, Audio None
[DIP]=1011: EDID pass-through (Copy from TX HDMI OUT)
[DIP]=1100: EDID pass-through (Copy from RX HDMI OUT)
[DIP]=1101: User Defined 1
[DIP]=1110: User Defined 2
[DIP]=1111: Software EDIDs

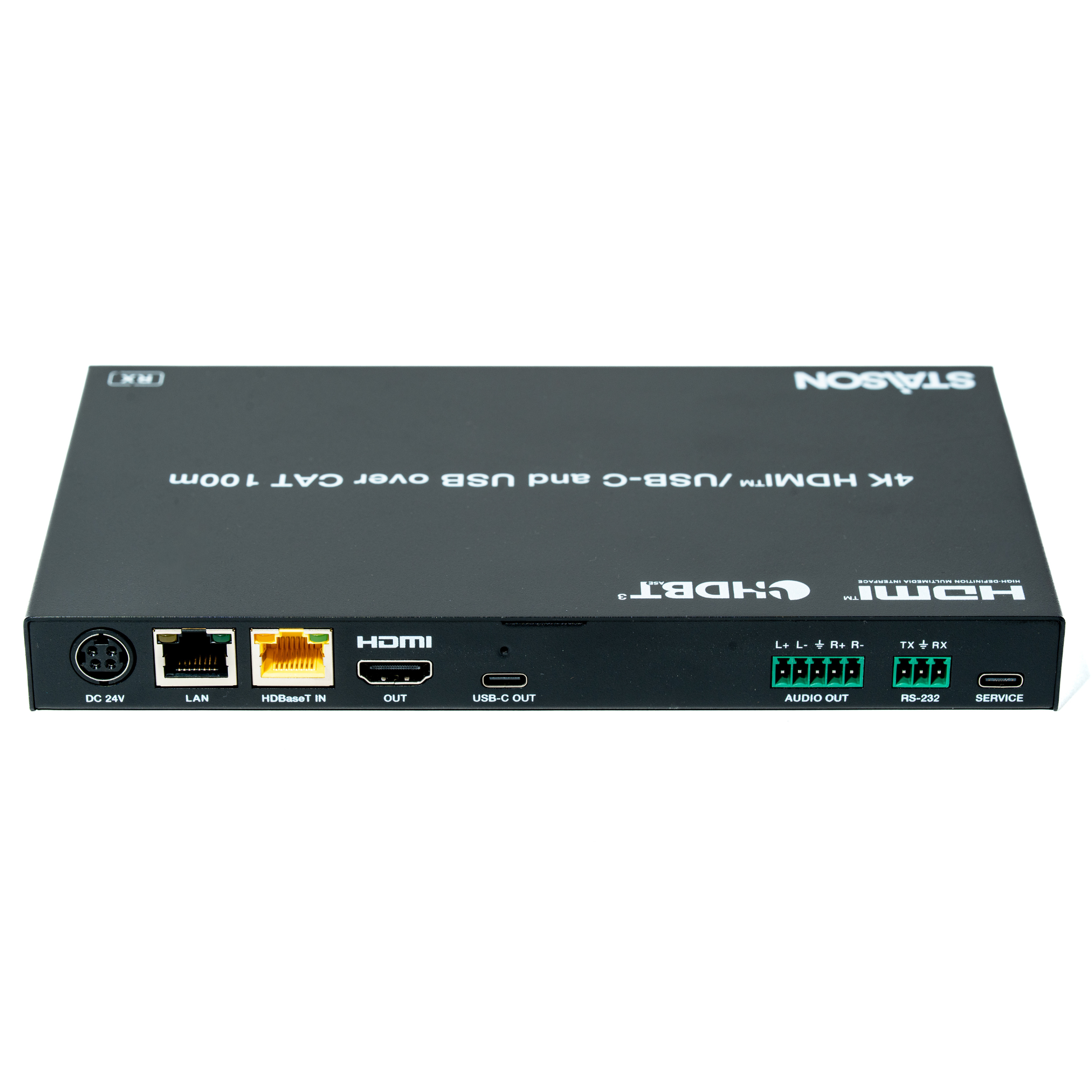

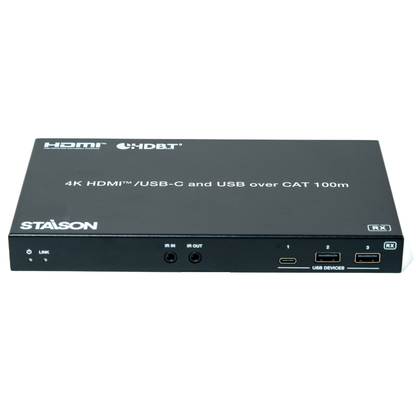

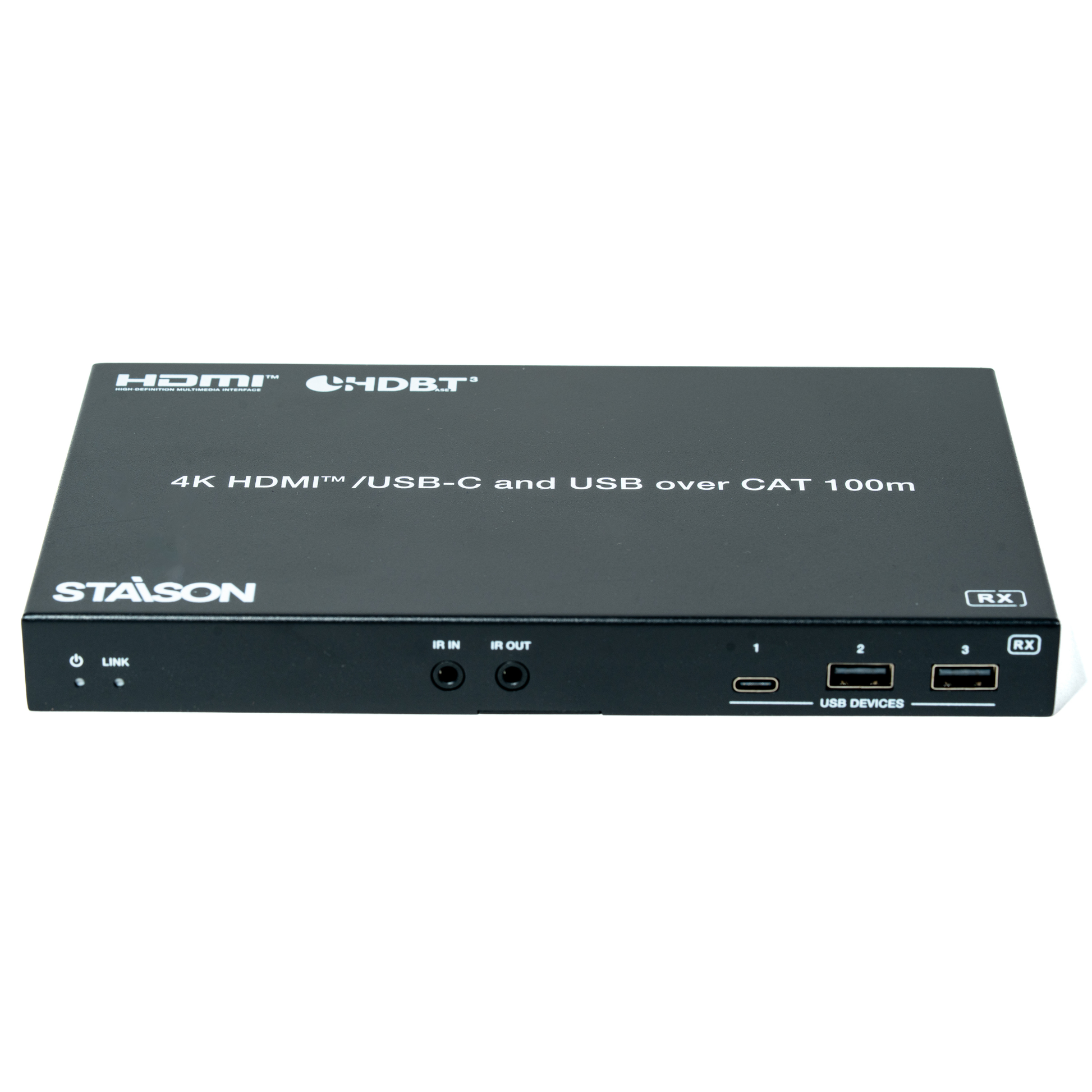

Receiver Panel
| No. | Name | Function Description |
|---|---|---|
| 1 | Power LED | Red LED indicates that the receiver is powered on. |
| 2 | LINK LED (Green) | ▪ Light on: Transmitter and receiver are in good connection status. ▪ Light flashing: Transmitter and receiver are in poor connection status. ▪ Light off: Transmitter and receiver are not connected. |
| 3 | IR IN | IR signal input port, connected to IR Receiver cable. |
| 4 | IR OUT | IR signal output port, connected to IR Blaster cable. |
| 5 | USB Device ports | Three USB 2.0 device ports (two USB-A ports and one USB-C port) connected to mouse, keyboard, USB Flash Drive or other USB devices. |
| 6 | ||
| 7 | LAN | 1G Ethernet pass-through port. When it switches to 1000Mbps Ethernet, the yellow indicator flashes; When it switches to 100Mbps Ethernet, the green indicator flashes. |
| 8 | HDBaseT IN | HDBaseT input port, connected to the HDBaseT OUT port of transmitter with a CAT6A/7 cable. It is used for HDMI, network and USB signals pass-through. |
| 9 | Data Signal Indicator (Yellow) | ▪ Light on: There is video signal transmission with HDCP encryption. ▪ Light flashing: There is video signal transmission without HDCP encryption. ▪ Light off: There is no video signal transmission. |
| 10 | Link Signal Indicator (Green) | ▪ Light on: Transmitter and receiver are in good connection status. ▪ Light flashing: Transmitter and receiver are in poor connection status. ▪ Light off: Transmitter and receiver are not connected. |
| 11 | HDMI OUT | HDMI signal output port, connected to HDMI display device, such as TV or monitor. |
| 12 | USB-C OUT | USB Type C port with following two functions: (1) AV signal output port, supporting DP signal, connected to the display device with USB-C port. (2) USB 2.0 device port, with 1A power supply, connected to USB devices such as USB Flash Drive and Hard Disk. |
| 13 | AUDIO OUT | Analog audio output port, supporting balanced audio output (with a maximum support of 2Vrms) and unbalanced audio output (with a maximum support of 1Vrms). Balanced connection method: L+, L -, GND, R+, R - Unbalanced connection method: L+, GND, R+ |
| 14 | RS-232 | RS-232 serial port, used for RS-232 signal pass-through and API commands control. |
| 15 | SERVICE | USB 2.0 Type C port, used for firmware upgrade and API commands control. |

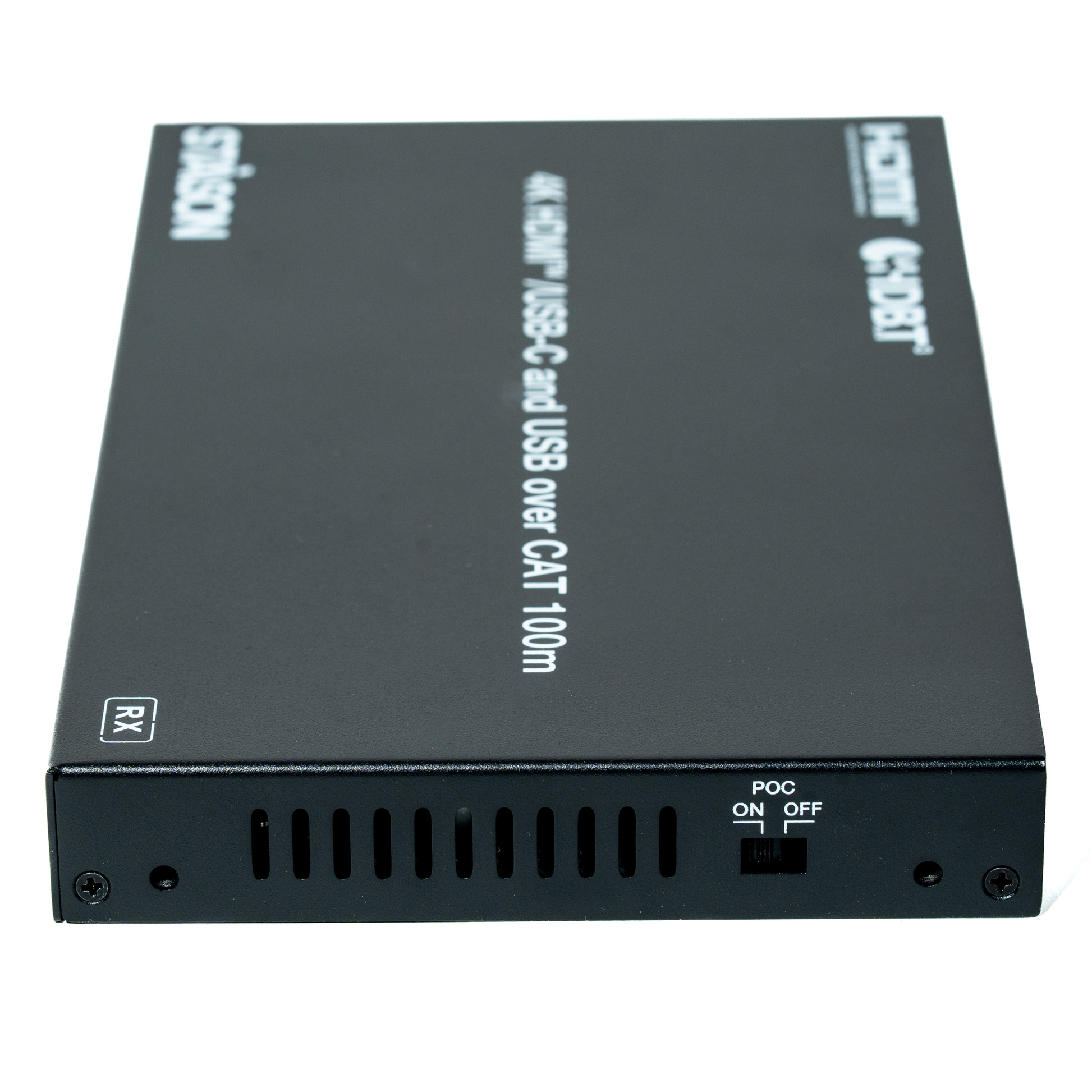

| 16 | POC switch | 24V PoC on/off switch. ON: PoC is enabled (as factory default). OFF: PoC is disabled (need local DC/24V power supply). |
IR Pin Definition
IR Receiver and Blaster pin’s definition as below:
Note: When the angle between the IR receiver and the remote control is ± 45 °, the
transmission distance is 0-5 meters; when the angle between the IR receiver and the
remote control is ± 90 °, the transmission distance is 0-8 meters.
