ST-NEU2050 USB 2.0 Extender (50M)
ST-NEU2050 USB 2.0 Extender (50M)
The USB 2.0 Extender can extend USB signal up to 50m/164ft via a single
CAT5/5e/6 cable (The transmission distance can only up to 40m/131ft for
some USB 2.0 Hubs). For transmitter, the USB-B port is connected to a PC.
For receiver, you can connect the two USB ports to devices with USB port
such as U disk or printer, etc. In addition, you need to connect 5V/1A power
supply to receiver. The product can be widely used for long distance signal
transmission between a PC and USB devices. Simple plug and play, no drive
and setting installation required.
Features
☆ Support USB 2.0 protocol, transmission rate up to 480Mbps
☆ USB signal can be extended up to 50m*/164ft via CAT5/5e/6 cable
☆ Transmitter supports one USB-B port input
☆ Receiver supports two USB 2.0 ports output
☆ Transmitter is powered by the device connected to its USB-B port;
Receiver is powered by connecting DC 5V/1A power supply
☆ Simple plug and play, no drive and setting installation required
☆ Compact design for easy and flexible installation
* Subject to the USB 2.0 protocol, when using this product, each additional
level of Hub between Host and Device in the entire link will shorten the
CAT cable transmission distance by about 12m/39ft.
Package Contents
① 1× USB 2.0 Extender (Transmitter)
② 1× USB 2.0 Extender (Receiver)
③ 1× USB cable (USB-B male head to USB-A male head, 1m)
④ 1× 5V/1A Power Adapter
⑤ 1× User Manual
Specifications
| Parameter | Value |
|---|---|
| Technical | |
| USB Protocol | USB 2.0 |
| Transmission Rate | Up to 480Mbps |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Transmission | |
| Transmission Distance | 50m/164ft (Note: The transmission distance can only up to 40m/131ft for some USB 2.0 Hub) |
| Connection – Transmitter | |
| Input port | 1 x USB (To PC) [USB-B, female] |
| Output port | 1 x CAT [RJ45, female] |
| Connection – Receiver | |
| Input port | 1 x CAT [RJ45, female] |
| Output port | 2 x USB 2.0 [USB-A, female] |
| Mechanical | |
| Dimensions | Transmitter / Receiver: 82mm (W)×49mm (D)×20mm (H) |
| Housing | Metal Enclosure |
| Color | Black |
| Weight | Transmitter / Receiver: 100g |
| Environmental | |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC 5V/1A |
| Power Consumption | Transmitter: 0.7W, Receiver: 1W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

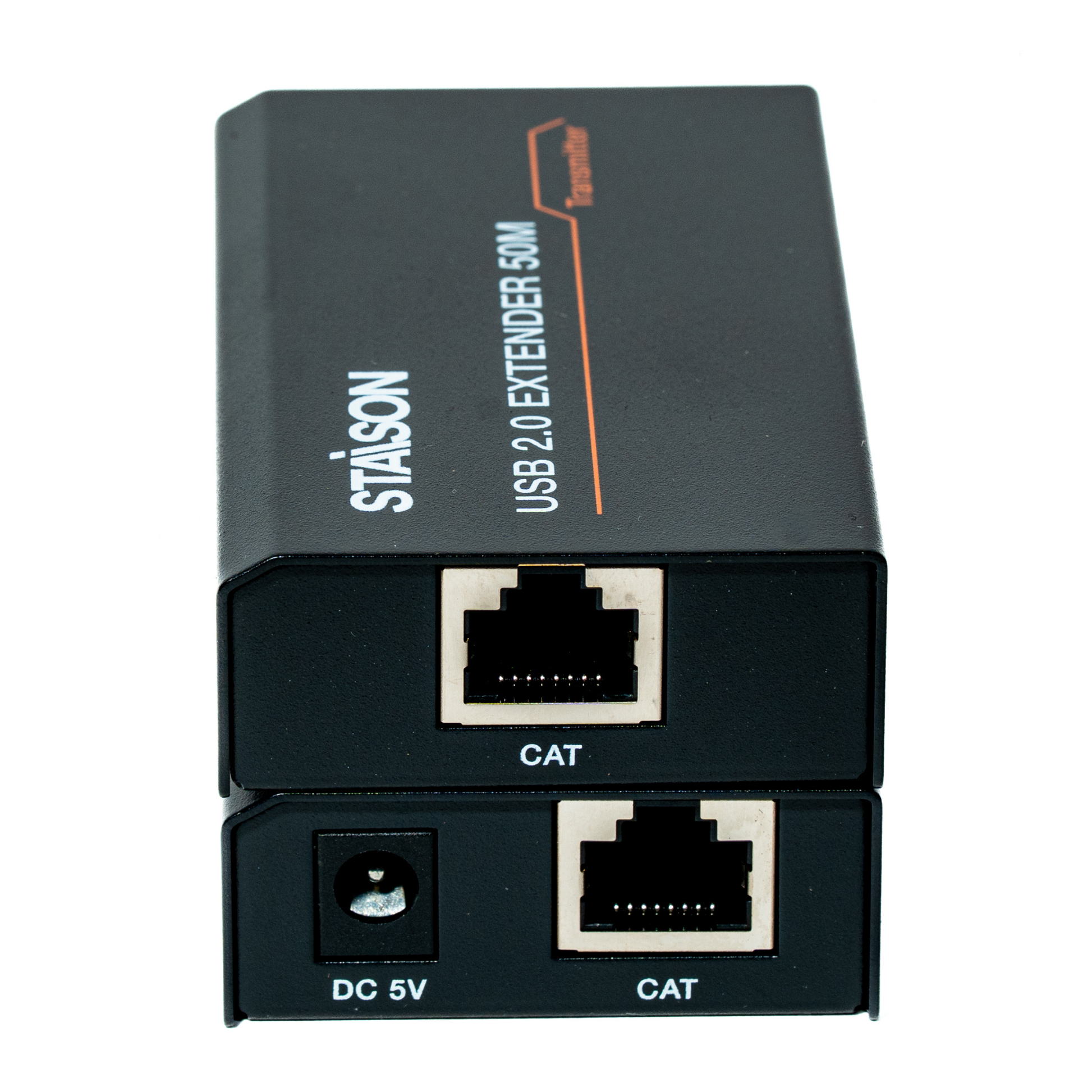

Operation Controls and Functions

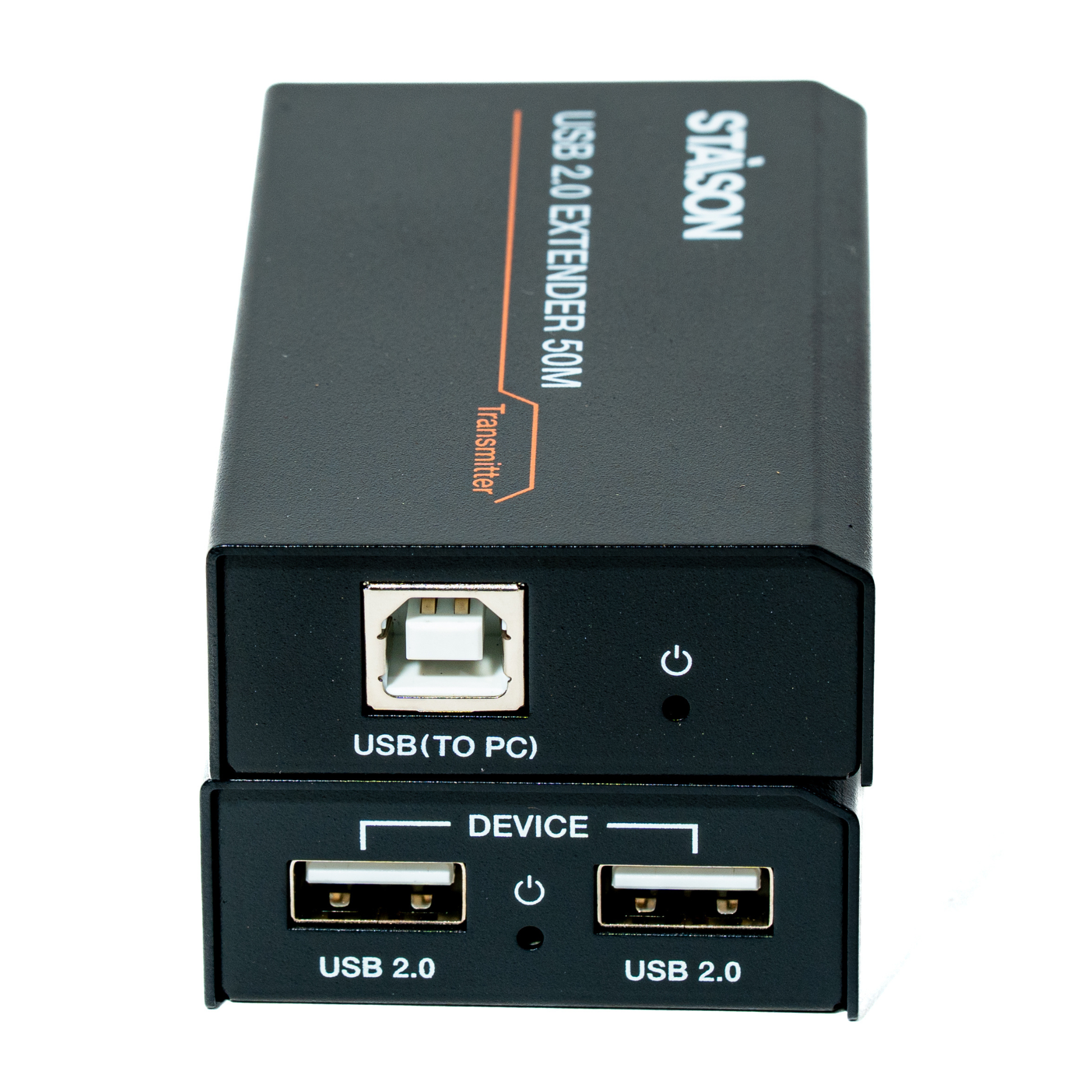

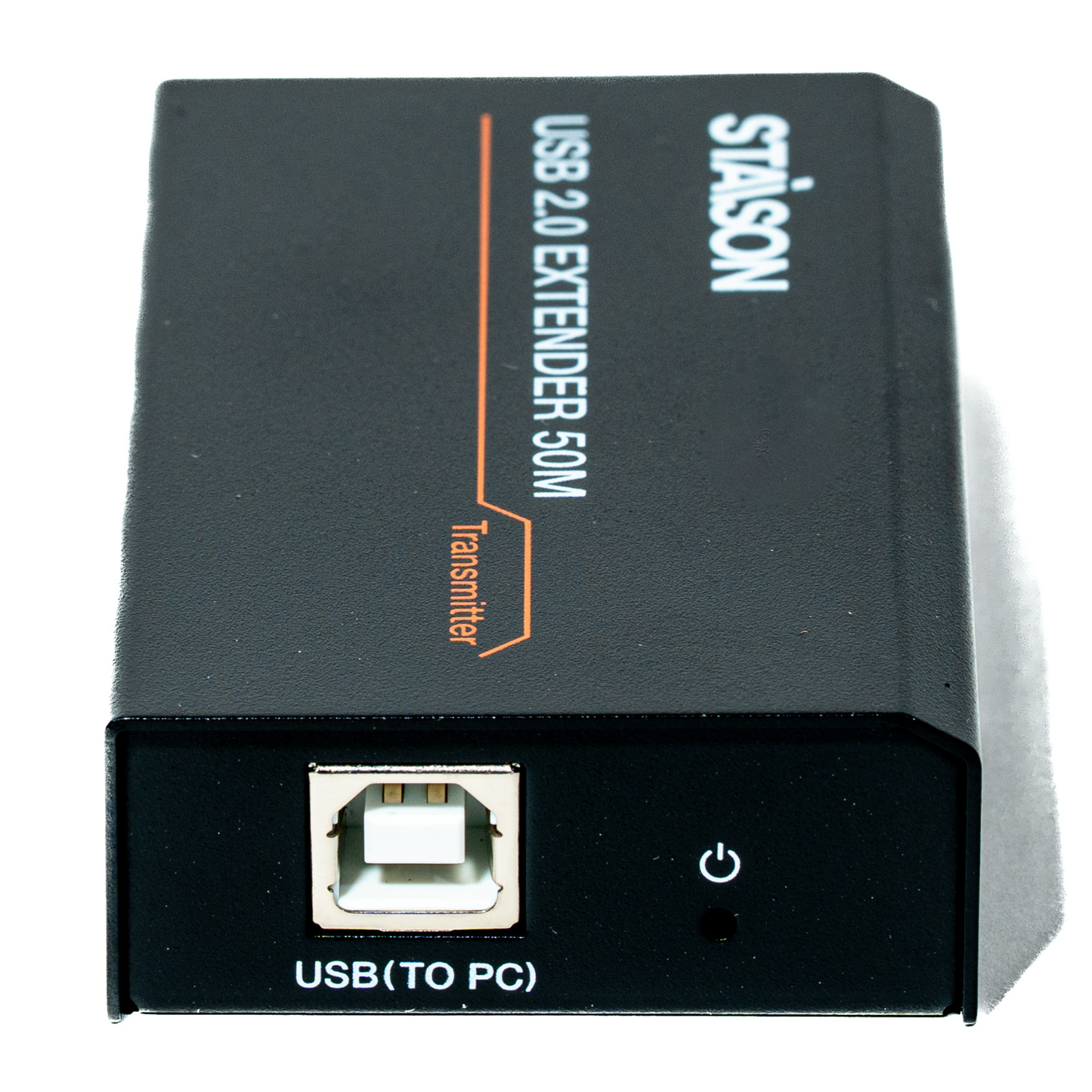

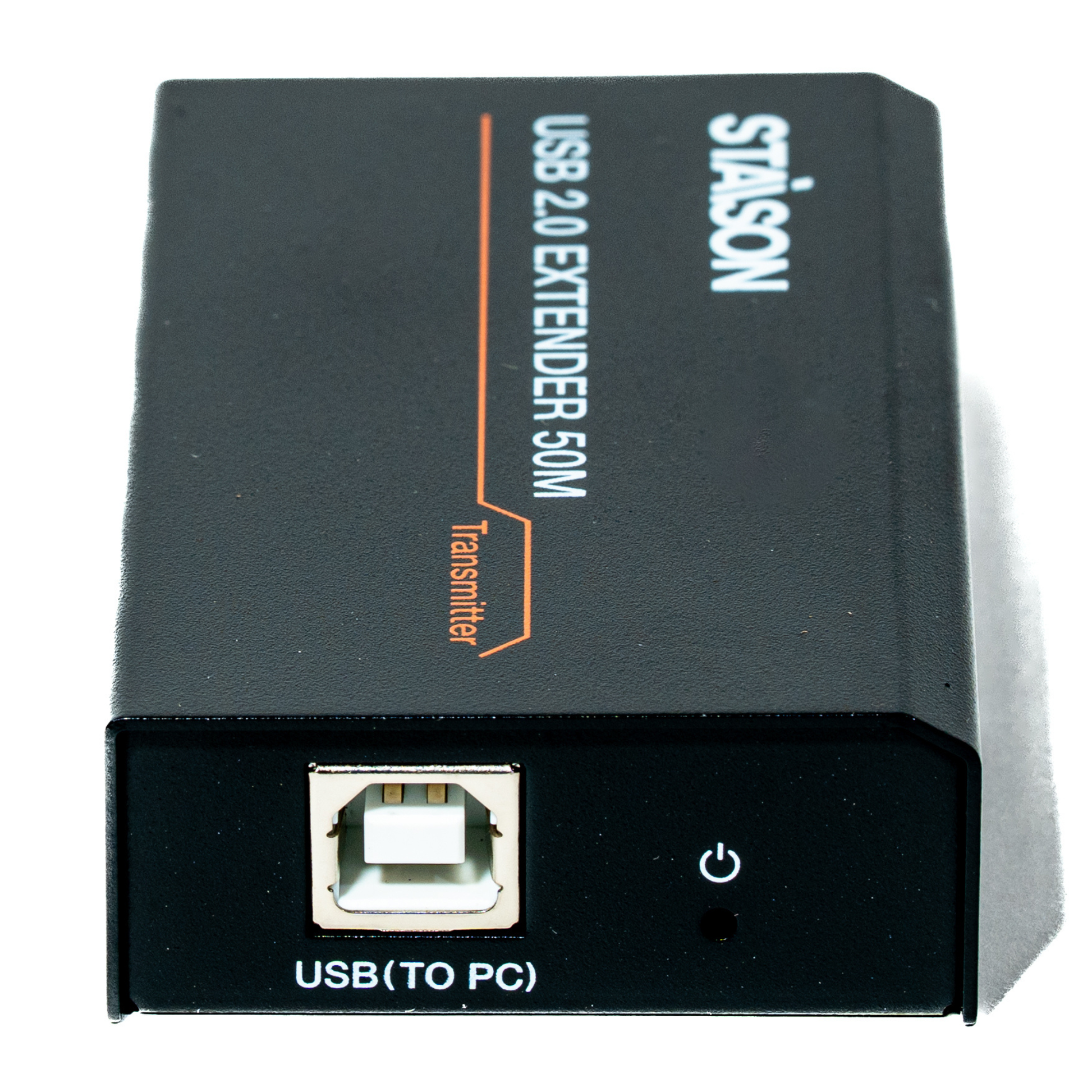

Transmitter Panel
| No. | Name | Function Description |
|---|---|---|
| 1 | USB port | Use the included USB cable (USB-B male head to USB-A male head) to connect a PC. Note: The PC can control the devices connected to the USB port of the receiver. |
| 2 | Power LED | The green LED will illuminate when transmitter is provided power supply by USB-B port's device. |

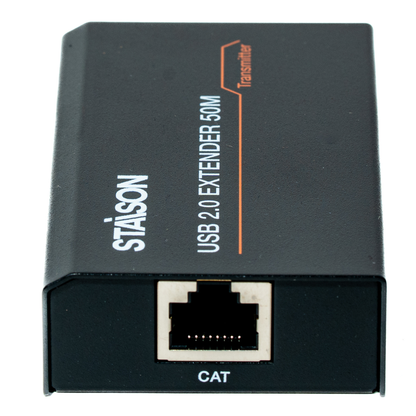

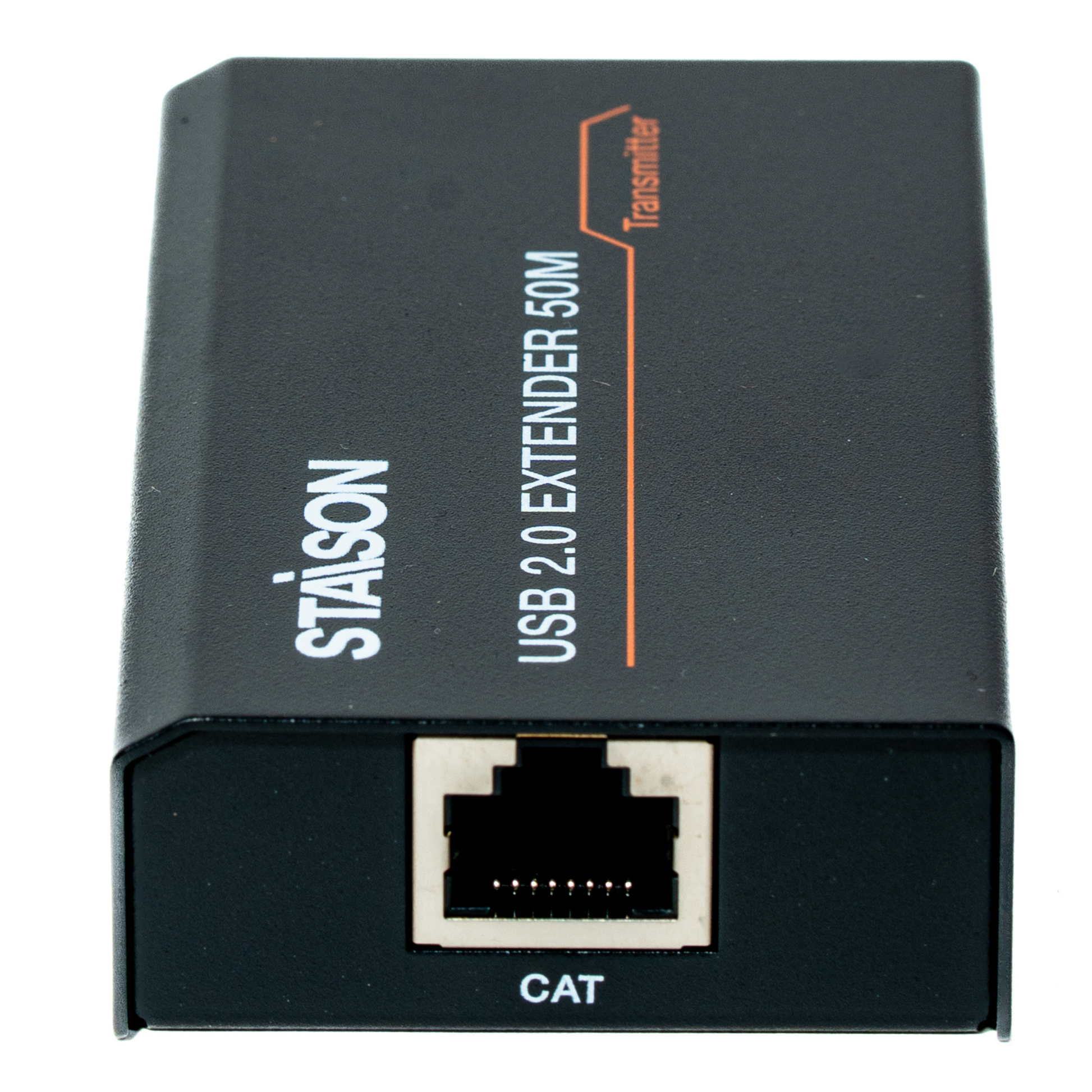

| 3 | CAT port | The CAT port is connected to the receiver's CAT port with CAT5/5e/6 cable. |

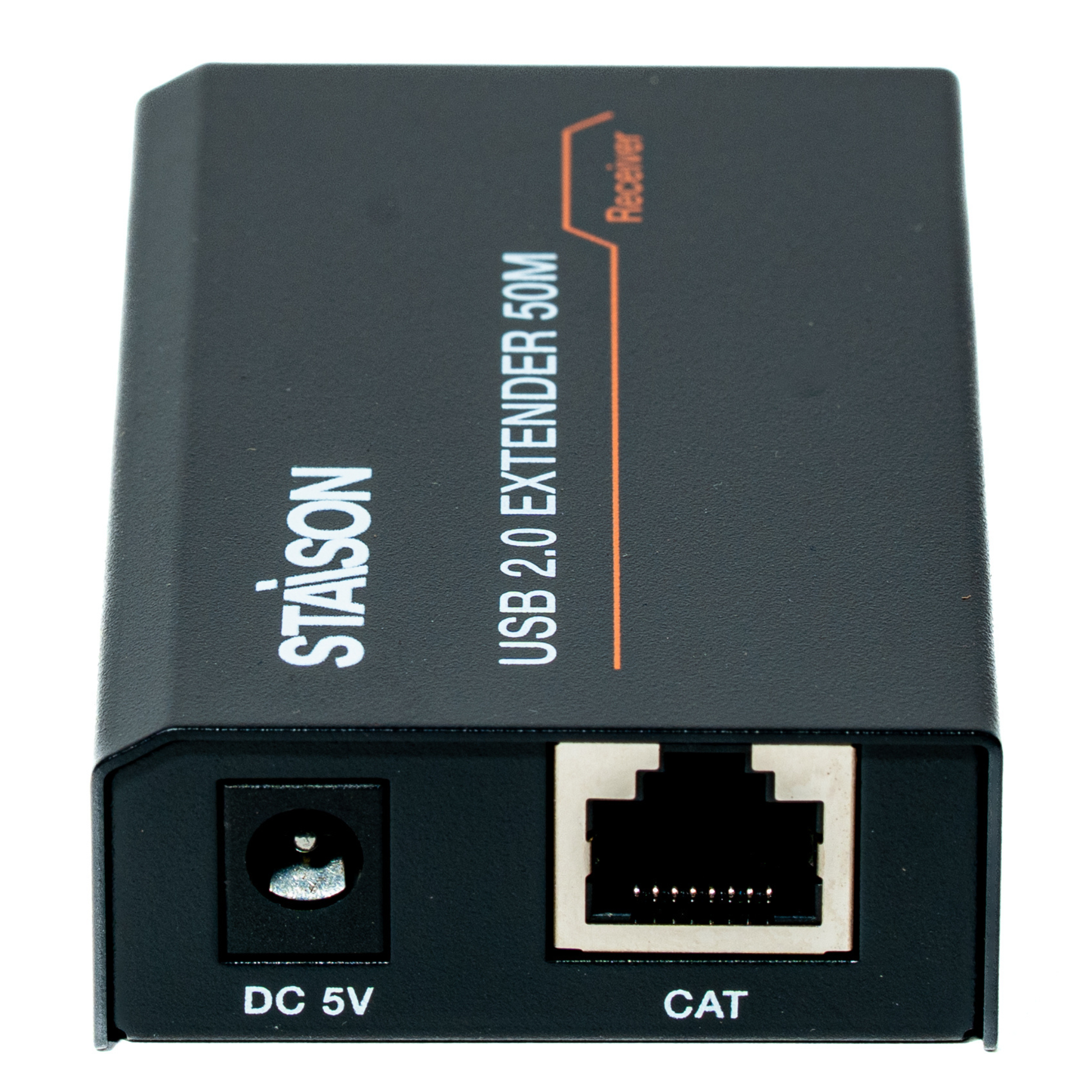

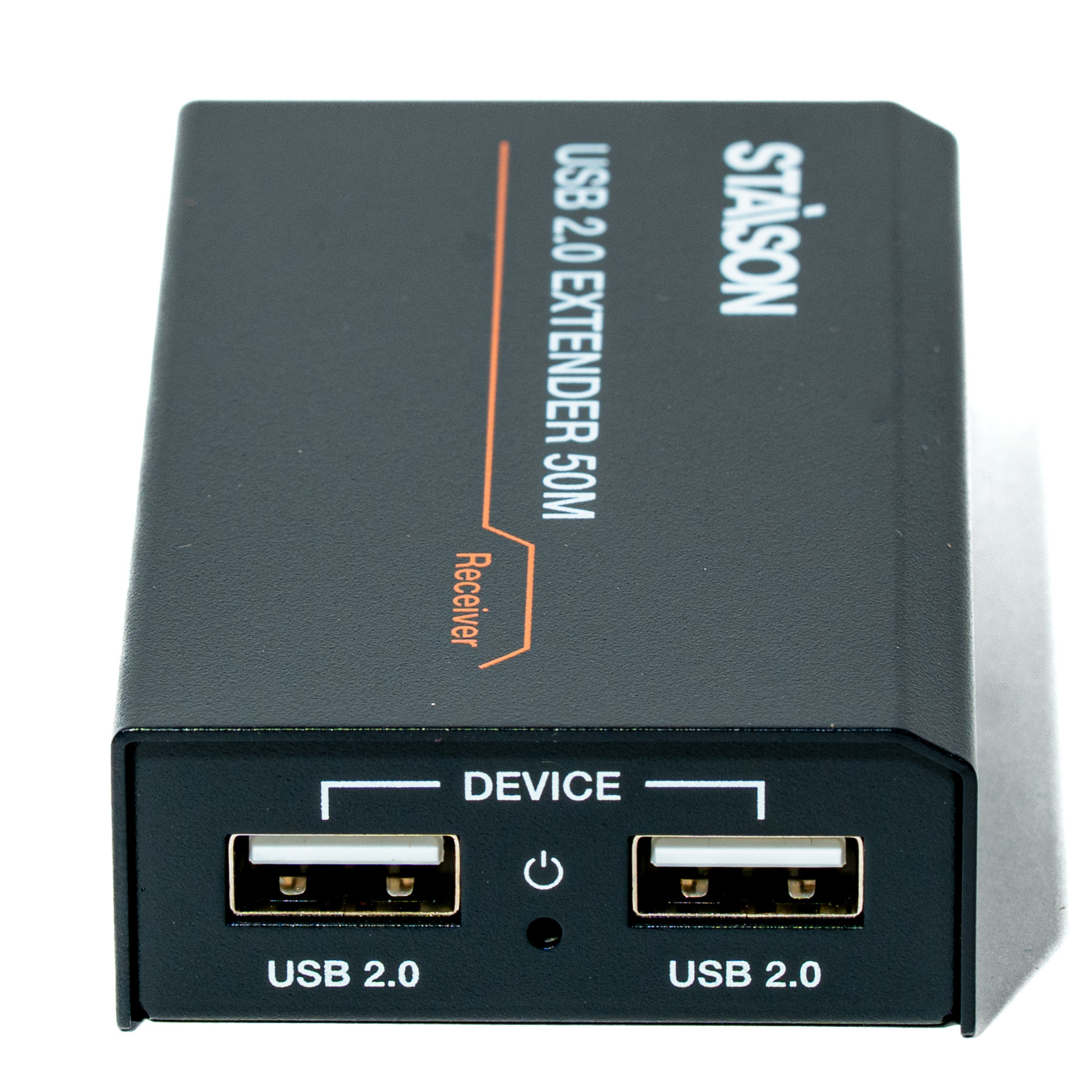

Receiver Panel
| No. | Name | Function Description |
|---|---|---|
| 1 | USB 2.0 ports | Two USB extension ports, connected to devices with USB port such as printer or U disk, etc. |
| 2 | Power LED | The green LED will illuminate when the receiver is connected with power supply. |
| 3 | DC 5V | Plug 5V/1A DC power supply into the unit and connect the adapter to an AC outlet. |
| 4 | CAT port | The CAT port is connected to the transmitter's CAT port with CAT5/5e/6 cable. |
