Model ST-NAUD2ENC · VER 1.0
Dante 2CH Analog Audio Encoder with POE
Balanced / Unbalanced Analog Input → Dante Network · PoE Powered · AES67 RTP · 3-Level Gain
This Dante 2CH Analog Audio Encoder is an audio transmitter based on the Dante Ultimo solution. It supports balanced/unbalanced audio input and 3-level gain adjustment. It encodes audio signals, and then transmits the audio to the receiving end through network (Dante). It supports POE function.
Features
Analog audio input supports balanced/unbalanced audio input (unbalanced access to “+” and “GND”)
Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
Dante solution supports AES67 RTP audio transmission
Audio input supports 3-level gain adjustment: +18dBu, 0dBu (default) and -10dBV
Support DC 12V power supply and POE function (IEEE802.3af Class 0)
Package Contents
11× Dante 2CH Analog Audio Encoder
21× 6pin-3.81mm Phoenix Connector (male)
31× 2pin-3.81mm Phoenix Connector (male)
41× User Manual
Specifications
| Parameter | Detail |
|---|---|
| Technical | |
| Video Network Bandwidth | 100M |
| Audio Formats | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Transmission Distance | 100m (CAT6/6A) |
| Control Method | Dante Controller |
| Connection | |
| Inputs | 1x PWR [2-pin phoenix, 3.81mm] 1x AUD [6-pin phoenix, 3.81mm] |
| Output | 1x DANTE [RJ45 connector, POE] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 120mm[W] x 47mm[D] x 26mm[H] |
| Weight | 186g |
| Power Supply | DC input: 12V POE input: IEEE802.3af Class 0 |
| Power Consumption | 1.2W |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Operation Controls and Functions
Device Panel — Controls & Ports
| No. | Name | Function Description |
|---|---|---|

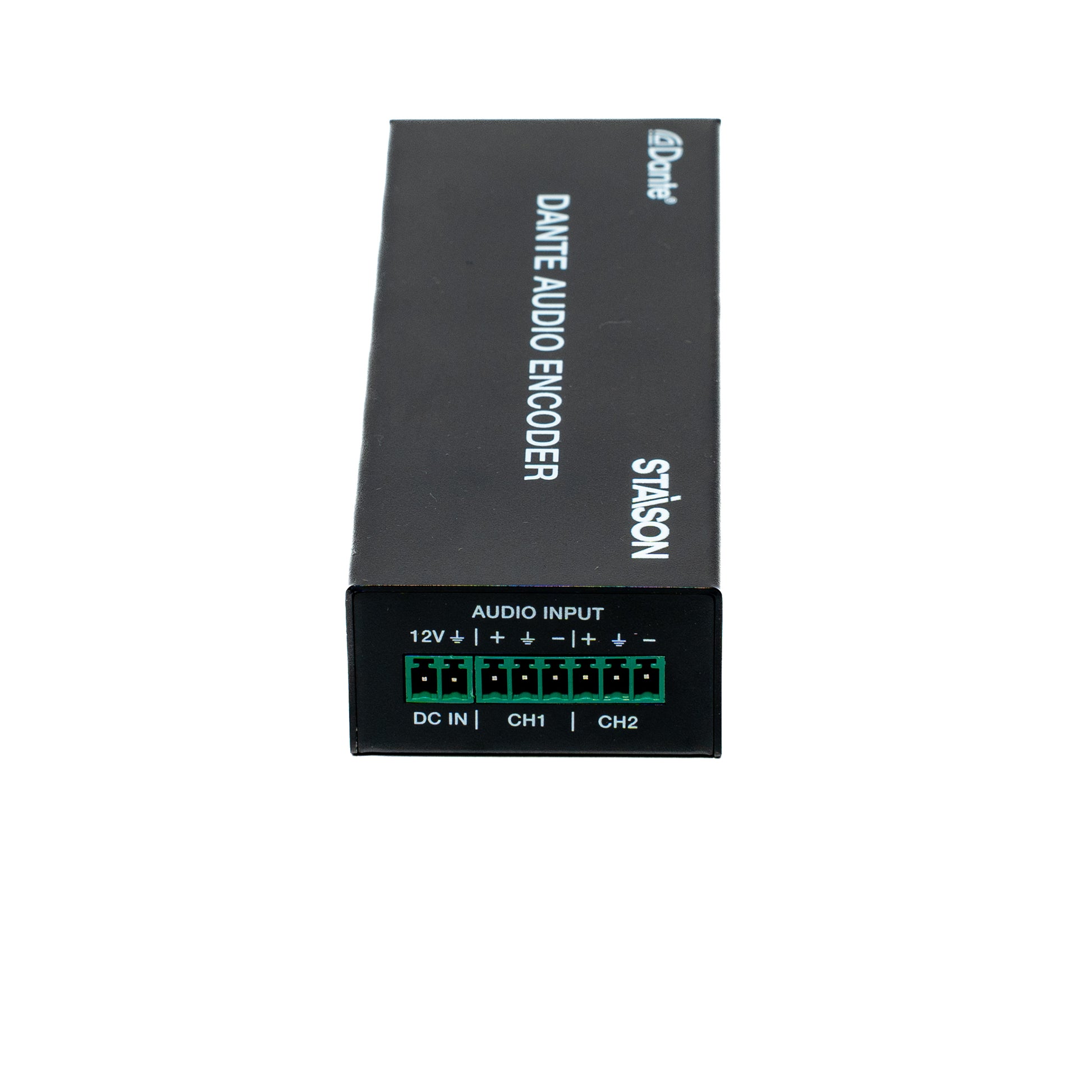

| 1 | AUDIO INPUT (CH1/CH2) | 2 channel analog audio input ports, supporting balanced and unbalanced audio. |
| 2 | DC IN | DC 12V power input port. |

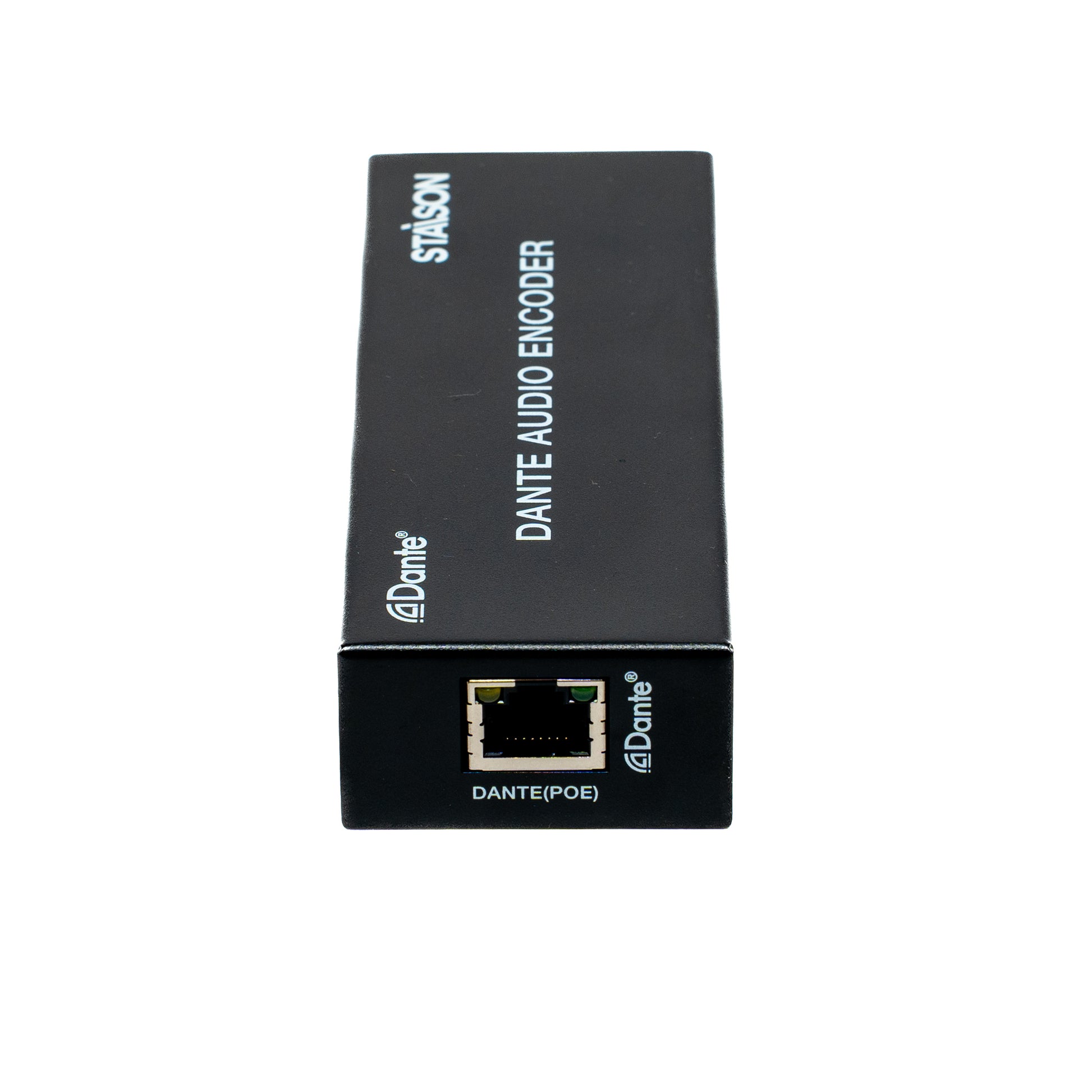

| 3 | DANTE (POE) | Dante digital audio output port. Connect to the Network Switch through RJ45 line, supporting PD power supply. The green LINK LED is always on after normal connection. The yellow DATA LED is flashing when there is data transmission. |

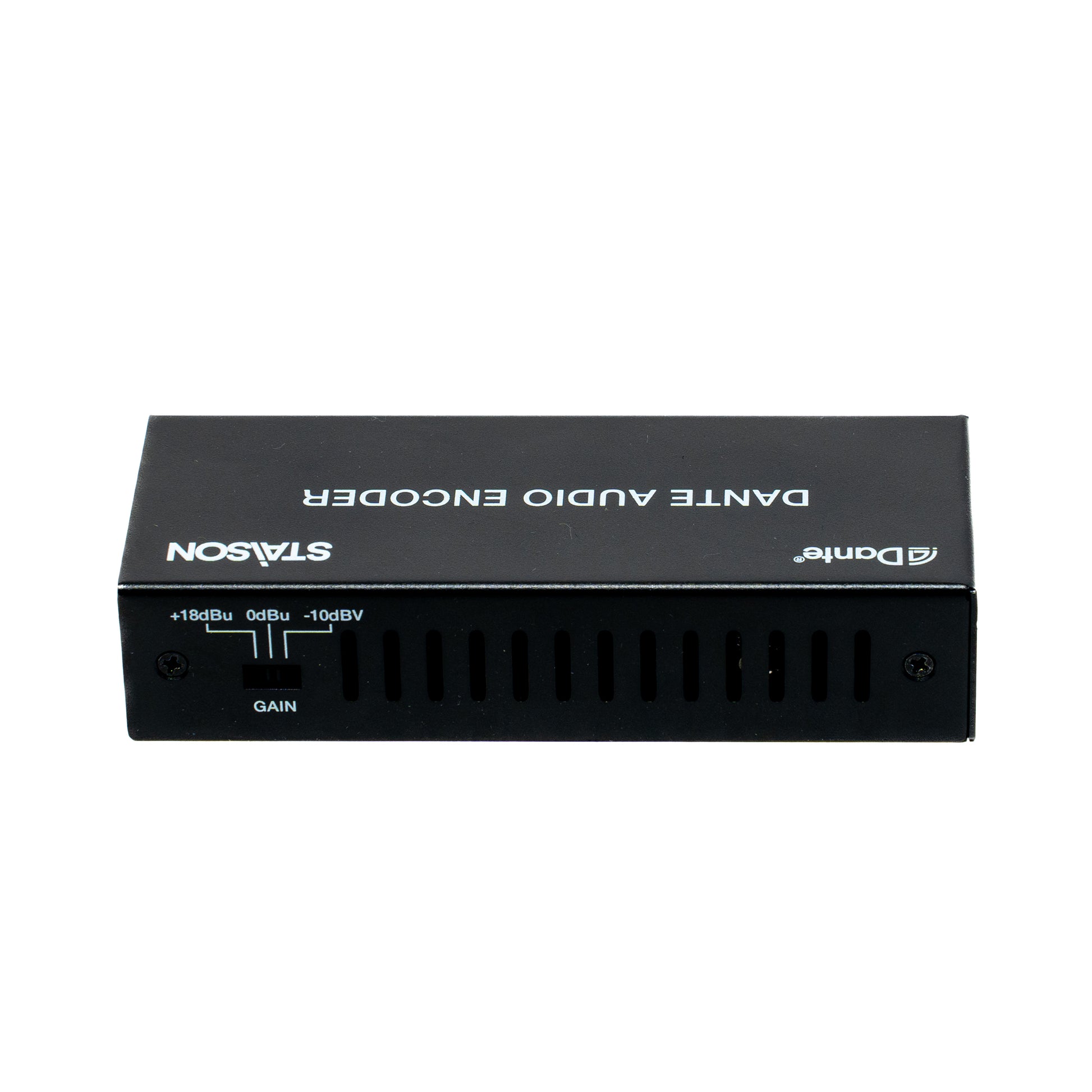

| 4 | GAIN switch | Used for audio input gain adjustment, respectively +18dBu, 0dBu (default), -10dBV. |
Application Example
How it works: The Audio Encoder (this product) receives L/R analog audio from a DVD player through its AUDIO INPUT terminals, encodes it into Dante digital audio, and transmits it over the network via its DANTE(POE) RJ45 port to the 100/1000M Network Switch. The switch routes the Dante audio to a USB Audio Encoder/Decoder (connected to a Laptop) and an Audio Decoder (which outputs L/R analog audio to Speakers).
Dante® is registered trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners.
