Model ST-NAUD2LEN · VER 1.1

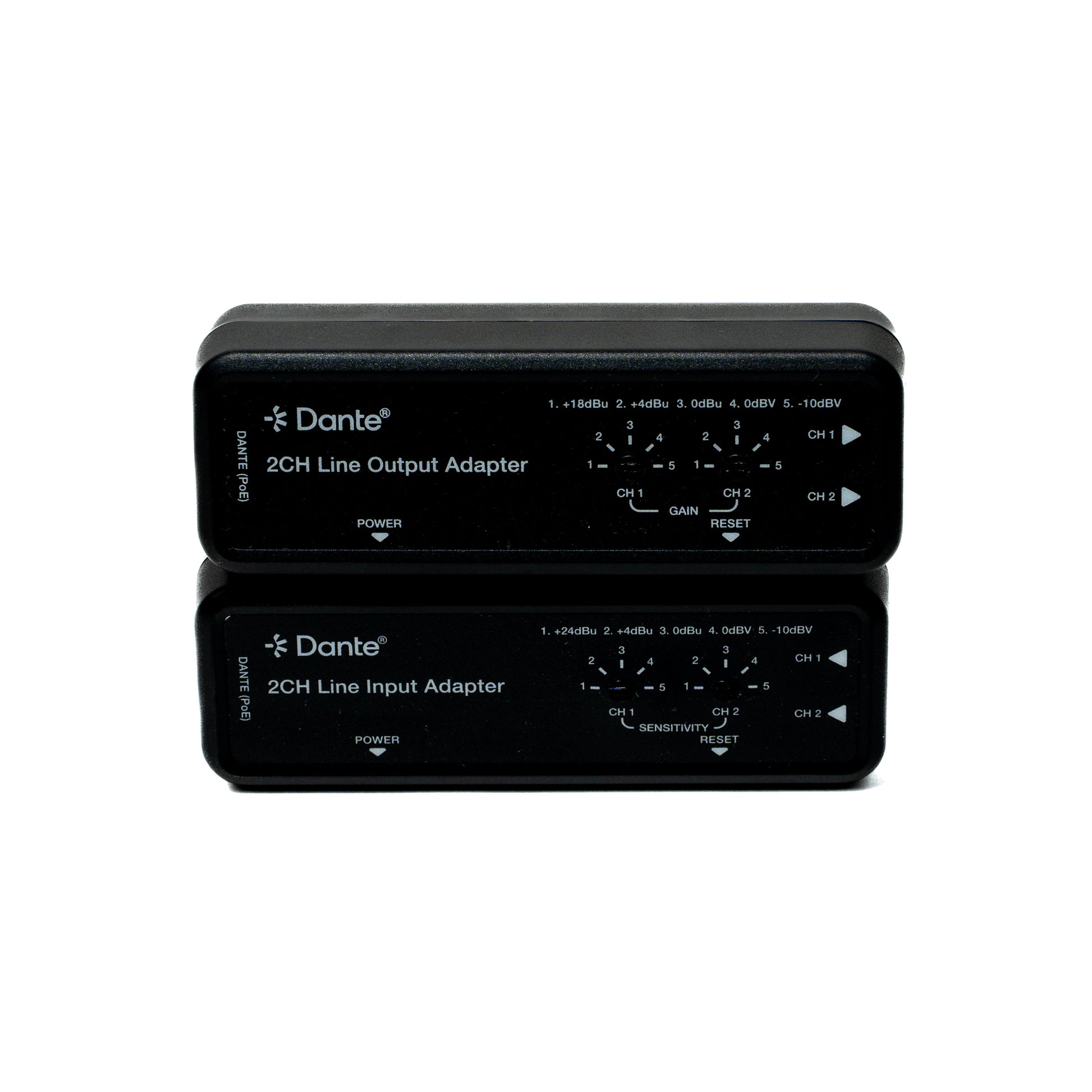

Dante® 2CH Line Input Adapter
Balanced / Unbalanced Analog Input → Dante® Network · 5-Level Sensitivity · PoE Powered · Dante® Ultimo
This Dante® 2CH Line Input Adapter is an audio transmitter based on the Dante® Ultimo 2x2 solution. It converts two-channel balanced/unbalanced analog audio into Dante® 2CH digital audio, then transmits the audio to the receiving end through network (Dante®). Analog audio input supports 5-level sensitivity adjustment. The adapter supports local USB-C port power supply and PoE function.
Features
Two-channel analog audio to Dante® 2CH digital audio
Balanced/unbalanced analog audio input
Dante® audio sampling rate supports 44.1/48/88.2/96KHz@24bit
Dante® audio delay supports 1/2/5ms (configurable)
Analog audio input supports 5-level sensitivity adjustment (+24dBu, +4dBu, 0dBu, 0dBv, -10dBv)
Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
Compact design for easy and flexible installation
Package Contents
11x Dante® 2CH Line Input Adapter
21x 6pin-3.5mm Phoenix Connector (male)
32x Hook & Loop
41x User Manual
Specifications
| Parameter | Detail |
|---|---|
| Technical | |
| Input | Two-channel balanced/unbalanced analog audio |
| Output | Dante® 2CH digital audio |
| Control Method | Dante® Controller |
| Video Network Bandwidth | 100M |
| Audio Formats | LINE IN [Analog audio input, Balanced/unbalanced 2CH, Max input level +24dBu] DANTE OUT [Digital audio output, PCM 2CH 44.1K–96KHz 16/24bit] |
| Transmission Distance | 328ft/100m (CAT6/6A/7) |
| Audio Latency | Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller) |
| Line Input Level (Maximum) | +24dBu (12.28Vrms) @balanced audio +18dBu (6.15Vrms) @unbalanced audio |
| Frequency Response | 20Hz to 20kHz (-/+0.5dB) |
| Audio S/N Ratio | >100dB@0dBu, 1kHz A-weighted |
| Input Impedance | 20k Ohm balanced 10k Ohm unbalanced |
| Dynamic Range | >100dB@0dBu, 1kHz A-weighted |
| Audio THD+N | <0.01% at +4dBu, 1KHz |
| Audio Output Sync Delay | <10ms |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input Port | 2x CH1/CH2 LINE IN [6pin-3.5mm phoenix connector] 1x POWER [USB-C power and firmware update port, 12-pin female] |
| Output Port | 1x DANTE [RJ45 connector, PoE] |
| Others | |
| Controls | 1x RESET button [System reboot button] 2x SENSITIVITY knob [5-level dip switch] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 115mm [W] x 40mm [D] x 28mm [H] |
| Weight | 94g |
| Power Supply | USB input: 5V/500mA PoE input: PoE IEEE802.3af Class 0 |
| Power Consumption | 2W (Max) |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Operating Humidity | 20% ~ 80% RH (relative humidity, non-condensing) |
| Storage Humidity | 10% ~ 90% RH (relative humidity, non-condensing) |
Operation Controls and Functions

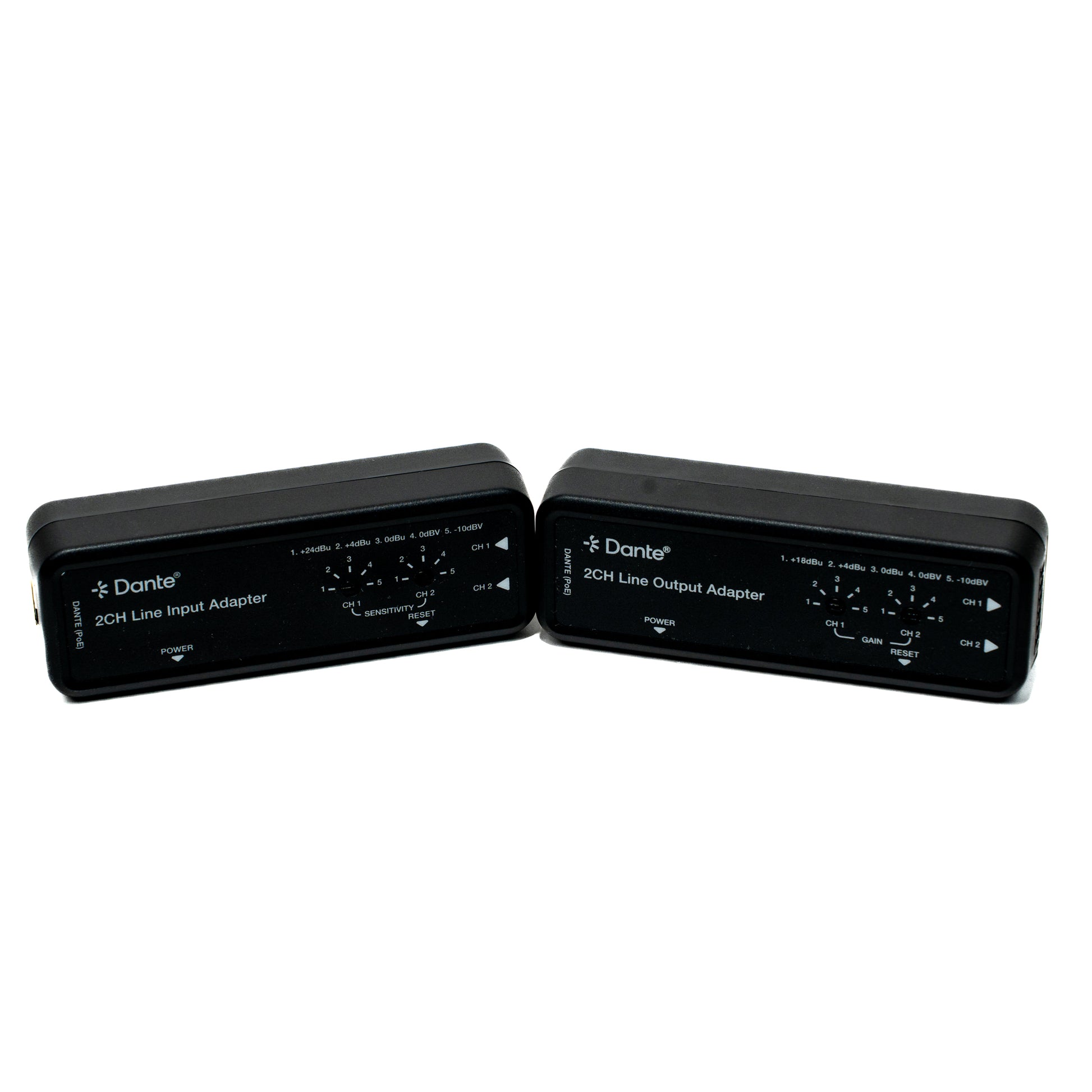

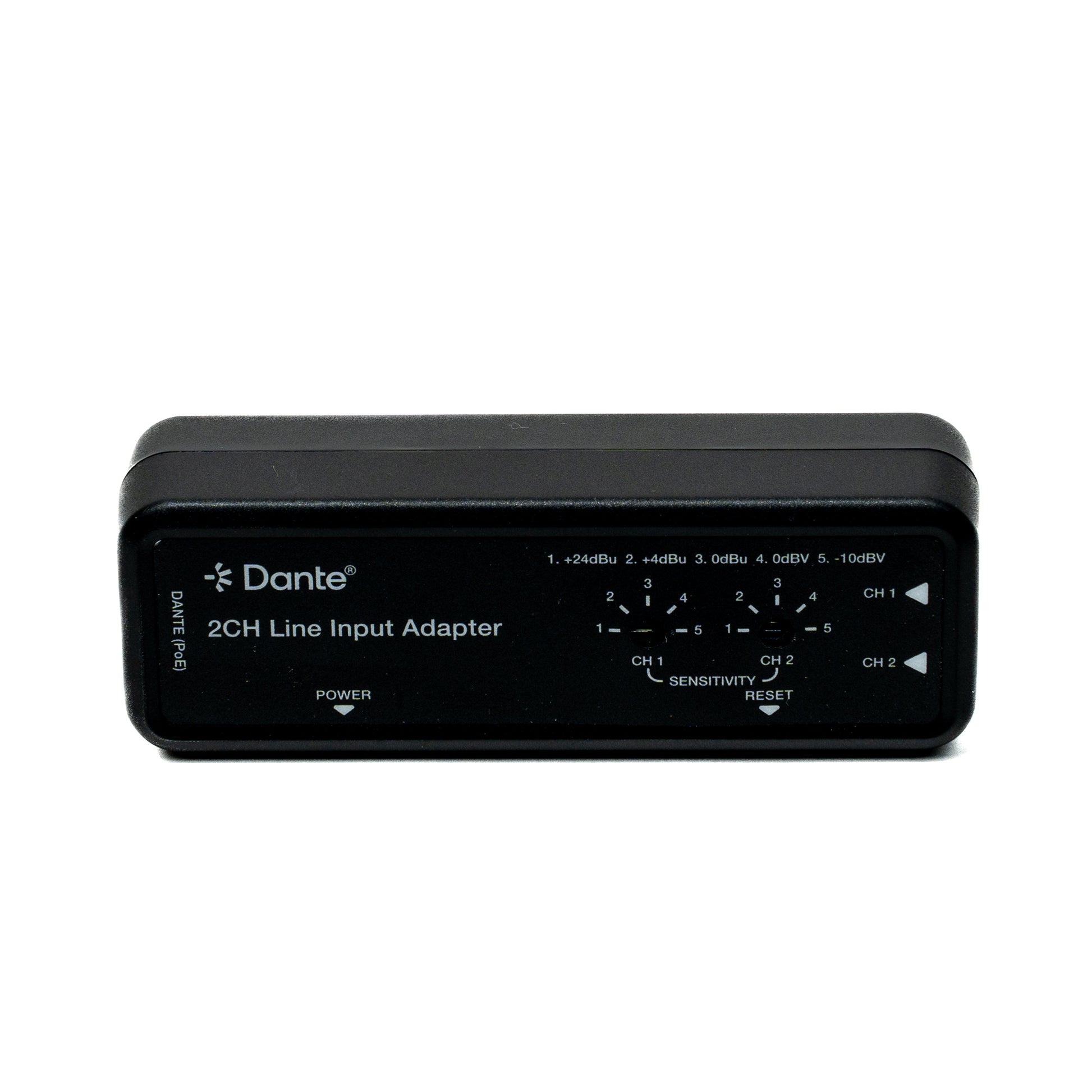

Device Overview — Controls & Ports

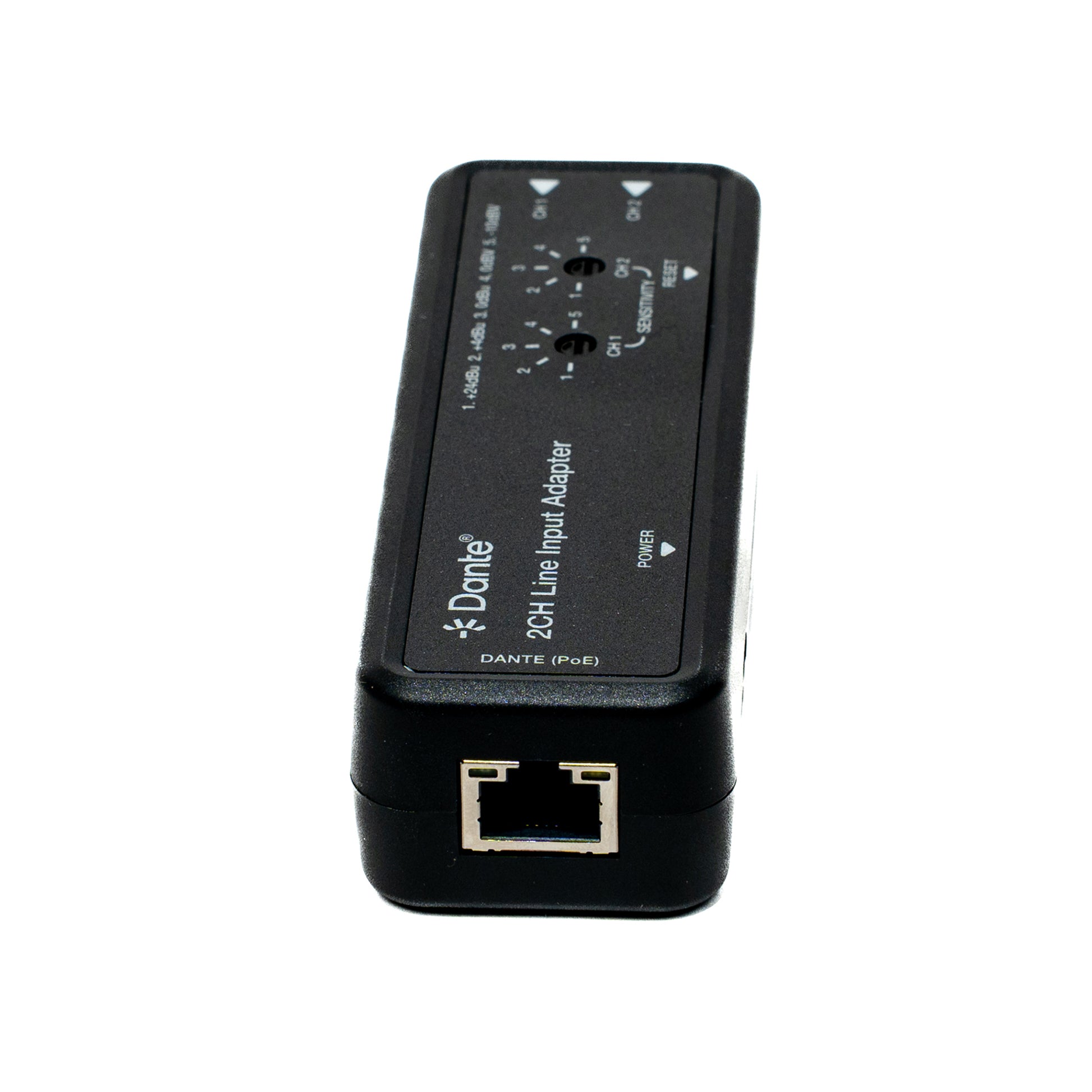

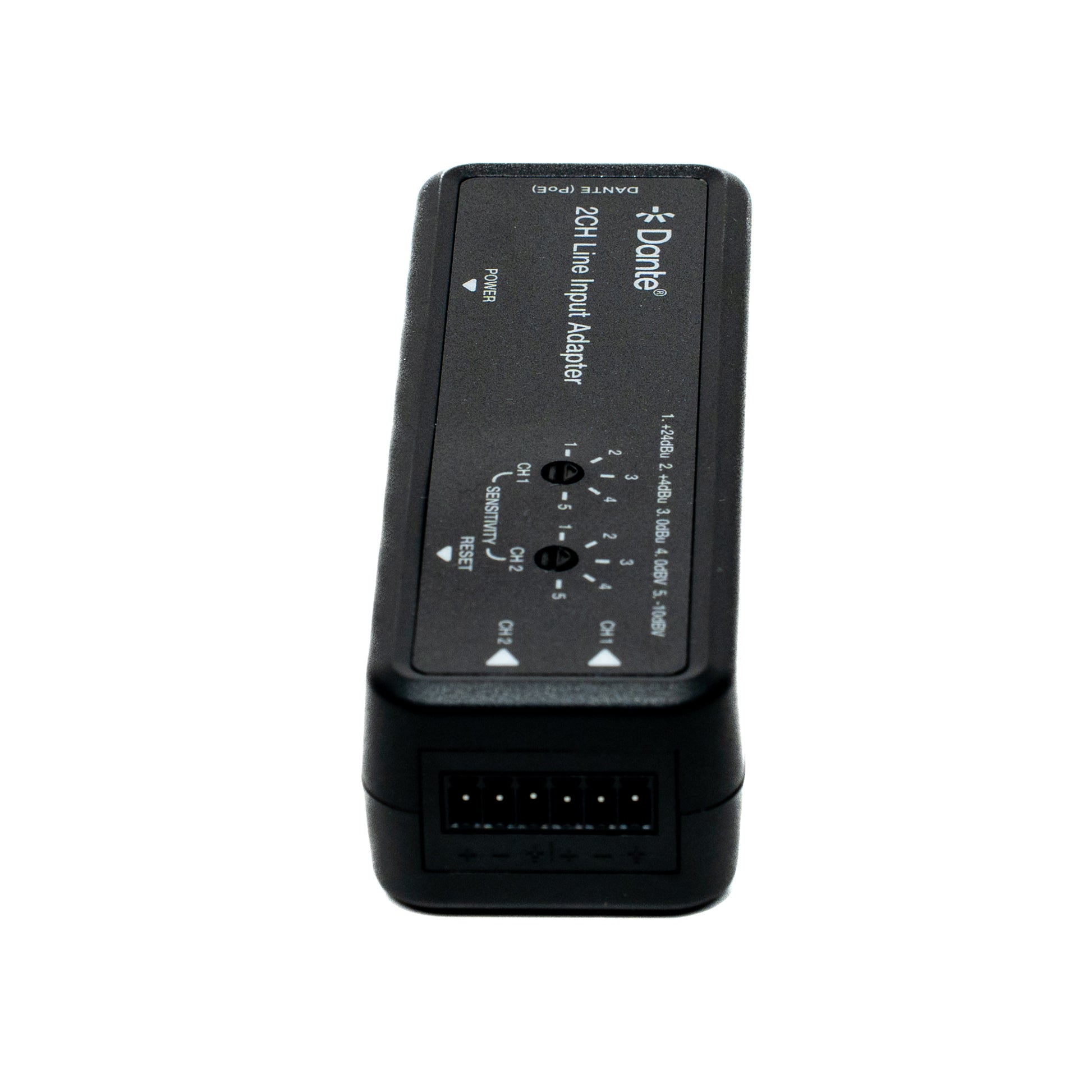

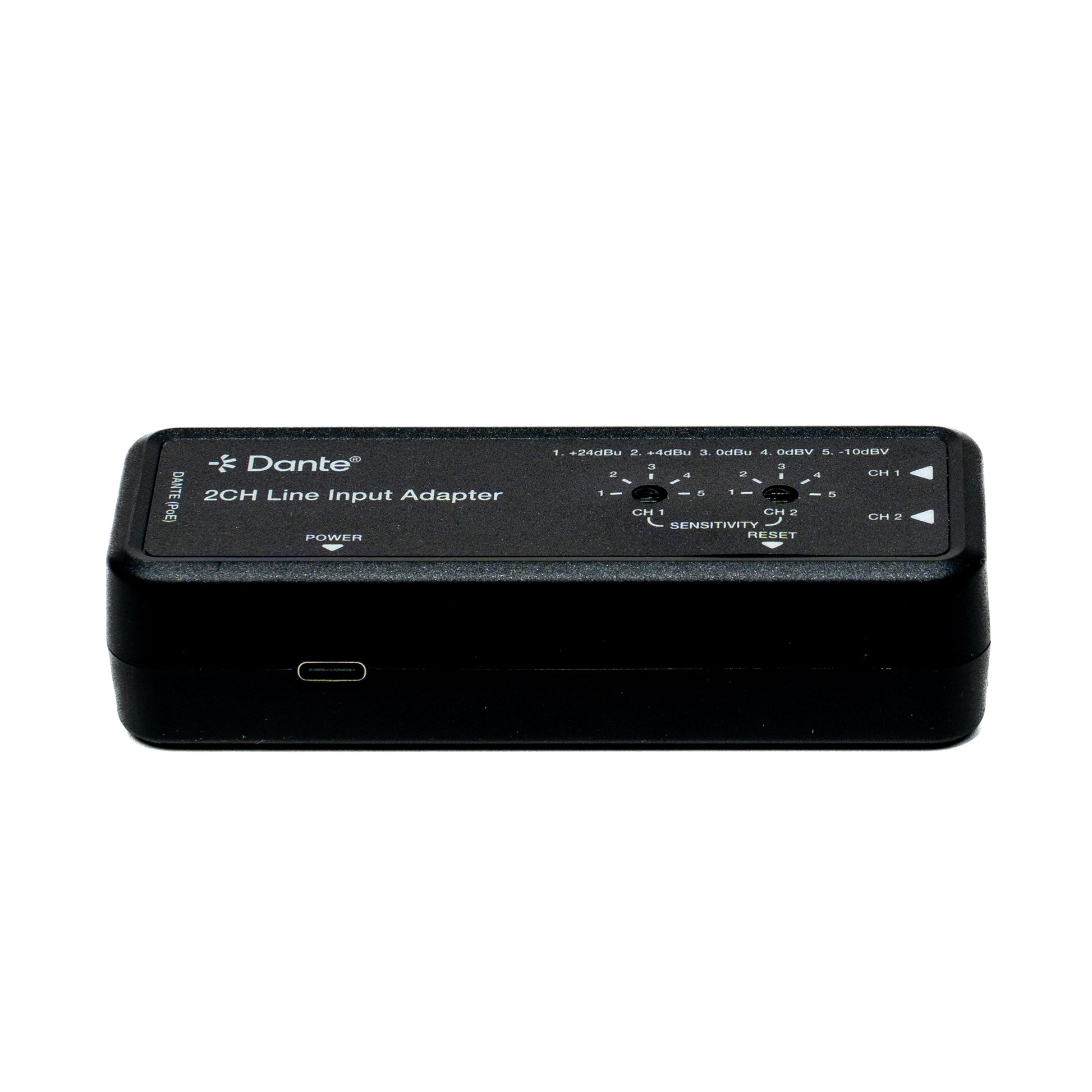

| No. | Name | Function Description |
|---|---|---|
| 1 | DANTE (PoE) port | Dante® digital audio output port, connected to the Network Switch through RJ45 line, supporting PD power supply. The green LINK LED is always on after normal connection. The yellow DATA LED is flashing when there is data transmission. |
| 2 | CH1 Knob | The 5-level sensitivity adjustment knob for analog audio input channel 1. The knob arrows indicate: 1. +24dBu, 2. +4dBu, 3. 0dBu, 4. 0dBv, 5. -10dBv. |
| 3 | CH2 Knob | The 5-level sensitivity adjustment knob for analog audio input channel 2. The knob arrows indicate: 1. +24dBu, 2. +4dBu, 3. 0dBu, 4. 0dBv, 5. -10dBv. |
| 4 | CH1 port | Balanced/unbalanced analog audio input port 1, connected to the analog audio source device. |
| 5 | CH2 port | Balanced/unbalanced analog audio input port 2, connected to the analog audio source device. |
| 6 | RESET button | Press this button to reboot the unit. |
| 7 | POWER port | USB-C port with following two functions: (1) USB-C 5V/500mA power input port. (2) Firmware update port. |
Note: The RESET button can only be used for device reboot, and device reset setting needs to be done through the Dante® Controller.
Wiring Configuration
The connection methods for balanced and unbalanced analog audio ports are as follows:
Unbalanced — RCA
Balanced — XLR
Application Example
How it works: The Dante® 2CH Line Input Adapter (this product) receives balanced/unbalanced analog audio from a Mixing Console, Media Player, or Laptop, converts it into Dante digital audio, and transmits it to the Network Switch (PoE). The switch distributes the Dante audio to a Dante® Amplifier and to a Dante® 2CH Line Output Adapter, which converts it back to analog audio for an Audio Amplifier driving Speakers.
