Model ST-NAUD2XDE · VER 1.1
Dante® 2CH XLR Output Adapter
Dante® Network → Balanced / Unbalanced XLR Analog Output · 5-Level Gain · PoE Powered · Dante® Ultimo
This Dante® 2CH XLR Output Adapter is an audio converter based on the Dante® Ultimo 2x2 solution. It converts Dante® 2CH digital audio into two-channel balanced/unbalanced XLR analog audio. Analog audio output supports 5-level gain adjustment. The adapter supports local USB-C port power supply and PoE function.
Features
Dante® 2CH digital audio to two-channel XLR analog audio
Balanced/unbalanced XLR analog audio output
Dante® audio sampling rate supports 44.1/48/88.2/96KHz@24bit
Dante® audio delay supports 1/2/5ms (configurable)
Analog audio output supports 5-level gain adjustment (+18dBu, +4dBu, 0dBu, 0dBv, -10dBv)
Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
Compact design for easy and flexible installation
Package Contents
11x Dante® 2CH XLR Output Adapter
22x Hook & Loop
31x User Manual
Specifications
| Parameter | Detail |
|---|---|
| Technical | |
| Input | Dante® 2CH digital audio |
| Output | Two-channel balanced/unbalanced XLR analog audio |
| Control Method | Dante® Controller |
| Video Network Bandwidth | 100M |
| Audio Formats | DANTE IN [Digital audio input, PCM 2CH 44.1K–96KHz 16/24bit] XLR OUT [Analog audio output, Balanced/unbalanced 2CH, Max input level +24dBu] |
| Transmission Distance | 328ft/100m (CAT6/6A/7) |
| Audio Latency | Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller) |
| Line Output Level (Maximum) | +18dBu (6.15Vrms) @balanced audio +12dBu (3.08Vrms) @unbalanced audio |
| Frequency Response | 20Hz to 20kHz (-/+0.5dB) |
| Audio S/N Ratio | >100dB@0dBu, 1kHz A-weighted |
| Output Impedance | 600 Ohm balanced 300 Ohm unbalanced |
| Dynamic Range | >100dB@0dBu, 1kHz A-weighted |
| Audio THD+N | <0.01% at +4dBu, 1KHz |
| Audio Output Sync Delay | <10ms |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input Port | 1x DANTE [RJ45 connector, PoE] 1x POWER [USB-C with USB power only, 12-pin female] |
| Output Port | 2x CH1/CH2 XLR OUT [XLR male plug, with 30cm cable] |
| Others | |
| Controls | 1x RESET button [System reboot button] 2x GAIN knob [5-level dip switch] |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 115mm [W] x 40mm [D] x 28mm [H] |
| Weight | 173g |
| Power Supply | USB input: 5V/500mA PoE input: PoE IEEE802.3af Class 0 |
| Power Consumption | 1.25W (Max) |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Operating Humidity | 20% ~ 80% RH (relative humidity, non-condensing) |
| Storage Humidity | 10% ~ 90% RH (relative humidity, non-condensing) |
Operation Controls and Functions

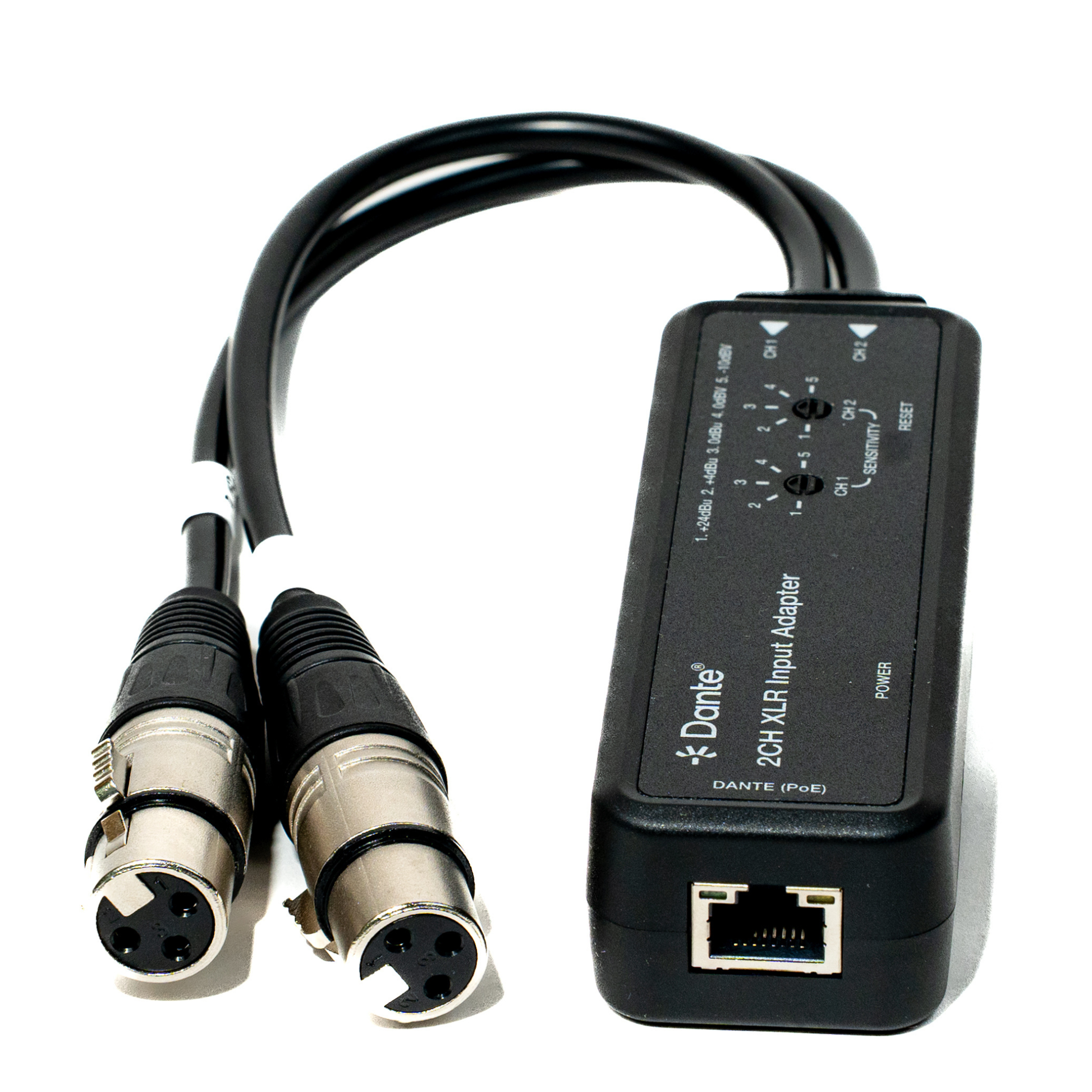

Device Overview — Controls & Ports
| No. | Name | Function Description |
|---|---|---|
| 1 | DANTE (PoE) port | Dante® digital audio input port, connected to the Network Switch through RJ45 line, supporting PD power supply. The green LINK LED is always on after normal connection. The yellow DATA LED is flashing when there is data transmission. |
| 2 | CH1 Knob | The 5-level gain adjustment knob for analog audio output channel 1. The knob arrows indicate: 1. +18dBu, 2. +4dBu, 3. 0dBu, 4. 0dBv, 5. -10dBv. |
| 3 | CH2 Knob | The 5-level gain adjustment knob for analog audio output channel 2. The knob arrows indicate: 1. +18dBu, 2. +4dBu, 3. 0dBu, 4. 0dBv, 5. -10dBv. |
| 4 | CH1 plug | Balanced/unbalanced XLR analog audio output plug 1, connected to the analog audio playback device. |
| 5 | CH2 plug | Balanced/unbalanced XLR analog audio output plug 2, connected to the analog audio playback device. |
| 6 | RESET button | Press this button to reboot the unit. |
| 7 | POWER port | USB-C 5V/500mA power input port. |
Note: The RESET button can only be used for device reboot, and device reset setting needs to be done through the Dante® Controller.
Application Example
How it works: A Dante® 2CH XLR Input Adapter receives XLR analog audio from a Mixing Console and a DVD or Blu-ray Player, converts it to Dante digital audio, and sends it to the Network Switch (PoE). The switch distributes the Dante audio to a Dante® Amplifier and to the Dante® 2CH XLR Output Adapter (this product). The Output Adapter converts the Dante audio back to balanced/unbalanced XLR analog audio via its two XLR plugs, driving an Audio Amplifier connected to Speakers.
Dante® is registered trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners.
